Product Description
The MUR420RLG is a high-performance, ultra-fast recovery power diode, designed for use in a variety of applications. This diode features a low leakage current and a free-wheeling diode configuration, making it an ideal choice for power electronics and switching applications.
Product Features
Ultra-Fast Recovery Time: The MUR420RLG has a recovery time of less than 500ns, making it suitable for high-frequency switching applications.
Low Leakage Current: The diode has a low leakage current of 5μA at 200V, reducing power consumption and increasing overall efficiency.
High Current Rating: The diode can handle a maximum forward current of 4A, making it suitable for high-power applications.
Halogen-Free and Lead-Free: The diode is manufactured with halogen-free and lead-free materials, ensuring compliance with environmental regulations.
Robust Construction: The diode is built with a DO-201AA, DO-27, or Axial package, providing a reliable and durable construction.
Product Applications
Primary Applications: The MUR420RLG is designed for use in ultra-fast recovery power applications, such as power supplies, motor drives, and switching power supplies.
Secondary Applications: The diode can also be used in other applications where high-speed switching and low power consumption are required, such as in audio and video equipment, medical devices, and industrial control systems.
Product Description
| Type | Description |
| ANSC PART# | ANSC- MUR420RLG |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Original |
| Series | SWITCHMODE™ |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) | 4A |
| Voltage - Forward (Vf) (Max) @ If | 890 mV @ 4 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 200 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | Axial |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Base Product Number | MUR420 |

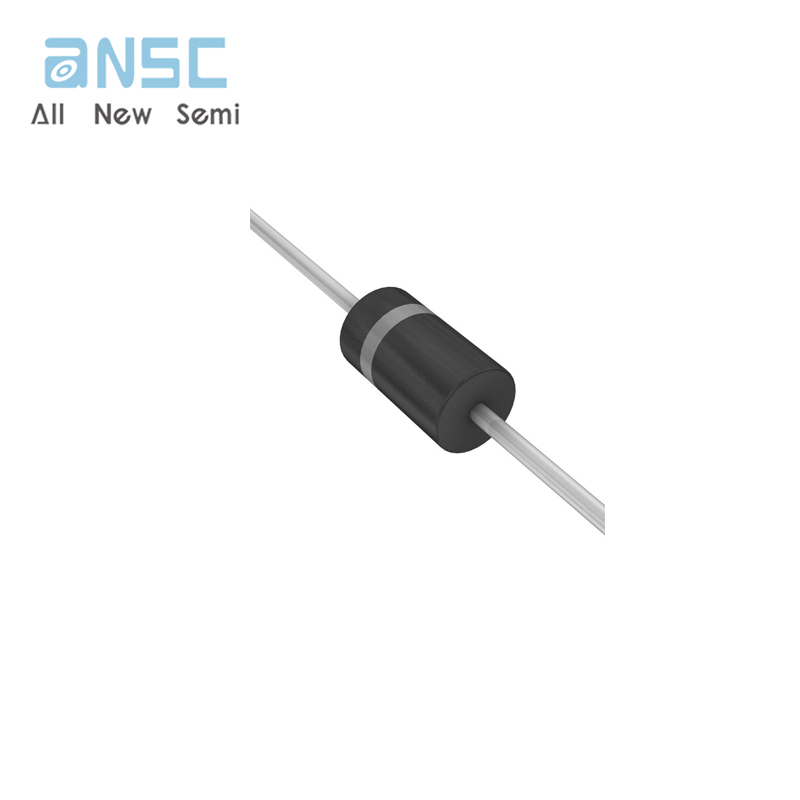

Actual image of the product

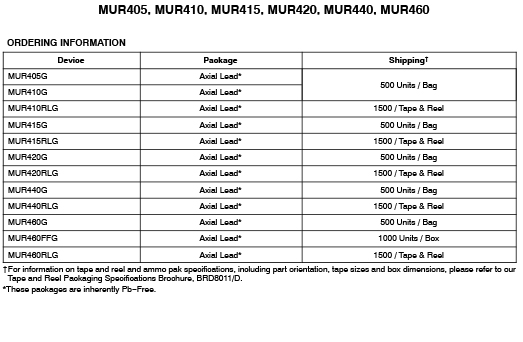

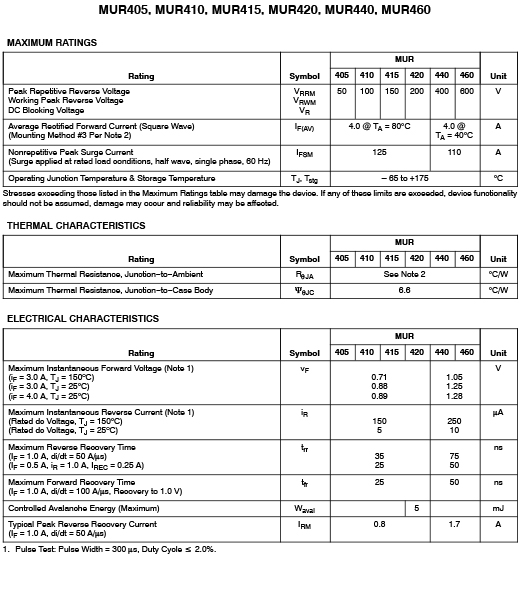

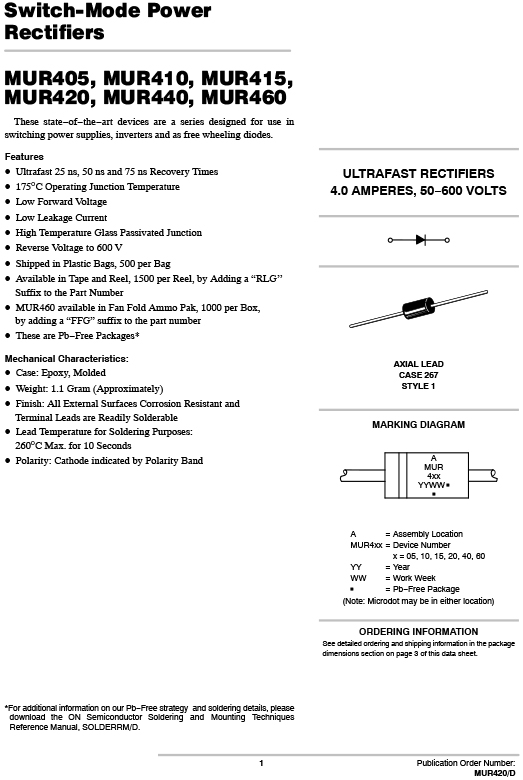

Product datasheet
For more information, please download
