Product Overview
The reverse voltage should be 200V.In this device, there is an average rectified current of 4A volts.Forward current may not exceed 4A.4A is its maximum current rating, which is the maximum current that a fuse can handle without deteriorating.This is the maximum amount of 125A surge current that can be used.As the data chart indicates, the peak reverse is 5μA.
Product Features
an average rectified current of 4A volts
a current rating of 4A
the peak reverse is 5μA
Product Applications
MUR420G applications of single-phase diode rectifier.
· DC motor control and drives
· Battery chargers
· Welders
· Power converters
· Reverse Polarity Protection
· Ultra High-Speed Switching
· Freewheeling
· Polarity Protection Diode
· Recirculating Diode
· Switching Diode
Product Description
| Type | Description |
| ANSC PART# | ANSC-MUR420G |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Original |
| Series | SWITCHMODE™ |
| Packaging | Bulk |
| Part Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) | 4A |
| Voltage - Forward (Vf) (Max) @ If | 890 mV @ 4 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 200 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | Axial |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Base Product Number | MUR420 |

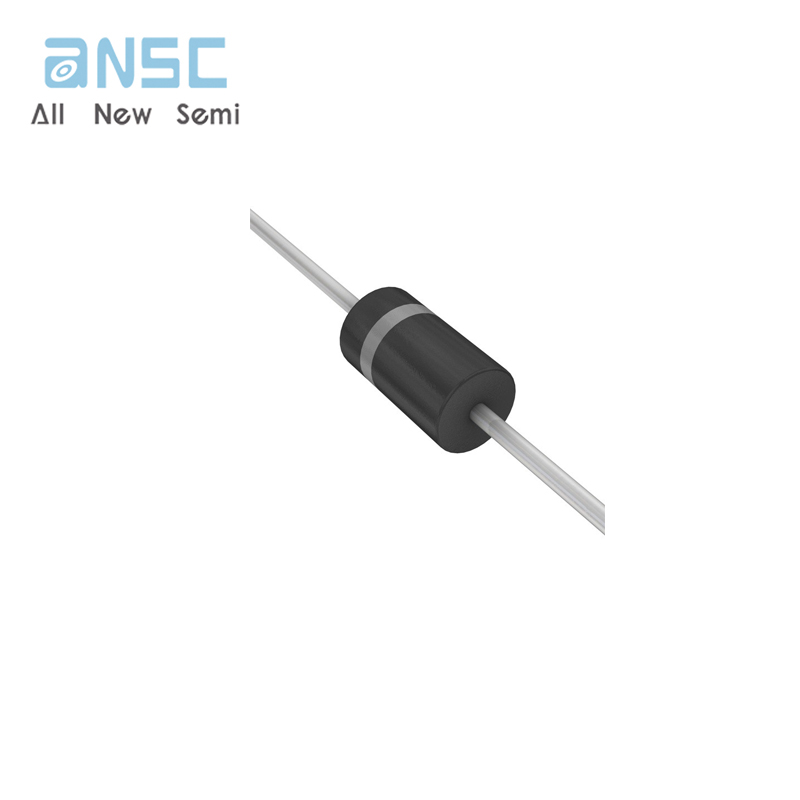

Actual image of the product

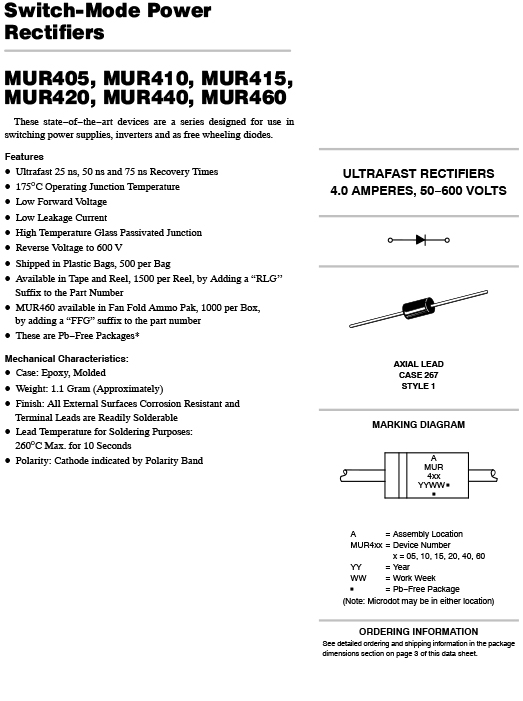

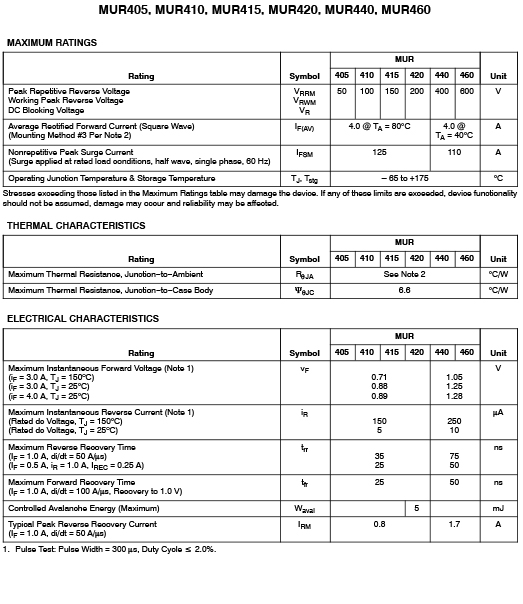

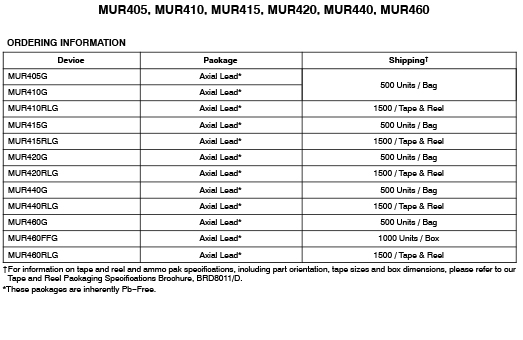

Product datasheet
For more information, please download
