Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - LTV-817S |
|
Category |
Isolators Optocouplers, Optoisolators Transistor, Photovoltaic Output Optoisolators |
|
Manufacturer |
/ |
|
Series |
LTV-8x7 |
|
Packaging |
Tube |
|
Part Status |
Active |
|
Number of Channels |
1 |
|
Voltage - Isolation |
5000Vrms |
|
Current Transfer Ratio (Min) |
50% @ 5mA |
|
Current Transfer Ratio (Max) |
600% @ 5mA |
|
Turn On / Turn Off Time (Typ) |
- |
|
Rise / Fall Time (Typ) |
4µs, 3µs |
|
Input Type |
DC |
|
Output Type |
Transistor |
|
Voltage - Output (Max) |
35V |
|
Current - Output / Channel |
50mA |
|
Voltage - Forward (Vf) (Typ) |
1.2V |
|
Current - DC Forward (If) (Max) |
50 mA |
|
Vce Saturation (Max) |
200mV |
|
Operating Temperature |
-55°C ~ 110°C |
|
Mounting Type |
Surface Mount |
|
Package / Case |
4-SMD, Gull Wing |
|
Supplier Device Package |
4-SMD |
|
Base Product Number |
LTV-817 |
Actual image of the product

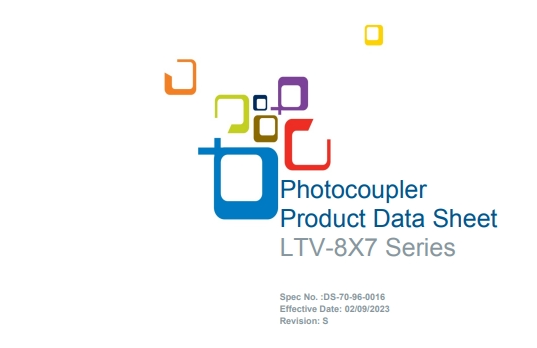

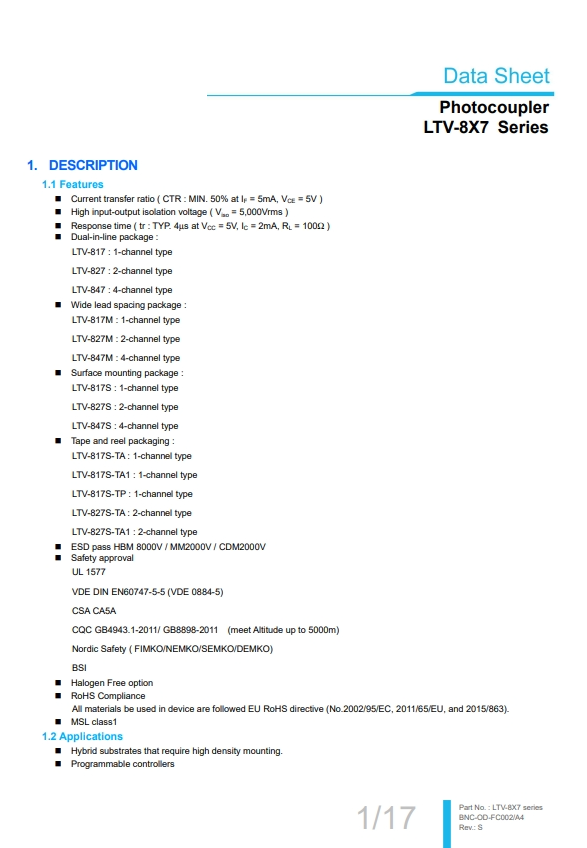

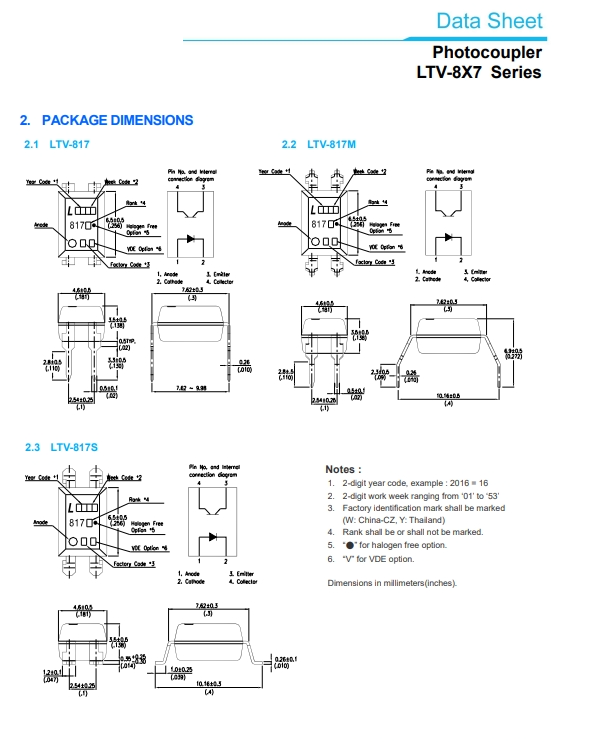

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
