Product Details
RF Amplifier Applications
Product Description
| Type | Description |
| Part# | 2sc2078 |
| Ihs Manufacturer | Original |
| Part Package Code | TO-220AB |
| Package Description | TO-220, 3 PIN |
| Pin Count | 3 |
| Reach Compliance Code | unknown |
| ECCN Code | EAR99 |
| Collector Current-Max (IC) | 3 A |
| Configuration | SINGLE |
| DC Current Gain-Min (hFE) | 25 |
| JEDEC-95 Code | TO-220AB |
| JESD-30 Code | R-PSFM-T3 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Temperature-Max | 150 °C |
| Operating Temperature-Min |
-55 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Polarity/Channel Type | NPN |
| Power Dissipation-Max (Abs) | 10 W |
| Qualification Status | Not Qualified |
| Surface Mount | NO |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Transistor Application | AMPLIFIER |
| Transistor Element Material | SILICON |
| Transition Frequency-Nom (fT) | 150 MHz |

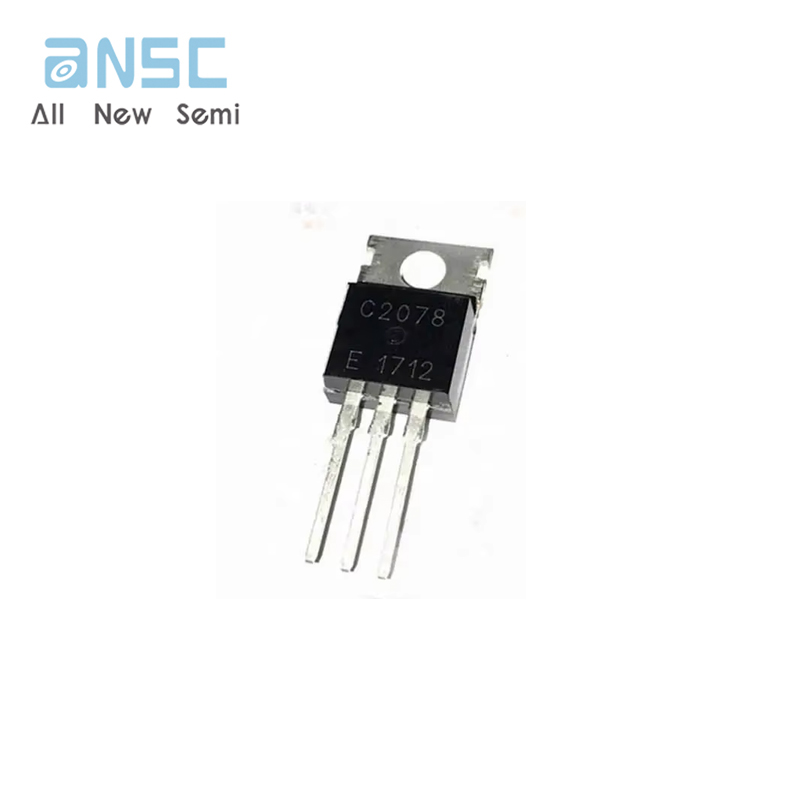

Actual image of the product
