Product Details
P-Channel 60-V (D-S) MOSFET
FEATURES
• Halogen-free
• TrenchFET® Power MOSFET
APPLICATIONS
• Load Switch
Product Description
| Type | Description |
| PART# | SUD50P04-09L |
| Ihs Manufacturer | Original |
| Package Description | TO-252, 3 PIN |
| Avalanche Energy Rating (Eas) | 125 mJ |
| Case Connection | DRAIN |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| DS Breakdown Voltage-Min | 40 V |
| Drain Current-Max (ID) | 50 A |
| Drain-source On Resistance-Max | 0.0094 Ω |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Mode | ENHANCEMENT MODE |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Polarity/Channel Type | P-CHANNEL |
| Pulsed Drain Current-Max (IDM) | 100 A |
| Qualification Status | Not Qualified |
| Surface Mount | YES |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Position | SINGLE |
| Transistor Element Material | SILICON |

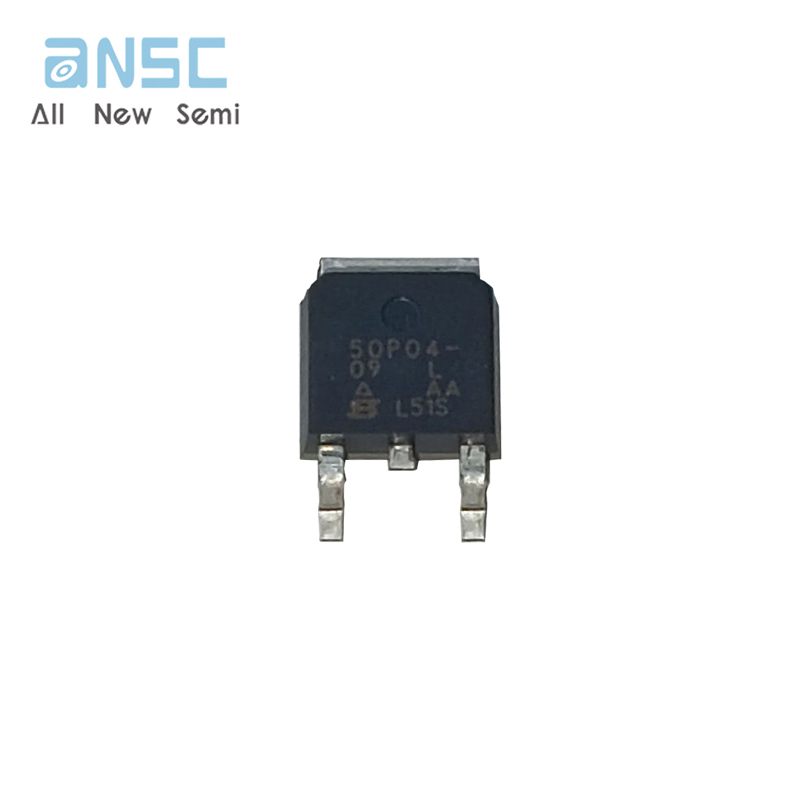

Actual image of the product
