Hot sale original G5NB-1A4-12VDC Electromechanical Relay SPST 21.6VDC (Coil) 3A (Contact) 30VDC (Contact) Random AC/DC Output_Electronic components & Bom

Product Description

Type#	Description
ANSC PART#	ANSC-G5NB-1A4-12VDC
Manufacturer	/
Body Breadth	7.2 mm
Body Height	15.3 mm
Body Length or Diameter	20.5 mm
Coil Operate Voltage(DC)	9 V
Coil Release Voltage(DC)	1.2 V
Coil Resistance	720 Ω
Coil Voltage(DC)-Max	21.6 V
Coil Voltage-Nom	12 V
Coil/Input Supply Type	DC
Contact (AC) Max Rating R Load	3A@250VAC
Contact Current(AC)-Max	3 A
Contact Current(DC)-Max	3 A
Contact (DC) Max Rating R Load	3A@30VDC
Contact Resistance	100 mΩ
Contact Voltage(AC)-Max	250 V
Contact Voltage(DC)-Max	30 V
Contact/Output Supply Type	AC/DC
Electrical Life	5000000 Cycle(s)
Input Switching Control Type	Random
Insulation Resistance	1000000000 Ω
Number of Terminals	4
Operate Time	10 ms
Operating Temperature-Max	70 °C
Operating Temperature-Min	-40 °C
Physical Dimension	20.5mm x 7.2mm x 15.3mm
Reference Standard	UL; CSA; VDE
Relay Form	1 FORM A
Relay Function	SPST
Release Time	10 ms
Terminal Length	0.002999745999491999 inch
Termination Type	SOLDER

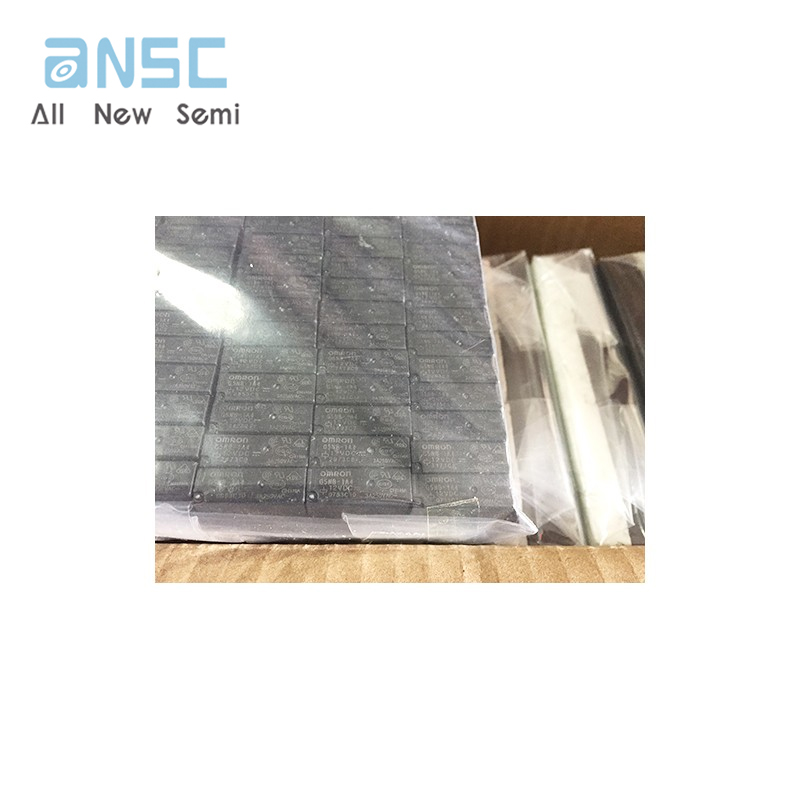

G5NB-1A4-12VDC

For more information, please download

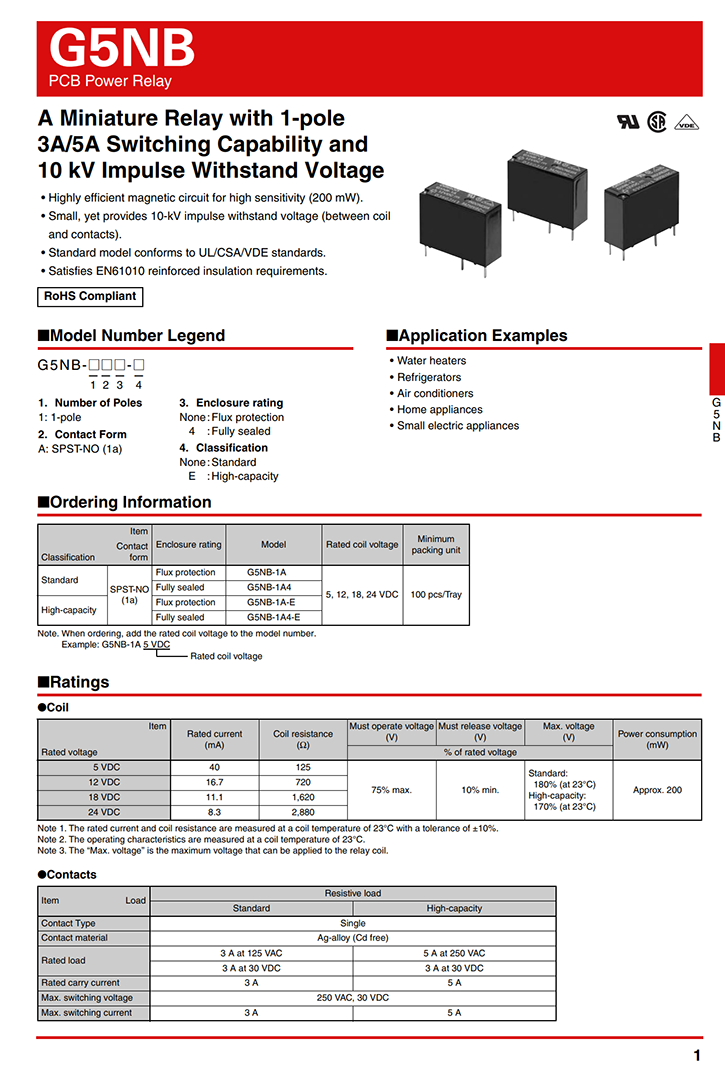

G5NB-1A4-12VDC详情1

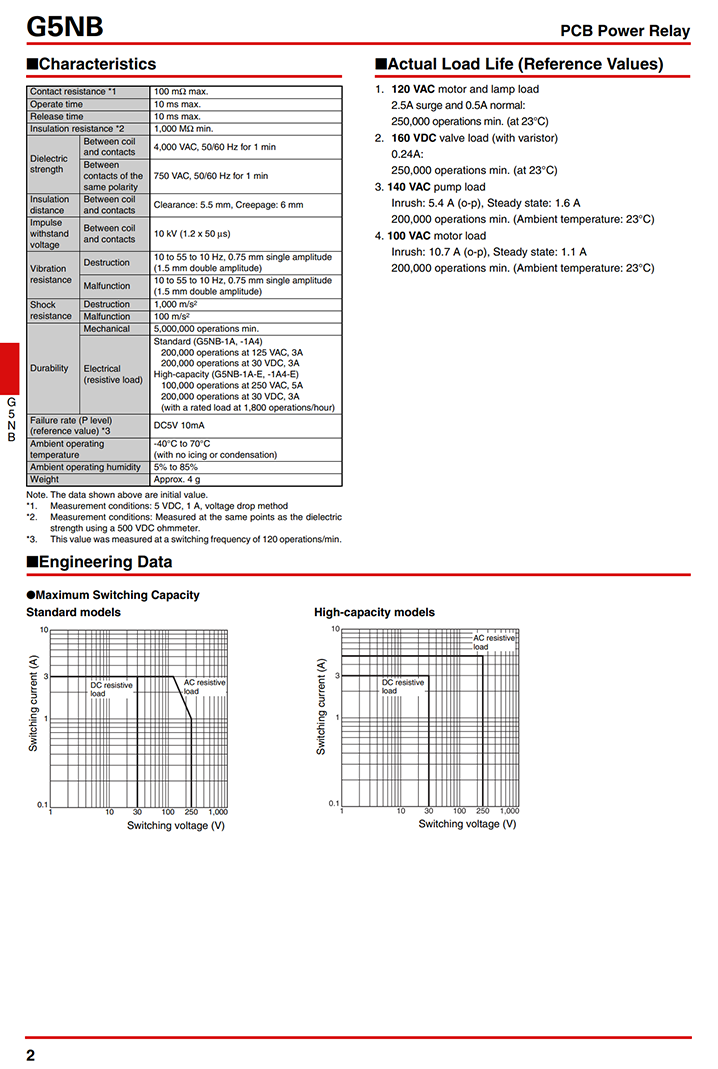

G5NB-1A4-12VDC详情2

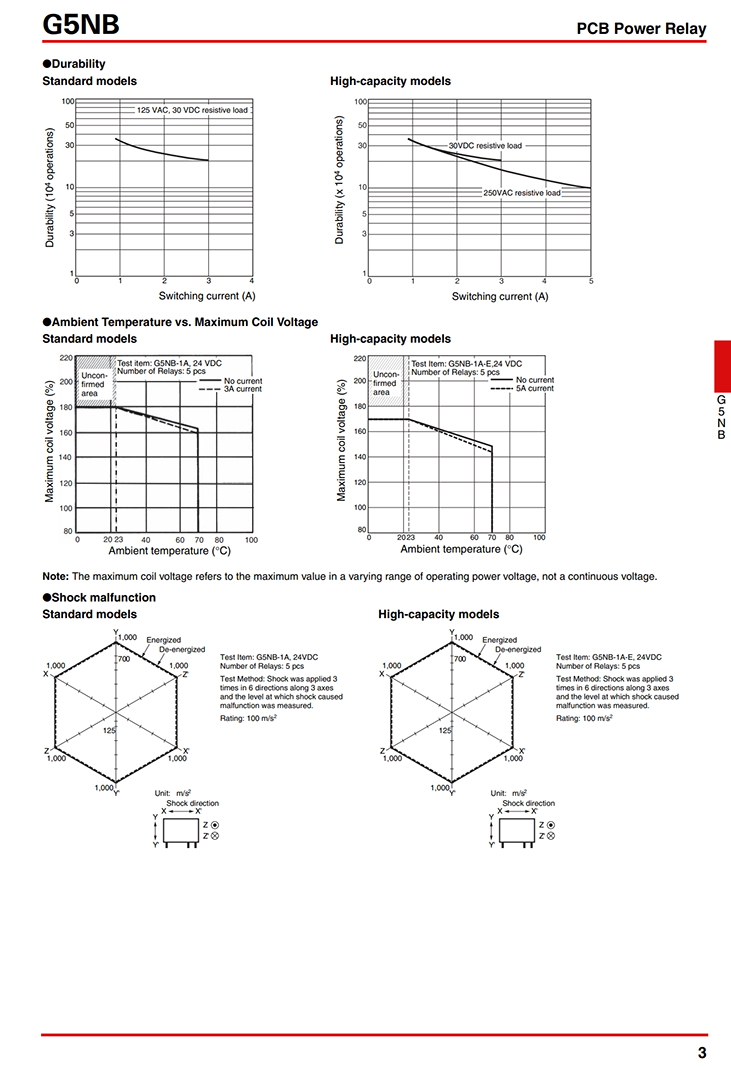

G5NB-1A4-12VDC详情3

详情8

关于包装

关于产品
