| 1. Description The UCC20225AQNPLTQ1 is a high-performance gate driver isolator designed , specifically tailored for automotive applications. This device is part of the UCC20225 series and is engineered to provide reliable and efficient isolation in harsh environments. With its robust built-in protections against transient and under-voltage conditions, this isolator ensures stable operation even in the most demanding scenarios. 2. Features Built-in Protections: Equipped with transient and under-voltage protections to safeguard against sudden voltage fluctuations and low supply conditions. High Common Mode Transient Immunity: Offers a minimum common mode transient immunity of 100V/ns, ensuring robust performance against electromagnetic interference (EMI). Buffer or Inverter Based Peripheral Driver: Utilizes a buffer or inverter based peripheral driver IC type, providing precise control over gate signals. Low Propagation Delay: Features a maximum propagation delay of 30ns in both rising and falling directions, ensuring fast switching times. Low Pulse Width Distortion: Maintains a maximum pulse width distortion of 6ns, ensuring clean and stable output signals. High Isolation Voltage: Provides a voltage isolation of up to 2500Vrms, making it suitable for high-voltage applications. Automotive Grade: Meets the stringent requirements of AEC-Q100 series, ensuring reliability in automotive systems. Primary Applications: Automotive Power Systems: Ideal for use in automotive power management systems where high reliability and isolation are critical. Industrial Control Systems: Suitable for industrial control systems requiring robust isolation and fast switching times. Secondary Applications: Medical Devices: Can be used in medical devices requiring high isolation voltage and reliable operation. Renewable Energy Systems: Useful in renewable energy systems where efficient and isolated power management is essential. |
Product Description
| Type | Description |
| PART# | UCC20225AQNPLTQ1 |
| Category | Isolators |
| Isolators - Gate Drivers | |
| Mfr | / |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Obsolete |
| Technology | Capacitive Coupling |
| Number of Channels | 2 |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 100V/ns |
| Propagation Delay tpLH / tpHL (Max) | 30ns, 30ns |
| Pulse Width Distortion (Max) | 6ns |
| Rise / Fall Time (Typ) | 6ns, 7ns |
| Current - Output High, Low | 4A, 6A |
| Current - Peak Output | 4A, 6A |
| Voltage - Forward (Vf) (Typ) | - |
| Voltage - Output Supply | 6.5V ~ 25V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 13-VFLGA |
| Supplier Device Package | 13-VLGA (5x5) |
| Approval Agency | CQC, UL, VDE |
| Base Product Number | UCC20225 |

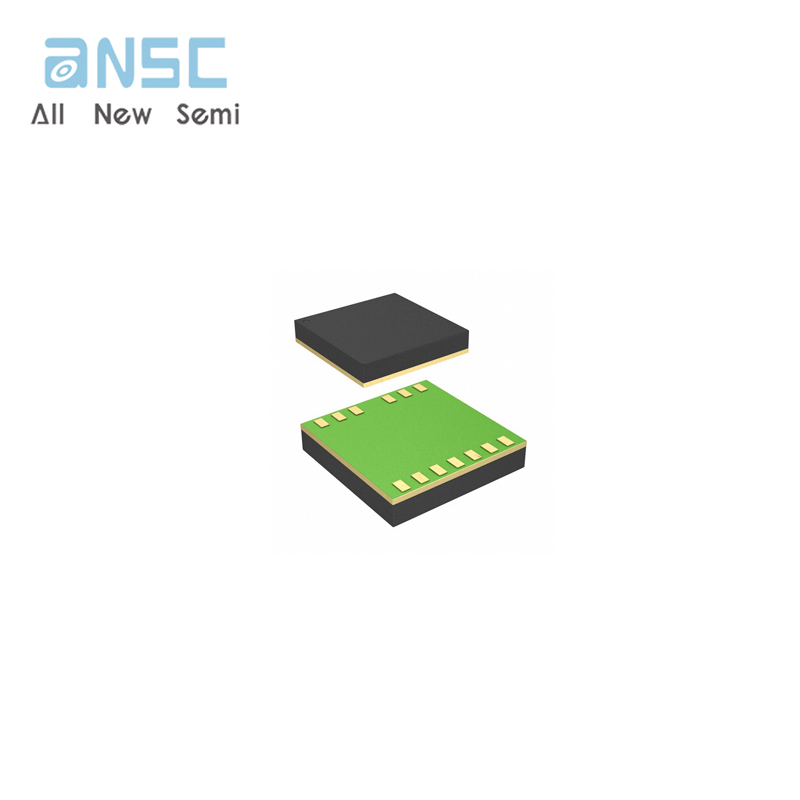

Product Photos
