Brief Description: The PDTA124XMB,315 is a PNP pre-biased bipolar junction transistor (BJT) . It is a single-element, surface-mount device with a 3-XFDFN package and a built-in bias resistance ratio of 2.1. The transistor is designed for switching applications and features a high transition frequency of 180MHz. Features: PNP pre-biased bipolar junction transistor (BJT) Built-in bias resistance ratio of 2.1 3-XFDFN package with surface-mount technology High transition frequency of 180MHz High current gain (hFE) of 80 at 5mA and 5V High power dissipation of 250mW High operating temperature range of -65°C to 150°C ROHS3 compliant Radiation hardening not required Application Grade: The PDTA124XMB,315 is designed for high-frequency switching applications, making it suitable for use in: Power amplifiers Switching power supplies High-speed data transmission systems Automotive electronics Industrial control systems Applications: The PDTA124XMB,315 can be used in a variety of applications, including: Switching power supplies for consumer electronics High-speed data transmission systems for telecommunications Automotive electronics, such as engine management systems and anti-lock braking systems Industrial control systems, such as motor control and process control Medical devices, such as defibrillators and pacemakers Overall, the PDTA124XMB,315 is a high-performance, pre-biased bipolar junction transistor (BJT) designed for high-frequency switching applications. Its high transition frequency, high power dissipation, and high operating temperature range make it suitable for use in a wide range of applications. |
Product Description
| Type# | Description |
| PART# | PDTA124XMB,315 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single, Pre-Biased Bipolar Transistors | |
| Manufacturer |
/ |
| Series | - |
| Packaging | Bulk |
| Part Status | Active |
| Transistor Type | PNP - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Resistors Included | R1 and R2 |
| Resistor - Base (R1) | 22 kOhms |
| Resistor - Emitter Base (R2) | 47 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 1µA |
| Frequency - Transition | 180 MHz |
| Power - Max | 250 mW |
| Mounting Type | Surface Mount |
| Package / Case | SC-101, SOT-883 |
| Supplier Device Package | DFN1006B-3 |
| Base Product Number | PDTA124 |

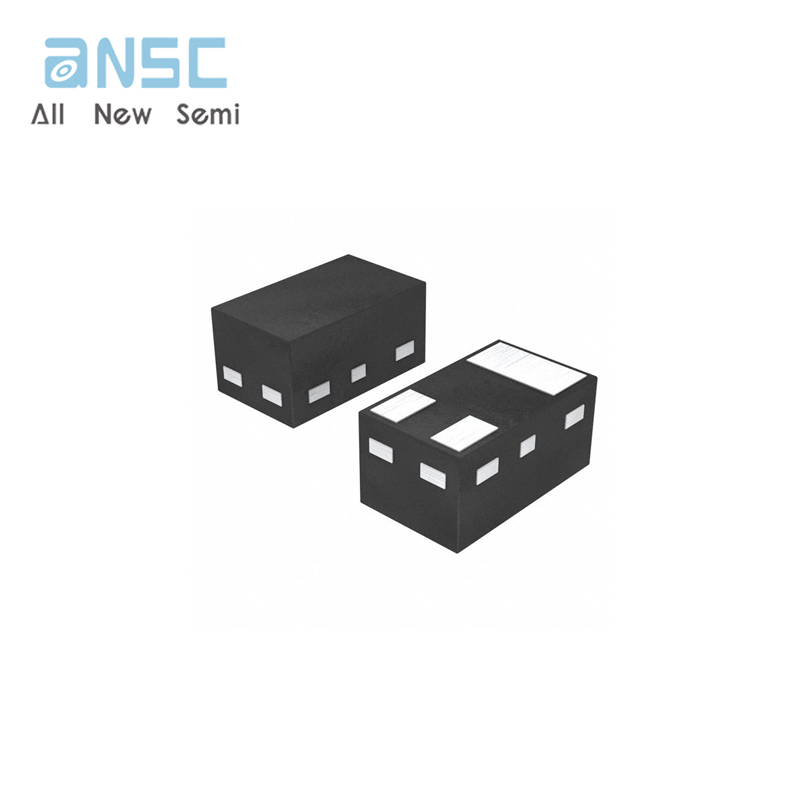

Actual image of the product
