Product Details
|
General description 400 W unidirectional Transient Voltage Suppressor (TVS) in a SOD123W small and flat lead low-profile Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection. Features ■ Rated peak pulse power: PPPM = 400 W (350W for 3V3) ■ Small plastic package suitable for surface-mounted design ■ Reverse standoff voltage range: VRWM = 3.3 V to 64 V ■ Very low package height: 1 mm ■ Reverse current: IRM = 0.001 µA ■ AEC-Q101 qualified Applications ■ Power supply protection ■ Automotive application ■ Industrial application ■ Power management |
Product Description
| Type | Description |
| PART# | 10VS1 |
| Category | Filters |
| Power Line Filter Modules | |
| Manufacturer | Original |
| Series | S |
| Packaging | Bulk |
| Part Status | Active |
| Filter Type | Single Phase |
| Configuration | Two Stage |
| Voltage - Rated DC | - |
| Voltage - Rated AC | 120V, 250V |
| Current | 10 A |
| Frequency - Operating | 50/60Hz |
| Applications | General Purpose |
| Approval Agency | CSA, UR, VDE |
| Operating Temperature |
-10°C ~ 40°C |
| Mounting Type | Chassis Mount |
| Termination Style | Quick Connect |
| Inductance | 1.2mH |

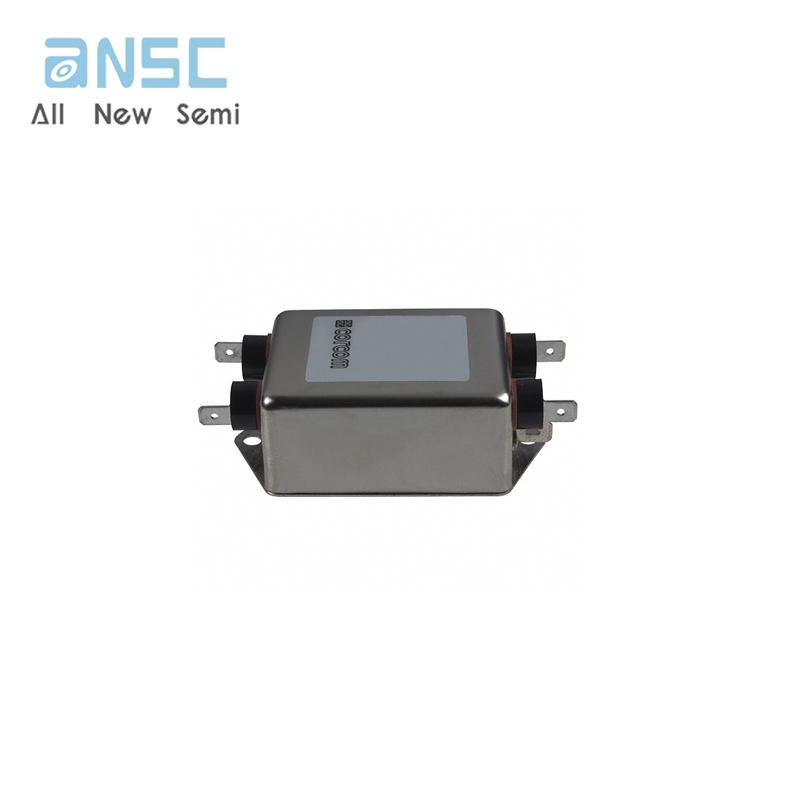

Actual image of the product
