Product Description
Description: The L3G4200D is a MEMS (Micro-Electro-Mechanical System) gyroscope designed for motion sensing applications. It is capable of measuring angular rate in three axes (pitch, roll, and yaw) with a range of 250/s, 500/s, and 2000/s. The device is available in a LGA-16 package and operates on a voltage range of 2.4 V to 3.6 V.
Product Features
• Measures angular rate in three axes (pitch, roll, and yaw)
• Range of 250/s, 500/s, and 2000/s
• LGA-16 package
• Operates on a voltage range of 2.4 V to 3.6 V
Product Applications
• Motion sensing applications
• Robotics
• Automotive
• Industrial automation
• Aerospace
Product Description
| Type | Description |
| ANSC PART# | ANSC - L3G4200D |
| Category | Sensors, Transducers |
| Motion Sensors | |
| Gyroscopes | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tray |
| Part Status | Obsolete |
| Type | Digital |
| Axis | X (Pitch), Y (Roll), Z (Yaw) |
| Range °/s | ±250, 500, 2000 |
| Sensitivity (LSB/(°/s)) | 8.75 ~ 70 |
| Sensitivity (mV/°/s) | - |
| Bandwidth | 100Hz ~ 800Hz |
| Output Type | I2C, SPI |
| Voltage - Supply | 2.4V ~ 3.6V |
| Current - Supply | 6.1 mA |
| Features | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 16-TFLGA |
| Base Product Number | L3G4200 |

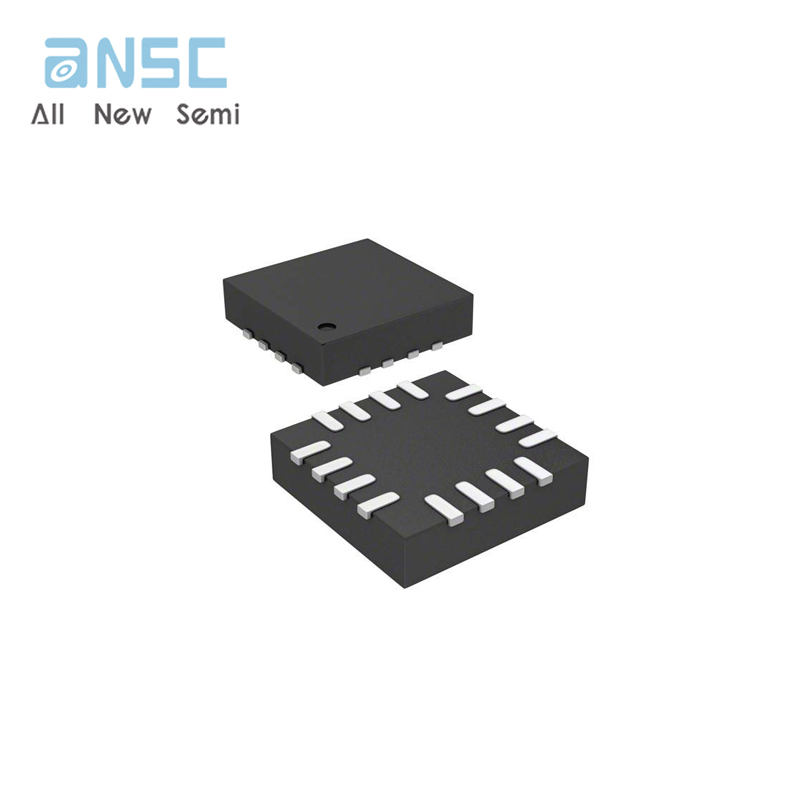

Actual image of the product
