Product Details
STAND-OFF VOLTAGE - 5.0 to 350 Volts
POWER DISSIPATION - 600 WATTS
FEATURES
• For surface mounted applications
• Reliable low cost construction utilizing molded plastic technique
• Plastic material has UL flammability classification 94V-O
• Typical IR less than 1uA above 10V
• Fast response time: typically less than 1.0ns for Uni-direction,less than 5.0ns for Bi-direction,
form 0 Volts to BV min
Product Description
| Type | Description |
| ANSC PART# | ANSC-SMBJ150A |
| Ihs Manufacturer | Original |
| Part Package Code | DO-214AA |
| Pin Count | 2 |
| Samacsys Manufacturer | / |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY |
| Breakdown Voltage-Max | 185 V |
| Breakdown Voltage-Min | 167 V |
| Breakdown Voltage-Nom | 176 V |
| Clamping Voltage-Max | 243 V |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE |
| Forward Voltage-Max (VF) | 3.5 V |
| JEDEC-95 Code | DO-214AA |
| JESD-30 Code | R-PDSO-C2 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 1 |
| Non-rep Peak Rev Power Dis-Max | 600 W |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 150 °C |
| Operating Temperature-Min | -65 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity | UNIDIRECTIONAL |
| Power Dissipation-Max | 5 W |
| Qualification Status | Not Qualified |
| Reference Standard | IEC-61000-4-2, 4-4; UL RECOGNIZED |
| Rep Pk Reverse Voltage-Max | 150 V |
| Reverse Current-Max | 1 µA |
| Reverse Test Voltage | 150 V |
| Surface Mount | YES |
| Technology | AVALANCHE |
| Terminal Finish | MATTE TIN |
| Terminal Form | C BEND |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 40 |

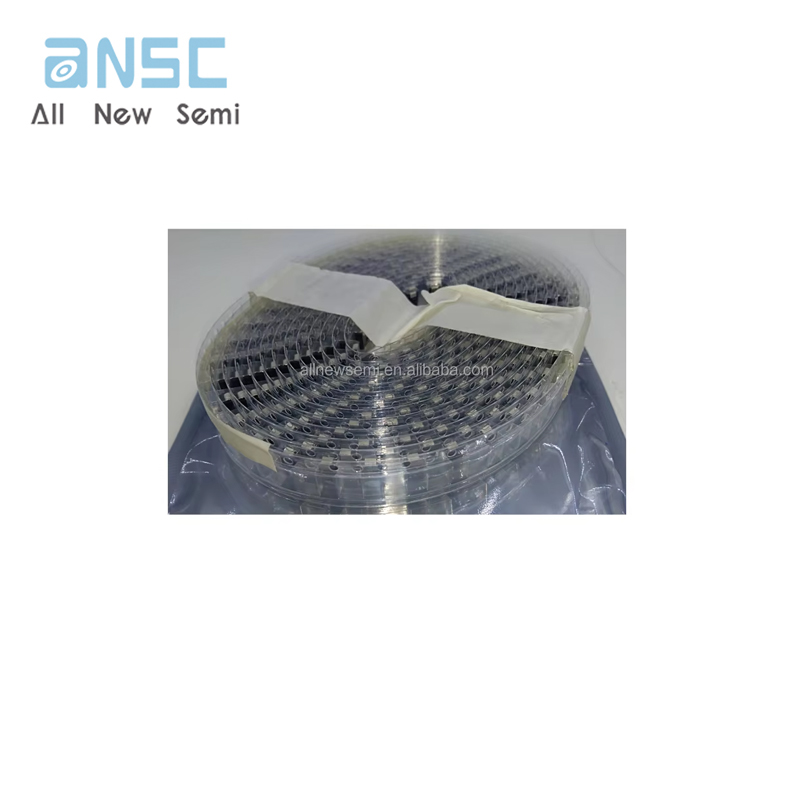

Actual image of the product

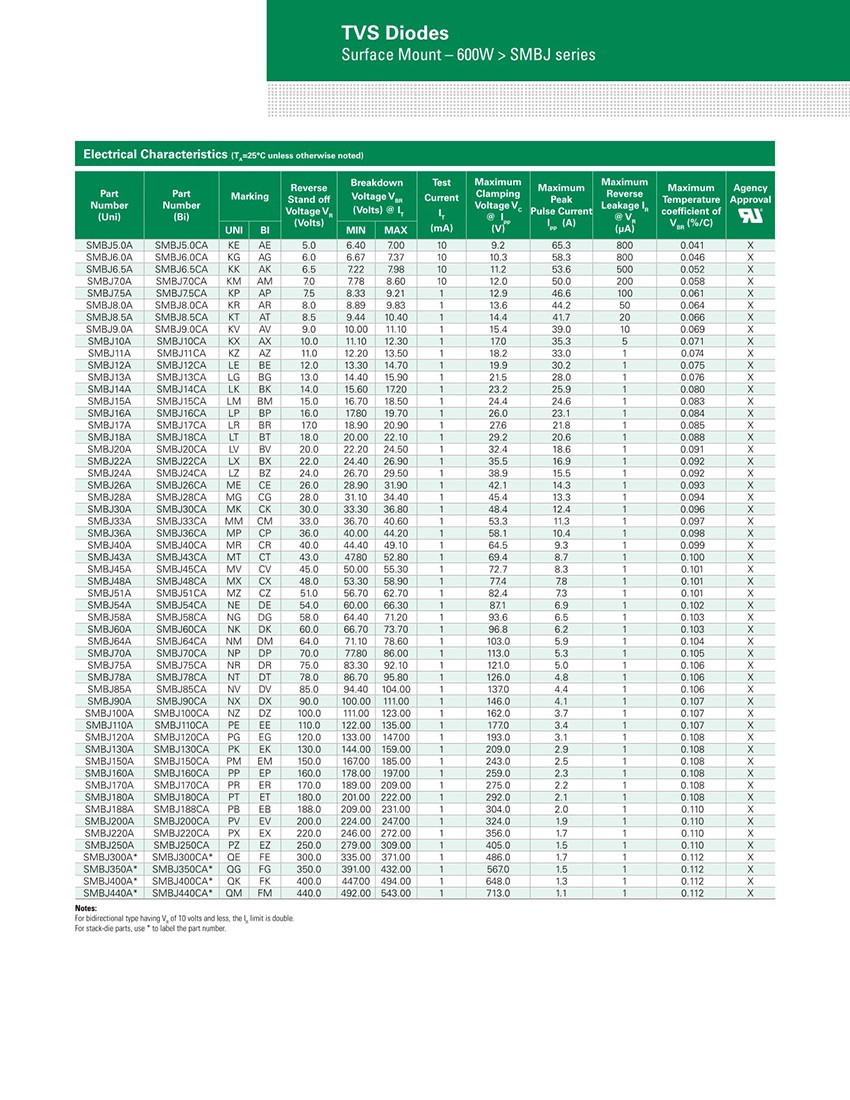

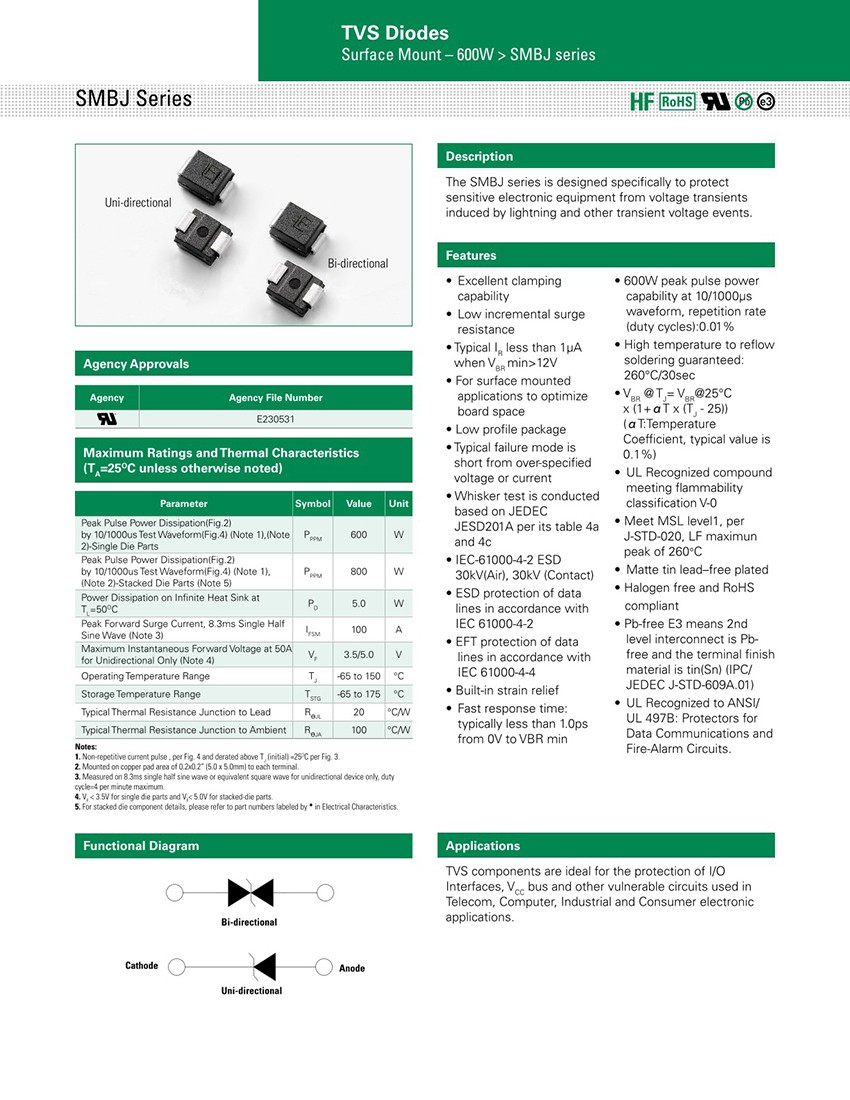

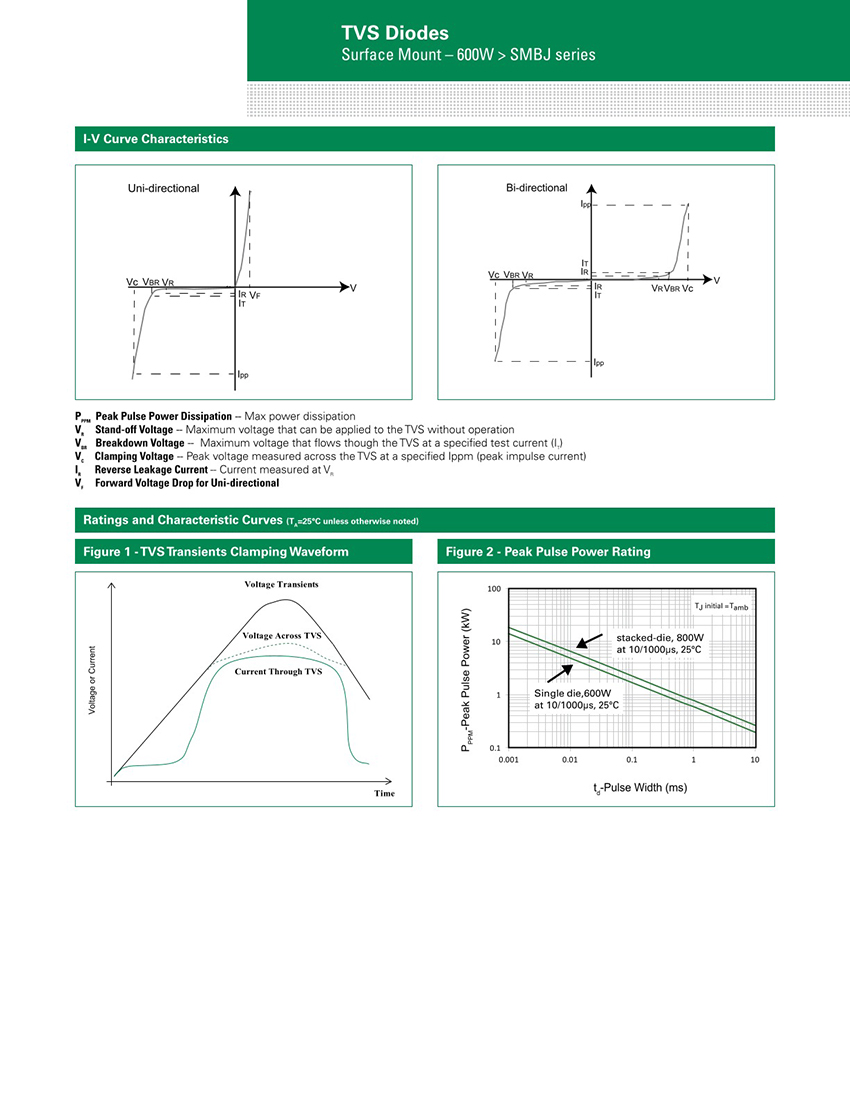

Product datasheet
For more information, please download
