Product Description 7106D/TRG - Aavid Thermal Division The 7106D/TRG is a top-mount heat sink designed by Aavid, the Thermal Division . This heat sink is specifically engineered for surface mount applications, making it an ideal solution for thermal management in electronic devices. With its compact rectangular shape and multiple fins, the 7106D/TRG effectively dissipates heat from integrated circuits (ICs), ensuring reliable operation under various environmental conditions. Features Material and Finish: The heat sink is made from high-quality copper material and features a tin finish, ensuring excellent thermal conductivity and durability. Dimensions: Measuring 0.590 inches (15 mm) in length, 0.375 inches (9.52 mm) in height off base, and 1.020 inches (25.91 mm) in width, this heat sink provides a compact yet efficient thermal solution. Thermal Performance: With a natural thermal resistance of 15 °C/W and a thermal resistance of 5.00 °C/W at forced air flow (400 LFM), the 7106D/TRG effectively manages heat dissipation. Lead-Free and RoHS Compliant: Ensuring compliance with lead-free standards and RoHS regulations, this product aligns with environmental safety requirements. Mounting Method: Designed for surface mount applications using an SMD pad attachment method, it simplifies integration into electronic assemblies. Packaging: Available in tape and reel packaging for easy handling and automated assembly processes.
Primary Applications: 1. Integrated Circuits (ICs): The 7106D/TRG is primarily used to cool ICs in various electronic devices such as microprocessors, power management ICs, and other high-power components. 2. Electronic Devices: It is also suitable for cooling components in electronic devices like smartphones, laptops, and other consumer electronics. Secondary Applications: 1. Automotive Electronics: Due to its compact size and high thermal efficiency, it can be used in automotive systems such as engine control units or infotainment systems. 2. Industrial Controls: It can be applied in industrial control systems where reliable operation under varying temperatures is crucial. |
Product Description
| Type | Description |
| Part# | 7106D/TRG |
| Category | Fans, Blowers, Thermal Management |
| Thermal | |
| Heat Sinks | |
| Mfr | / |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Type | Top Mount |
| Package Cooled | TO-263 (D²Pak), PowerSO-10 (MO-184), SO-10 |
| Attachment Method | SMD Pad |
| Shape | Rectangular, Fins |
| Length | 0.591" (15.00mm) |
| Width | 1.020" (25.91mm) |
| Diameter | - |
| Fin Height | 0.375" (9.52mm) |
| Power Dissipation @ Temperature Rise | 2.0W @ 40°C |
| Thermal Resistance @ Forced Air Flow | 5.00°C/W @ 400 LFM |
| Thermal Resistance @ Natural | - |
| Material | Copper |
| Material Finish | Tin |
| Base Product Number | 7106 |

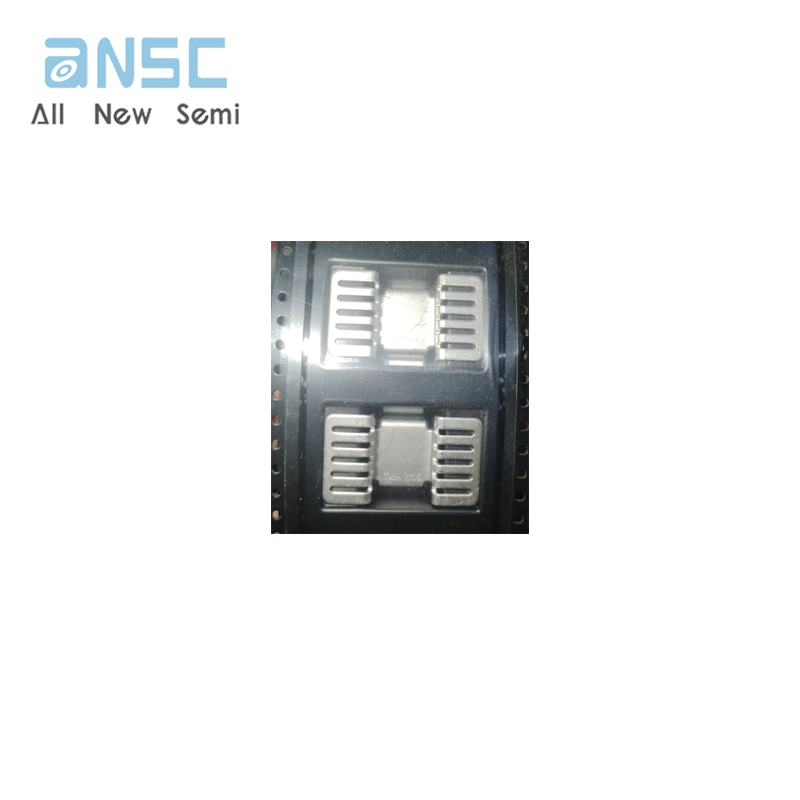

Product Photos
