Product Details
• AVAILABLE IN JAN, JANTX, AND JANTXV PER MIL-PRF-19500/118
• GENERAL PURPOSE SILICON DIODES
• METALLURGICALLY BONDED
Product Description
|
Type |
Description |
|---|---|
|
PART# |
1N5195 |
|
Category |
Discrete Semiconductor Products Diodes Rectifiers Single Diodes |
|
Mfr |
/ |
|
Series |
- |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Technology |
Standard |
|
Voltage - DC Reverse (Vr) (Max) |
180 V |
|
Current - Average Rectified (Io) |
200mA |
|
Voltage - Forward (Vf) (Max) @ If |
1 V @ 100 mA |
|
Speed |
Small Signal =< 200mA (Io), Any Speed |
|
Current - Reverse Leakage @ Vr |
25 nA @ 180 V |
|
Capacitance @ Vr, F |
- |
|
Mounting Type |
Through Hole |
|
Package / Case |
DO-204AH, DO-35, Axial |
|
Supplier Device Package |
DO-204AH (DO-35) |
|
Operating Temperature - Junction |
-65°C ~ 175°C |
|
Base Product Number |
1N5195 |

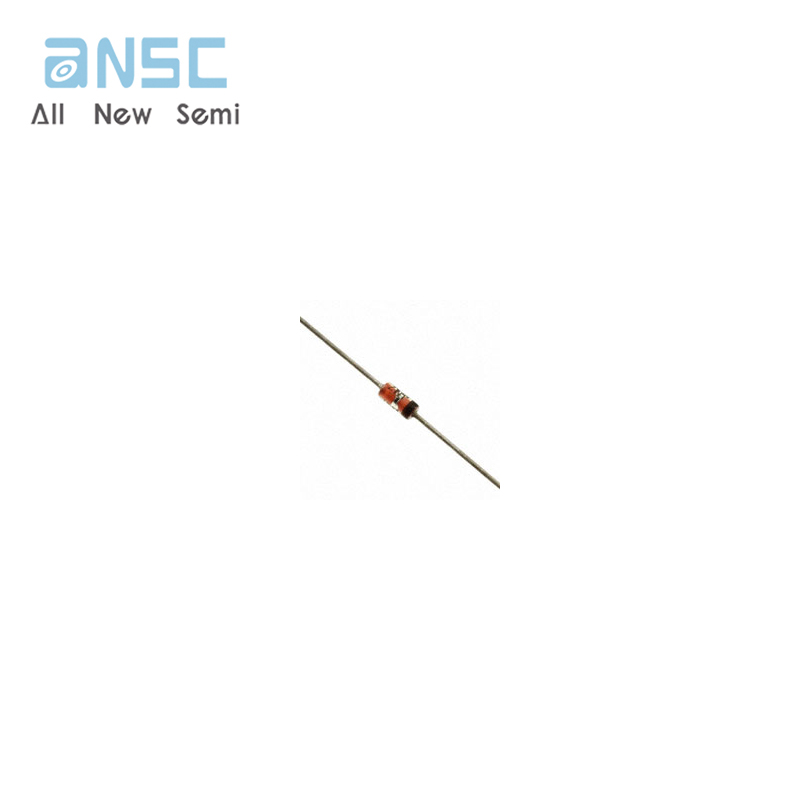

Actual image of the product
