Product Description
| PART# | GL41M |
| Part Package Code | DO-213AB |
| Package Description | Plastic Package-2 |
| Pin Count | 2 |
| Reach Compliance Code | Unknown |
| Additional Feature | Patented Device |
| Case Connection | Isolated |
| Configuration | Single |
| Diode Element Material | Silicon |
| Diode Type | Rectifier Diode |
| Forward Voltage-Max (VF) | 1.2 V |
| Non-rep Pk Forward Current-Max | 30 A |
| Number of Elements | 1 |
| Number of Phases | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 175 °C |
| Output Current-Max | 1 A |
| Package Body Material | Plastic/Epoxy |
| Package Shape | Round |
| Package Style | Long Form |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 1000 V |
| Surface Mount | Yes |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | Wrap Around |
| Terminal Position | End |

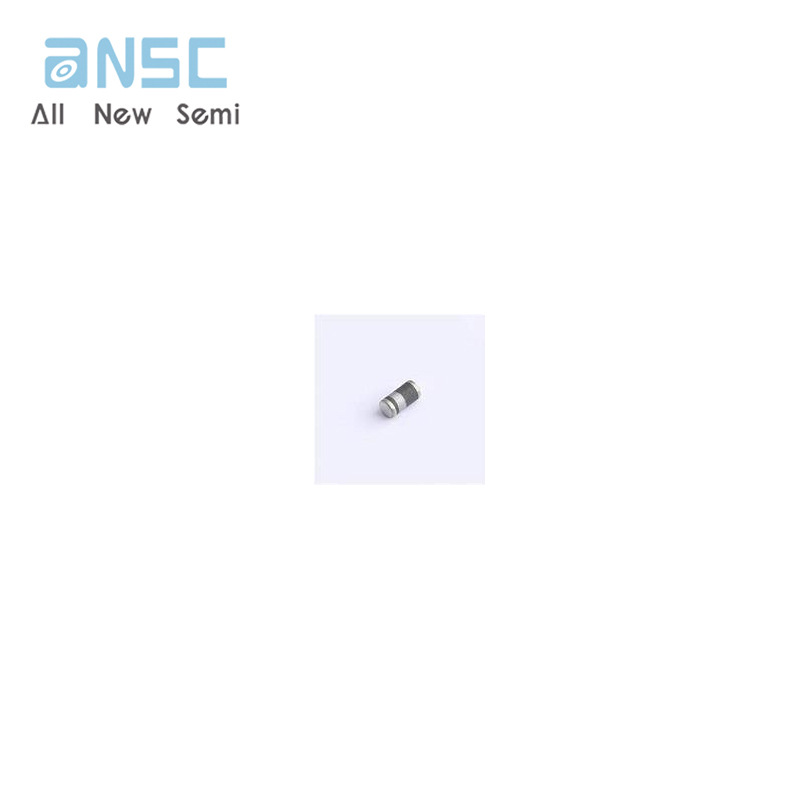

Actual image of the product
