Product Description
| PART# | RGL41J |
| Configuration | Single |
| Diode Type | Rectifier Diode |
| Forward Voltage-Max (VF) | 1.2 V |
| JEDEC-95 Code | DO-213AB |
| JESD-30 Code | O-LELF-R2 |
| JESD-609 Code | e0 |
| Non-rep Pk Forward Current-Max | 30 A |
| Number of Elements | 1 |
| Number of Phases | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 175 °C |
| Output Current-Max | 1 A |
| Package Body Material | Glass |
| Package Shape | Round |
| Package Style | Long Form |
| Rep Pk Reverse Voltage-Max | 600 V |
| Reverse Recovery Time-Max | 0.25 µS |
| Surface Mount | Yes |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | Wrap Around |
| Terminal Position | End |

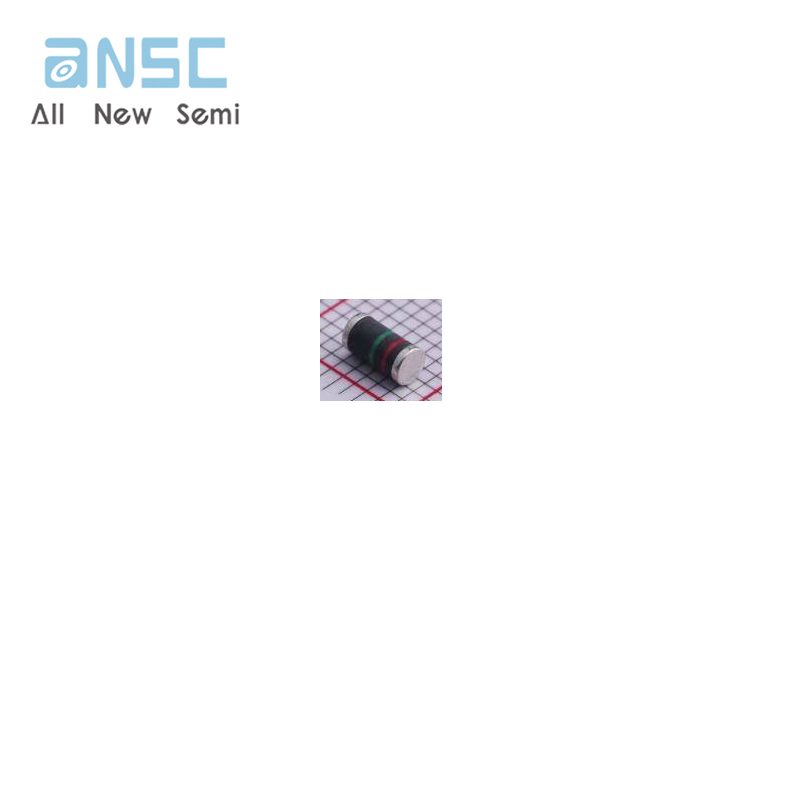

Actual image of the product
