Product Details
| Product Details The MG811 CO2 sensor has excellent sensitivity and selectivity for CO2 and is minimally affected by temperature and humidity fluctuations. It also offers excellent stability and reproducibility. It is primarily used in air quality control systems, fermentation process control, and greenhouse CO2 concentration detection structures and test circuits. Sensor Features Excellent sensitivity and selectivity for CO2 Minimally affected by temperature and humidity fluctuations Excellent stability and reproducibility Main Applications Air quality control systems Fermentation process control Greenhouse CO2 concentration detection |
Product Description
| Type# | Description |
| Product Model | MG811 |
| Product Type | Solid Electrolyte Gas Sensor |
| Standard Package | Metal Package |
| Detected Gas | Carbon Dioxide |
| Detected Concentration | 350-10000ppm CO2 |
| Heating Voltage (VH) | 6.0±0.1V AC |
| Load Resistance (RL) | Adjustable |
| Heating Resistance (RH) | 35Ω±3Ω (Room Temperature) |
| Heating Power Consumption (PH) | Approximately 1200mW |
| Temperature, Humidity | 20°C±2°C; 65%±5%RH |

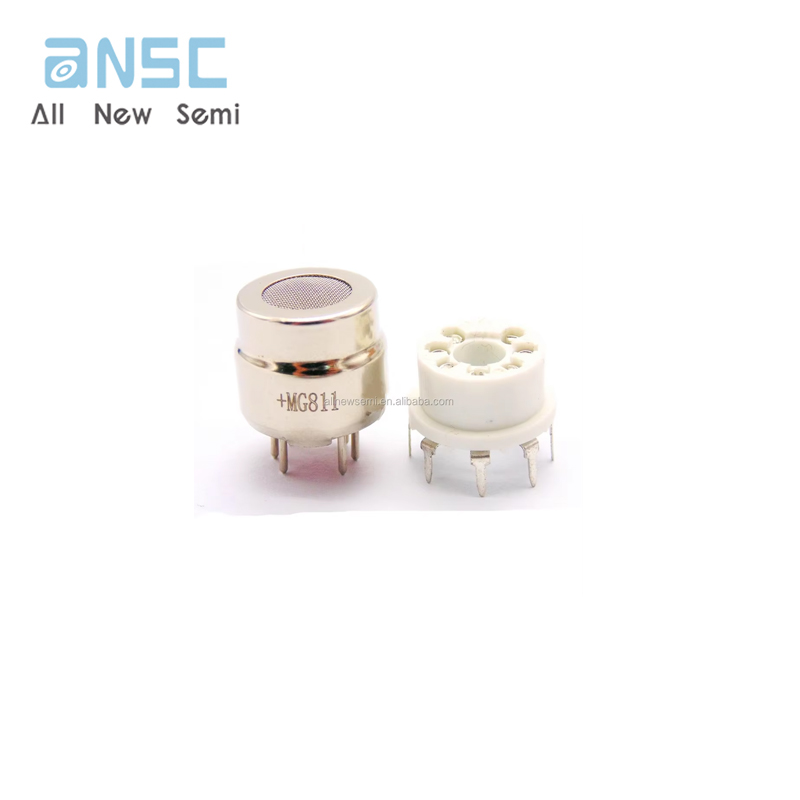

Product Photos
