Product Description
| PART# | BLM18EG221SN1B |
| Package Description | / |
| Additional Feature | Bag |
| Case Code | 603 |
| Construction | Chip Bead |
| DC Resistance-Max | 0.05 Ω |
| Filter Type | Ferrite Chip |
| Frequency-Max | 1000 Mhz |
| Frequency-Min | 100 Mhz |
| Height | 0.8 Mm |
| JESD-609 Code | e3 |
| Length | 1.6 Mm |
| Mounting Type | Surface Mount |
| Number of Functions | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Output Impedance | 260 Ohm Ω |
| Packing Method | Bulk |
| Rated Current | 2 A |
| Terminal Finish | Tin (Sn) |
| Width | 0.8 Mm |

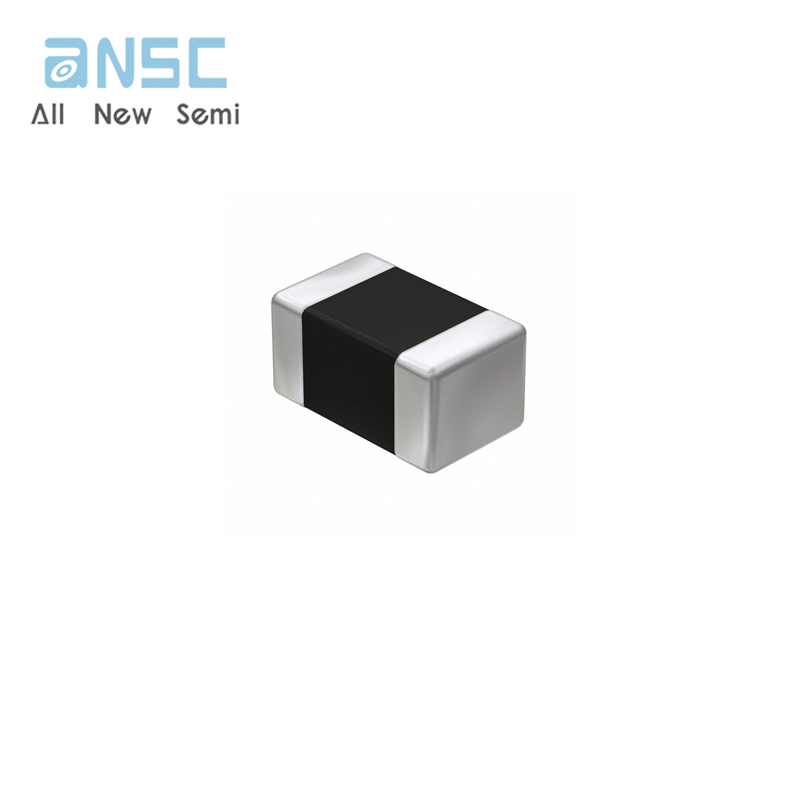

Actual image of the product
