Product Description
Type | Description |
|---|---|
PART# | XGL3530-152MEC |
Category | Inductors, Coils, Chokes Fixed Inductors |
Mfr | / |
Series | XGL3530 |
Packaging | Strip |
Part Status | Active |
Type | Molded |
Material - Core | - |
Inductance | 1.5 µH |
Tolerance | ±20% |
Current Rating (Amps) | 8.8 A |
Current - Saturation (Isat) | 5.2A |
Shielding | Shielded |
DC Resistance (DCR) | 15.3mOhm Max |
Q @ Freq | - |
Frequency - Self Resonant | 66MHz |
Ratings | AEC-Q200 |
Operating Temperature | -40°C ~ 125°C |
Inductance Frequency - Test | 1 MHz |
Features | - |
Mounting Type | Surface Mount |
Package / Case | Nonstandard |
Supplier Device Package | - |
Size / Dimension | 0.138" L x 0.126" W (3.50mm x 3.20mm) |
Height - Seated (Max) | 0.118" (3.00mm) |

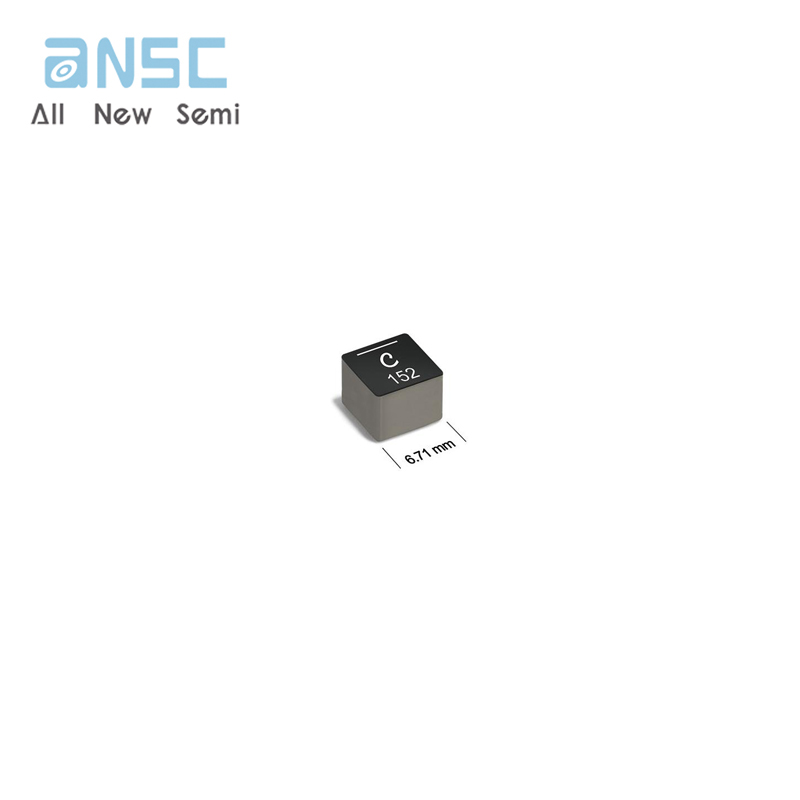

Actual image of the product
