Product Details
Description
The Panasonic FT series capacitors are automotive grade type V, surface mount polarized aluminium electrolytic capacitors suitable for high temperature lead free reflow. The capacitance value ranges from 10µF to 2200µF. These capacitors are perfect solution for applications, which require ultra low ESR, very high ripple current and very long life in small mounting form. FT series capacitors are very useful in a wide variety of applications where space is limited and high performance is crucial.
Features
High reliability
Automotive grade AEC-Q200 compliant
Rated voltage range of 6.3VDC to 50VDC
Tolerance of ±20%
Endurance of 2000h at 105°C
Operating temperature range -55°C to 105°C
Product Description
Type | Description |
|---|---|
Category | Capacitors Aluminum Electrolytic Capacitors |
Mfr | - |
Series | FT |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Capacitance | 150 µF |
Tolerance | ±20% |
Voltage - Rated | 35 V |
ESR (Equivalent Series Resistance) | 160mOhm @ 100kHz |
Lifetime @ Temp. | 2000 Hrs @ 105°C |
Operating Temperature | -55°C ~ 105°C |
Polarization | Polar |
Ratings | AEC-Q200 |
Applications | Automotive |
Ripple Current @ Low Frequency | 390 mA @ 120 Hz |
Ripple Current @ High Frequency | 600 mA @ 100 kHz |
Lead Spacing | - |
Size / Dimension | 0.248" Dia (6.30mm) |
Height - Seated (Max) | 0.315" (8.00mm) |
Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
Mounting Type | Surface Mount |
Package / Case | Radial, Can - SMD |
Base Product Number | EEE-FTV |

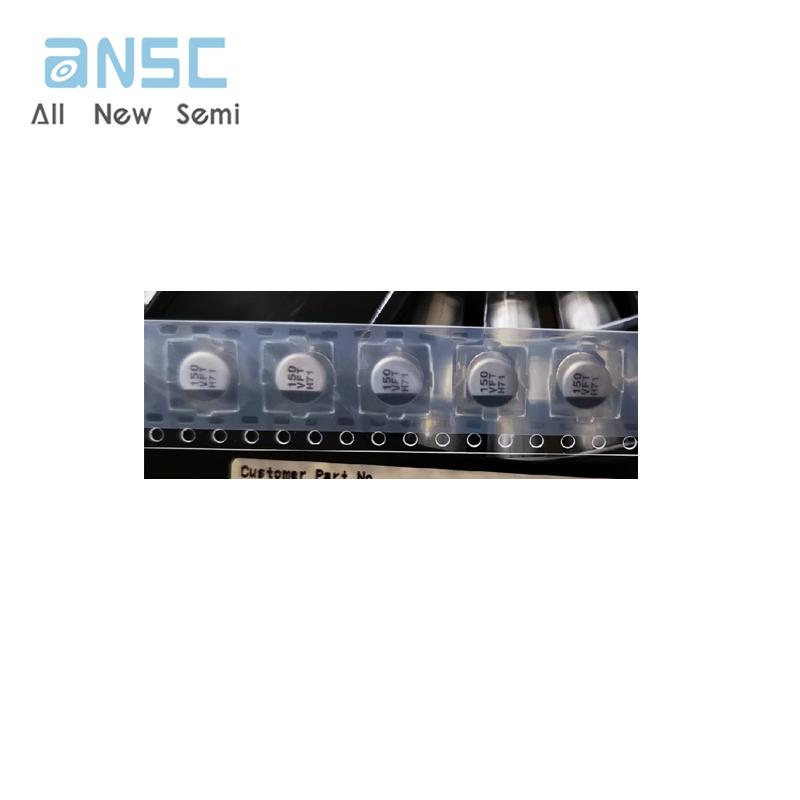

Product Photos
