Product Description: AK10-015C TVS Diode

Description

The AK10-015C is a high-performance, bidirectional TVS (Transient Voltage Suppressor) diode .

for general-purpose circuit protection. This component is engineered to safeguard electronic circuits from voltage spikes and transient surges, ensuring reliable operation and extending the lifespan of sensitive components.

Product Features

· Bidirectional Channels: The AK10-015C features one bidirectional channel, making it versatile for applications requiring protection in both directions.

· High Capacitance: With a capacitance of 12,000 pF at 10 kHz, this diode provides effective filtering and surge absorption.

· Clamping Voltage: The clamping voltage is set at 28V, ensuring that voltage spikes are safely managed within a controlled threshold.

· Peak Pulse Current: The diode can handle a peak pulse current of up to 10kA (10,000 A) with a 10/1000μs pulse width, making it suitable for high-energy transient events.

· Operating Temperature Range: The AK10-015C operates within a wide temperature range of -55°C to 150°C (TJ), making it suitable for various environmental conditions.

· Mounting Options: Available in through-hole mounting type, this diode offers flexibility in PCB design and assembly.

· RoHS Compliance: The AK10-015C is ROHS3 compliant, ensuring it meets environmental regulations for lead-free manufacturing.

Product Applications

Primary Applications: 1. General Purpose Circuit Protection: Ideal for protecting electronic circuits from voltage spikes and transient surges in various applications such as automotive, industrial control systems, and consumer electronics. 2. Surge Protection: Effective in protecting against lightning strikes, electrical discharges, and other transient events that can damage sensitive components.

Secondary Applications: 1. Power Supply Protection: Can be used to protect power supplies from voltage spikes caused by inductive loads or other transient sources. 2. Data Line Protection: Suitable for protecting data lines from electrical surges that could corrupt data or damage equipment.

Product Description

Actual image of the product

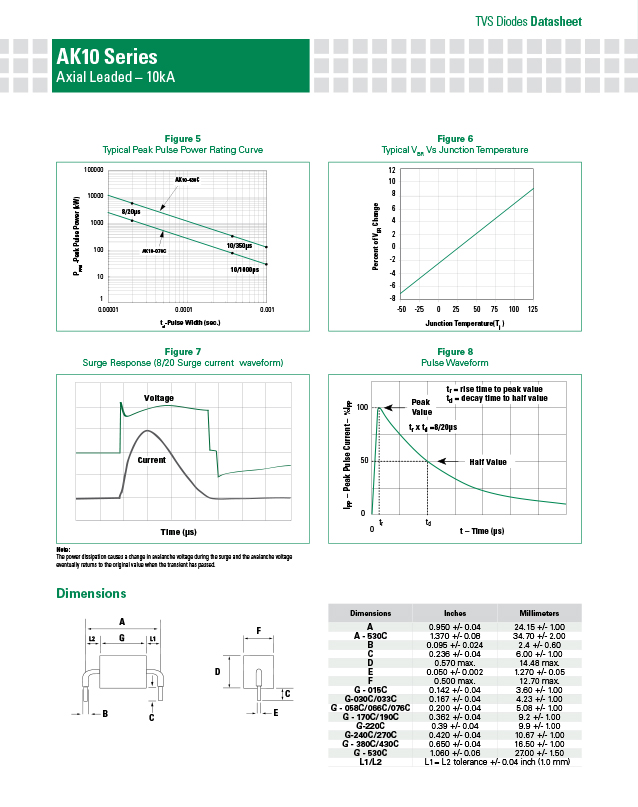

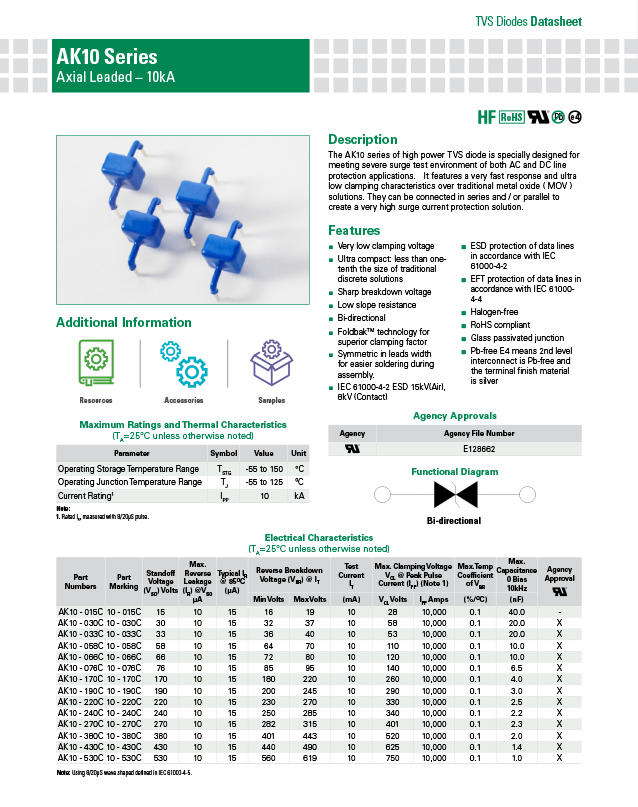

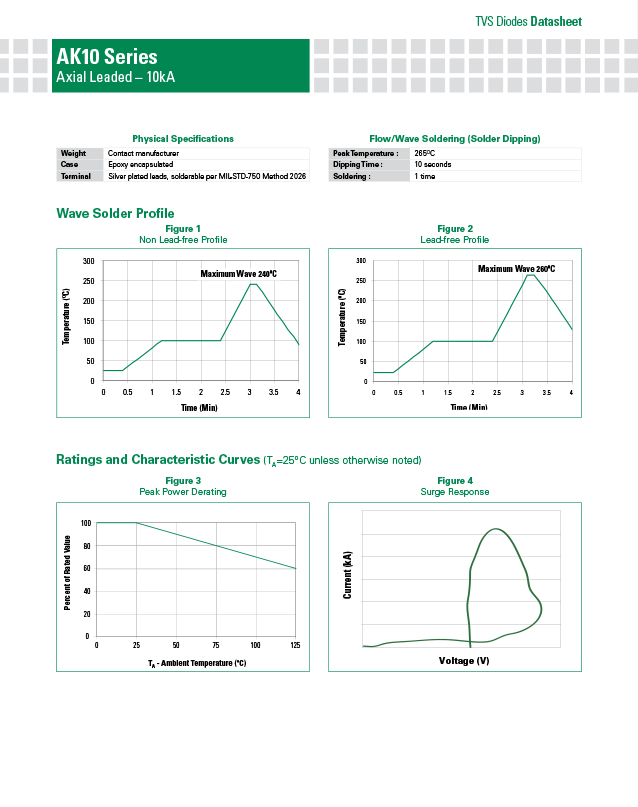

Product datasheet
