Product Details
Description
The RNS1A221MDN1PH is a high-quality aluminum-polymer capacitor designed for general-purpose applications. This capacitor offers excellent capacitance, low dissipation factor, and a robust construction that ensures reliable performance in various electronic circuits. With its compact radial can package and through-hole mounting type, it is ideal for use in a wide range of applications where high capacitance and low ESR are required.
Features
High Capacitance: 220μF to provide ample storage for electrical charge.
Low Dissipation Factor: 0.07% to minimize energy loss and heat generation.
Low ESR (Equivalent Series Resistance): 10mOhm for efficient signal transmission and minimal signal distortion.
Operating Temperature Range: -55°C to 105°C, making it suitable for use in both cold and hot environments.
High Ripple Current Handling: Up to 5.5A at 100kHz and 550mA at 120Hz, ensuring stable operation under varying load conditions.
Pb-Free and RoHS3 Compliant: Ensures environmental sustainability and compliance with global regulations.
Tin (Sn) Terminal Finish: Provides excellent solderability and durability.
Applications
General Purpose: Suitable for use in various electronic circuits requiring high capacitance and low ESR, such as power supplies, filters, and decoupling applications.
Audio Equipment: Used in audio circuits to filter out unwanted frequencies and stabilize voltage levels.
Medical Devices: Employed in medical equipment where reliability and stability are crucial.
Industrial Automation: Utilized in industrial control systems where high capacitance is necessary for smooth operation.
Product Description
Type | Description |
|---|---|
| PART# | RNS1A221MDN1PH |
Category | Capacitors Aluminum - Polymer Capacitors |
Manufacturer | - |
Series | FPCAP, RNS |
Packaging | Cut Tape (CT) Tape & Box (TB) |
Part Status | Active |
Type | Polymer |
Capacitance | 220 µF |
Tolerance | ±20% |
Voltage - Rated | 10 V |
ESR (Equivalent Series Resistance) | 10mOhm |
Lifetime @ Temp. | 2000 Hrs @ 105°C |
Operating Temperature | -55°C ~ 105°C |
Ratings | - |
Applications | General Purpose |
Ripple Current @ Low Frequency | 550 mA @ 120 Hz |
Ripple Current @ High Frequency | 5.5 A @ 100 kHz |
Lead Spacing | 0.197" (5.00mm) |
Size / Dimension | 0.394" Dia (10.00mm) |
Height - Seated (Max) | 0.551" (14.00mm) |
Surface Mount Land Size | - |
Mounting Type | Through Hole |
Package / Case | Radial, Can |

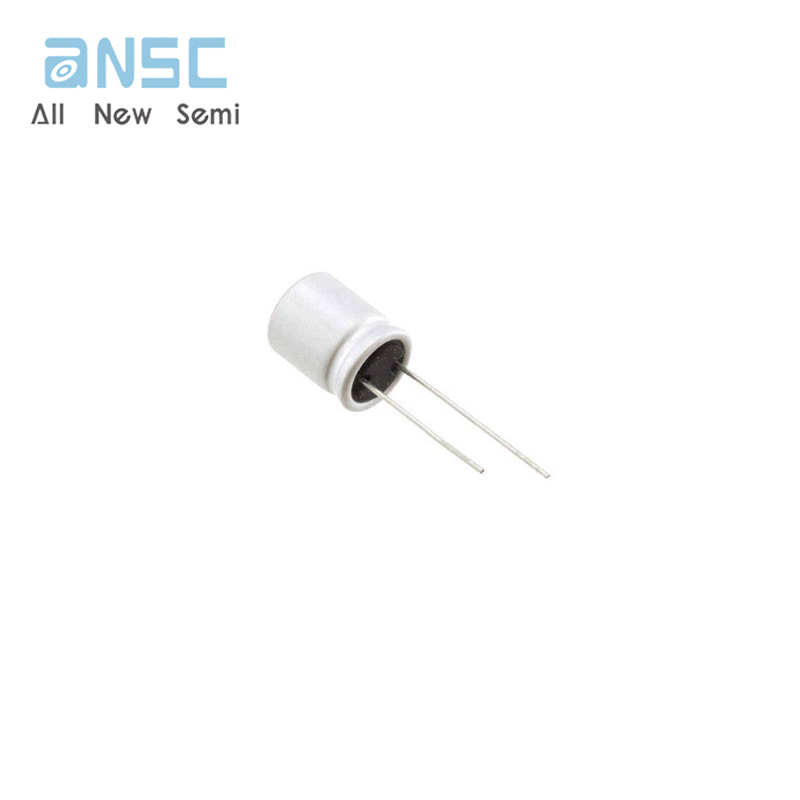

Actual image of the product
