Product Overview
The connector type Plug, Male Pins refers to the connector type.The device's mounting type is Free Hanging (In-Line).In order to package the product, a Bulk case is used.It belongs to the AMPLIMITE HDP-20 Series of products.It features 1 ports for managing a variety of tasks.The part is mounted by Cable, Free Hanging.The device runs in -55°C~105°C Operating Temperature.
Product Features
AMPLIMITE HDP-20 series
Product Applications
749808-8 D-Sub Connectors applications.
· Industrial Automation
· Transportation
· Embedded systems
· Datacom
· Communication
· Medical technology
· Military Technology
· Measuring & Control Technology
· Instrumentation
· Automotive Electronics
Product Description
| Type | Description |
| ANSC PART# | ANSC - 749808-8 |
| Category | Connectors, Interconnects |
| D-Sub, D-Shaped Connectors | |
| D-Sub Connector Assemblies | |
| Mfr | - |
| Series | AMPLIMITE HDP-20 |
| Packaging | Bulk |
| Part Status | Obsolete |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Mounting Type | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 1 (DE, E) |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Crimp |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | Varies by Wire Gauge |
| Backset Spacing | - |
| Features | Grounding Indents |
| Voltage Rating | 250V |
| Color | Black |
| Contact Form | - |
| Dielectric Material | Polyamide (PA), Nylon, Glass Filled |
| Wire Gauge | - |
| Contact Material | Brass |
| Operating Temperature | -55°C ~ 105°C |
| Base Product Number | 749808 |
Actual image of the product

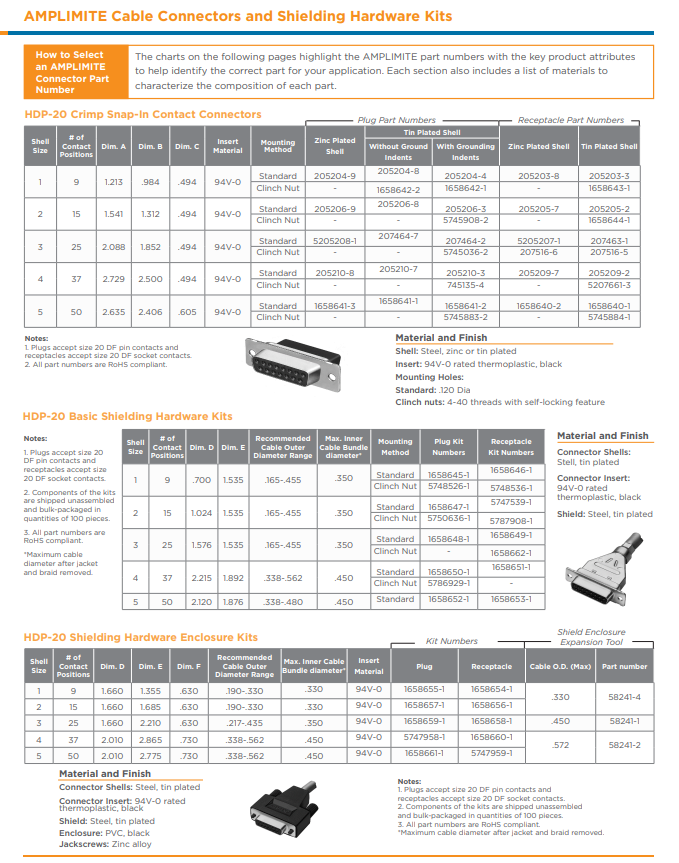

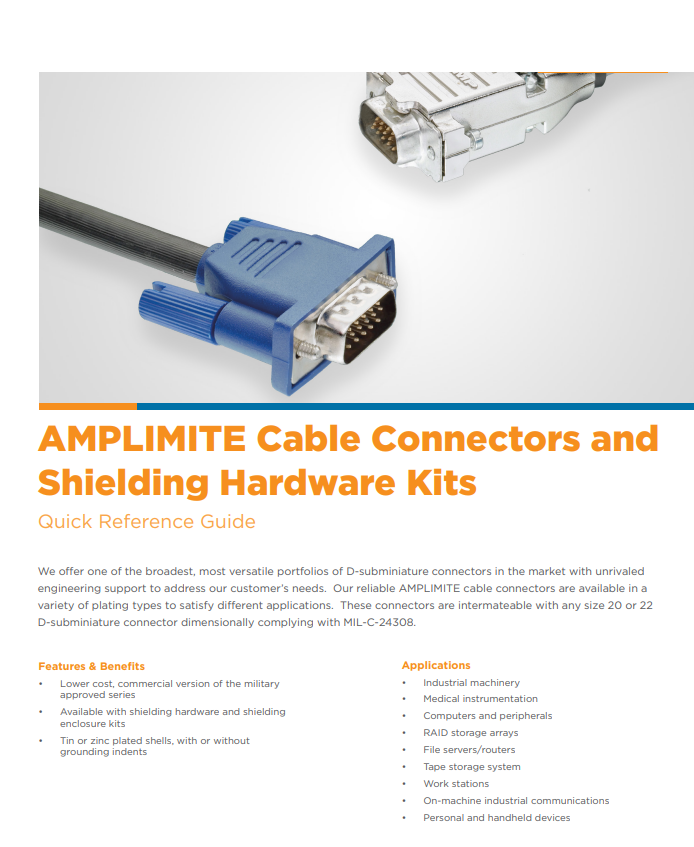

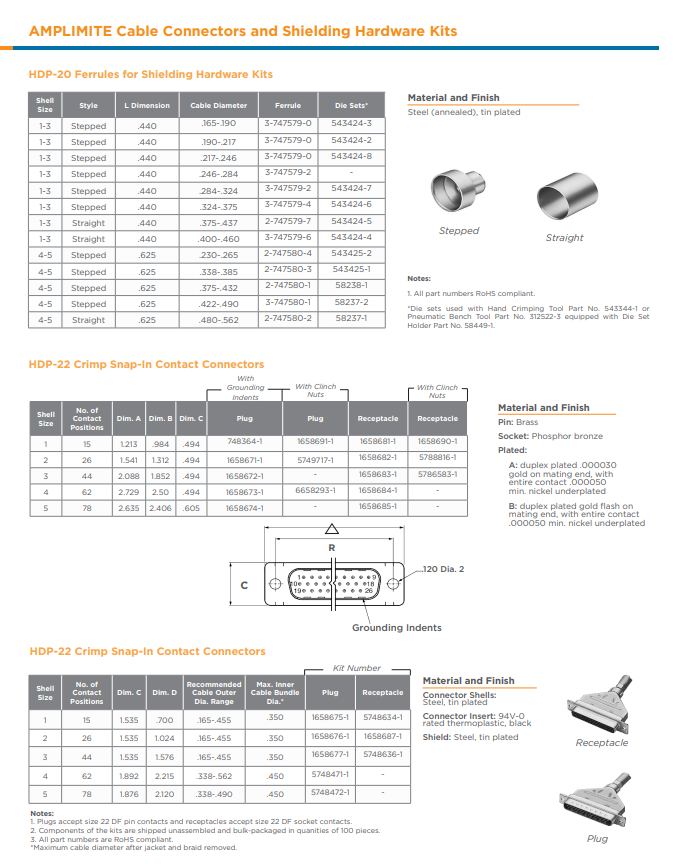

Product datasheet
For more information, please download
