Product Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Mini-Universal MATE-N-LOK Series.There is the possibility of using the device for General Purpose.By Through Hole, the part is mounted.In this chip, the terminations are all 2.The operating voltage of this memory is 600V.Operating temperature is set to -20°C~85°C.
Product Features
2 basic kinds of terminations
Mini-Universal MATE-N-LOK series
Product Applications
770166-1 Rectangular Connectors applications.
· Embedded systems
· Datacom
· Communication
· Medical technology
· Military Technology
· Measuring & Control Technology
· Instrumentation
· Automotive Electronics
· Telecommunications
· Data Technology
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - 770166-1 |
|
Category |
Connectors, Interconnects Rectangular Connectors Headers, Male Pins |
|
Mfr |
- |
|
Series |
Mini-Universal MATE-N-LOK |
|
Packaging |
Bulk |
|
Part Status |
Obsolete |
|
Connector Type |
Header |
|
Contact Type |
Male Pin |
|
Pitch - Mating |
0.163" (4.14mm) |
|
Number of Positions |
2 |
|
Number of Rows |
1 |
|
Row Spacing - Mating |
- |
|
Number of Positions Loaded |
All |
|
Style |
Board to Cable/Wire |
|
Shrouding |
Shrouded - 4 Wall |
|
Mounting Type |
Through Hole |
|
Termination |
Solder |
|
Fastening Type |
Locking Ramp |
|
Contact Length - Mating |
- |
|
Contact Length - Post |
0.175" (4.45mm) |
|
Overall Contact Length |
- |
|
Insulation Height |
0.531" (13.50mm) |
|
Contact Shape |
Circular |
|
Contact Finish - Mating |
Tin-Lead |
|
Contact Finish Thickness - Mating |
150.0µin (3.81µm) |
|
Contact Finish - Post |
Tin-Lead |
|
Contact Material |
Brass |
|
Insulation Material |
Polyamide (PA), Nylon |
|
Features |
Board Lock |
|
Operating Temperature |
-20°C ~ 85°C |
|
Ingress Protection |
- |
|
Material Flammability Rating |
UL94 V-0 |
|
Insulation Color |
White |
|
Current Rating (Amps) |
Varies by Wire Gauge |
|
Voltage Rating |
600VAC |
|
Mated Stacking Heights |
- |
|
Contact Finish Thickness - Post |
150.0µin (3.81µm) |
|
Applications |
General Purpose |
|
Base Product Number |
770166 |

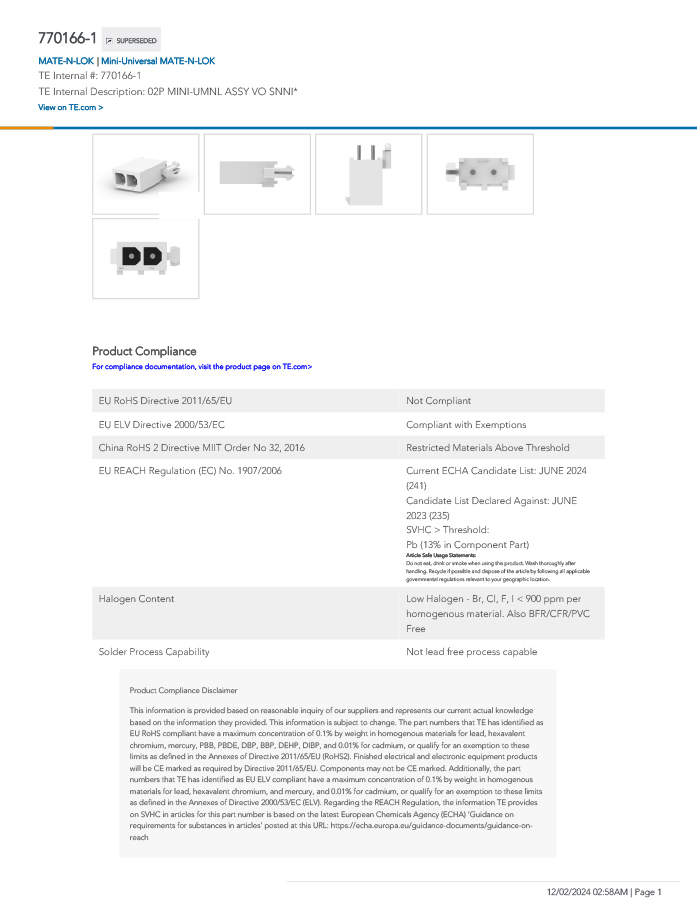

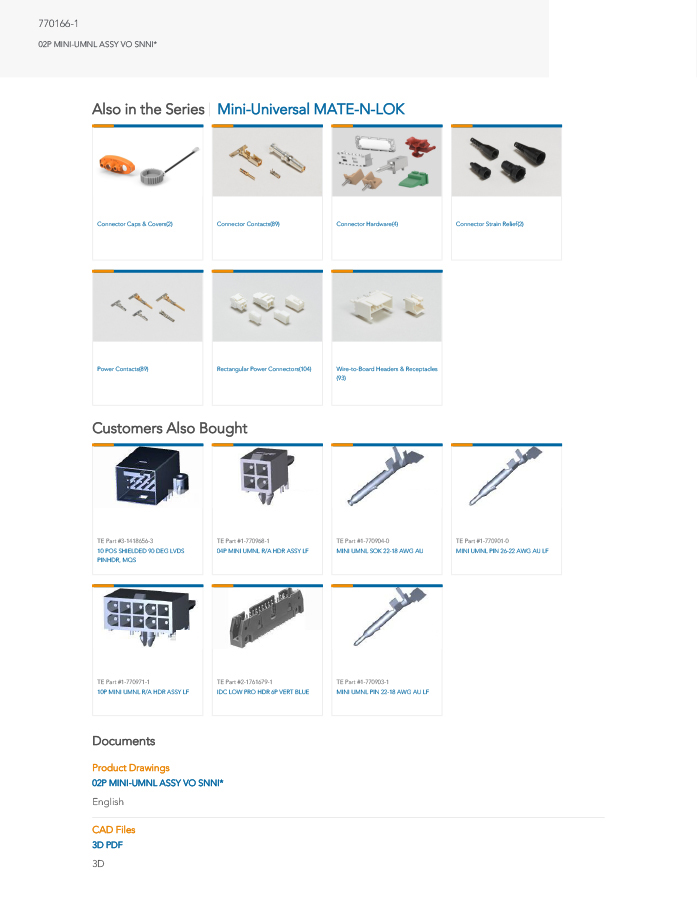

Actual image of the product
