Product Overview
Phase diode rectifier produces a maximum reverse leakage current of 5μA volts.As a result, this device has a rectified current of 300mA volts on average.Phase diode rectifier is permissible for forward current to reach 300mA.Fuse elements have an indefinite life expectancy of 300mA, which is the maximum current that the fuse can carry for an indefinite period of time.There is no maximum value for 1A surge current.Phase diode rectifier is possible for a capacPhase diode rectifierance-based device to output a value of 22pF.Based on the data charts in the datasheets, the peak reverse is 50μA.
Product Features
a maximal reverse leakage current of 5μA volts
an average rectified current of 300mA volts
a current rating of 300mA
the peak reverse is 50μA
Product Applications
BAT30KFILM applications of single-phase diode rectifier.
· DC motor control and drives
· Battery chargers
· Welders
· Power converters
· Reverse Polarity Protection
· Ultra High-Speed Switching
· Freewheeling
· Polarity Protection Diode
· Recirculating Diode
· Switching Diode
Product Description
| Type | Description |
| ANSC PART# | ANSC-BAT30KFILM |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 300mA |
| Voltage - Forward (Vf) (Max) @ If | 530 mV @ 300 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 5 µA @ 30 V |
| Capacitance @ Vr, F | 22pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-79, SOD-523 |
| Supplier Device Package | SOD-523 |
| Operating Temperature - Junction | 150°C (Max) |
| Base Product Number | BAT30 |

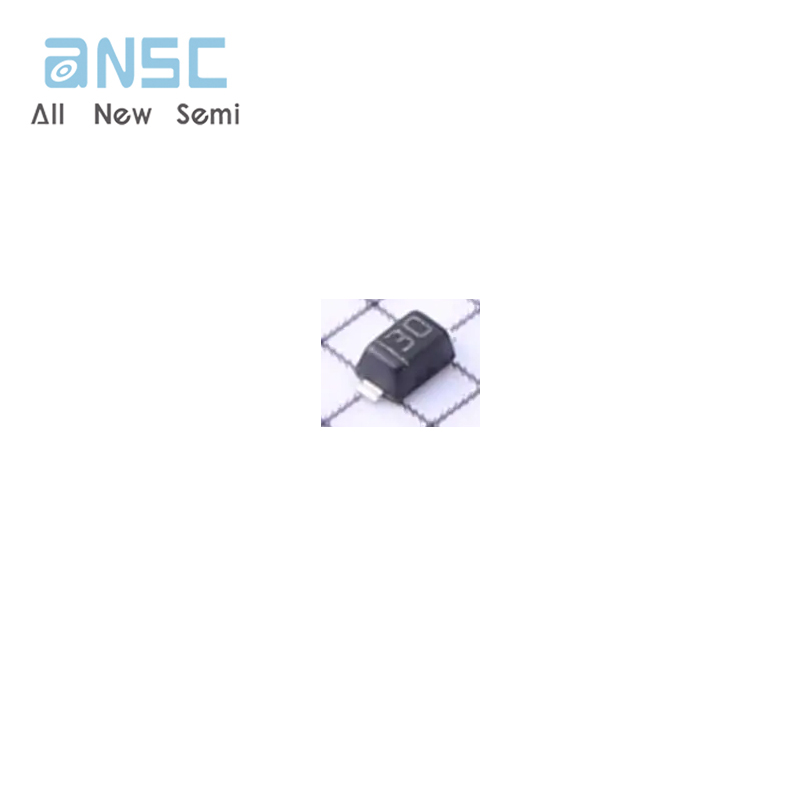

Actual image of the product
