Product Description
The BAV99LT1G is a surface-mount, fast-recovery, silicon rectifier diode, designed for use in a variety of applications. This diode features a pair of series-connected silicon rectifiers in a compact TO-236-3, SC-59, or SOT-23-3 package.
Product Features
· High Current Handling: The BAV99LT1G can handle a maximum forward current of 215mA, making it suitable for applications requiring high current flow.
· Low Reverse Leakage Current: With a reverse leakage current of only 2.5μA at 70V, this diode minimizes power consumption and heat generation.
· Fast Recovery Time: The diode's fast recovery time of less than 500ns ensures efficient operation and reduced power loss.
· High Temperature Range: The diode's operating temperature range of -65°C to 150°C allows for use in a wide range of environments.
Product Applications
· Primary Applications:
· Power supplies
· Motor control circuits
· Audio equipment
· Secondary Applications:
· Telecommunications equipment
· Medical devices
· Industrial control systems
Embedded Modules:
· Various power supply modules
· Motor control modules
· Audio amplifier modules
Product Description
Type | Description |
|---|---|
ANSC PART# | ANSC - BAV99LT1G |
Category | Discrete Semiconductor Products Diodes Rectifiers Diode Arrays |
Manufacturer | - |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Diode Configuration | 1 Pair Series Connection |
Technology | Standard |
Voltage - DC Reverse (Vr) (Max) | 100 V |
Current - Average Rectified (Io) (per Diode) | 215mA (DC) |
Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
Speed | Fast Recovery =< 500ns, > 200mA (Io) |
Reverse Recovery Time (trr) | 6 ns |
Current - Reverse Leakage @ Vr | 2.5 µA @ 70 V |
Operating Temperature - Junction | -65°C ~ 150°C |
Mounting Type | Surface Mount |
Package / Case | TO-236-3, SC-59, SOT-23-3 |
Supplier Device Package | SOT-23-3 (TO-236) |
Base Product Number | BAV99 |

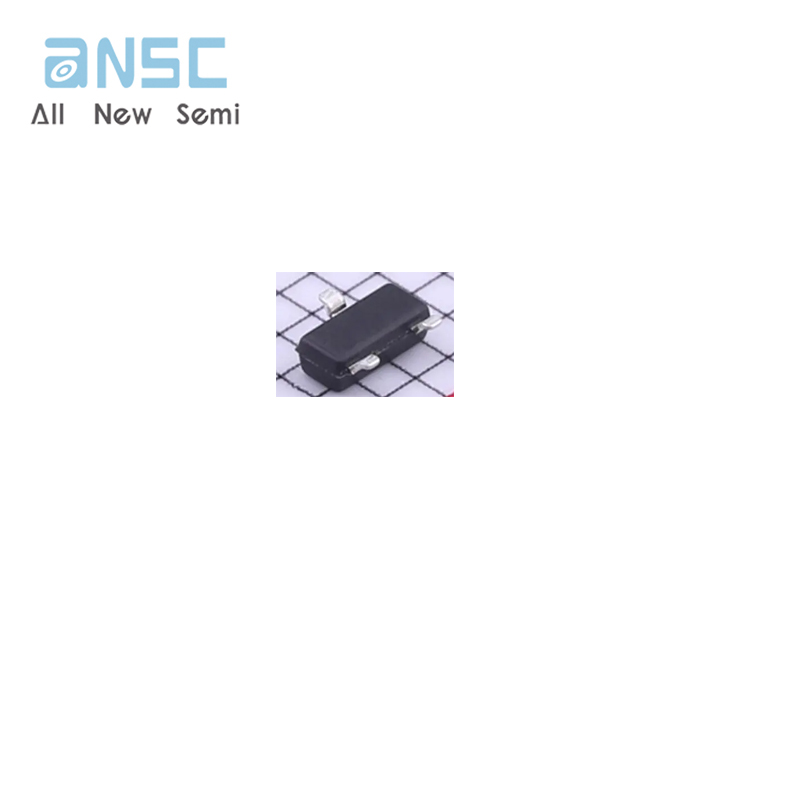

Actual image of the product
