Product Overview
It is necessary to supply this electrical device with a reverse leakage current of 100nA @ 12.6V.Reverse leakage current reaches a maximum of 100nA.The design flexibility of this device is extremely high since its zener current is 5mA.For the device to operate, the maximum forward voltage (Vf) 900mV @ 10mA must be supplied.If you want this device to work properly, you should set the peak reverse voltage to 100nA.
Product Features
reverse leakage current of 100nA @ 12.6V
100nA @ 12.6V is the maximum voltage (Tol)
Reverse leakage current reaches 100nA
the zener current of 5mA
Product Applications
BZT52C18-7-F applications of zener single diodes.
Product Description
Type | Description |
|---|---|
ANSC PART# | ANSC - BZT52C18-7-F |
Category | Discrete Semiconductor Products Diodes Zener Single Zener Diodes |
Mfr | - |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Voltage - Zener (Nom) (Vz) | 18 V |
Tolerance | ±6% |
Power - Max | 500 mW |
Impedance (Max) (Zzt) | 45 Ohms |
Current - Reverse Leakage @ Vr | 100 nA @ 12.6 V |
Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
Operating Temperature | -65°C ~ 150°C |
Mounting Type | Surface Mount |
Package / Case | SOD-123 |
Supplier Device Package | SOD-123 |
Base Product Number | BZT52 |

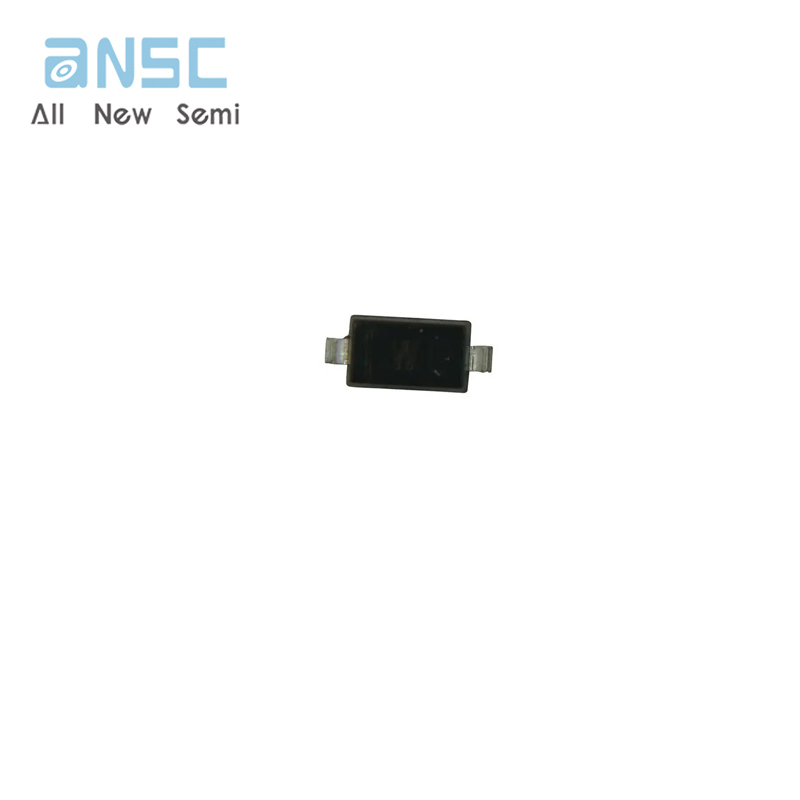

Actual image of the product
