Product Overview
Reverse voltages of 200V are reasonable.A rectified current of 2A volts is averaged for this device.A value of 2A is the maximum forward current that can be allowed.This fuse has a current rating of 2A, which is the maximum current that will not deteriorate the fuse element over a long period.75A is the maximum value of surge current.As indicated by the data chart in the datasheets, the peak reverse is 3μA.
Product Features
an average rectified current of 2A volts
a current rating of 2A
the peak reverse is 3μA
Product Applications
STTH2R02A applications of single-phase diode rectifier.
· DC motor control and drives
· Battery chargers
· Welders
· Power converters
· Reverse Polarity Protection
· Ultra High-Speed Switching
· Freewheeling
· Polarity Protection Diode
· Recirculating Diode
· Switching Diode
Product Description
Type | Description |
|---|---|
ANSC PART# | ANSC - DIODE STTH2R02A |
Category | Discrete Semiconductor Products Diodes Rectifiers Single Diodes |
Mfr | - |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Technology | Standard |
Voltage - DC Reverse (Vr) (Max) | 200 V |
Current - Average Rectified (Io) | 2A |
Voltage - Forward (Vf) (Max) @ If | 1 V @ 2 A |
Speed | Fast Recovery =< 500ns, > 200mA (Io) |
Reverse Recovery Time (trr) | 30 ns |
Current - Reverse Leakage @ Vr | 3 µA @ 200 V |
Capacitance @ Vr, F | - |
Mounting Type | Surface Mount |
Package / Case | DO-214AC, SMA |
Supplier Device Package | SMA |
Operating Temperature - Junction | 175°C (Max) |
Base Product Number | STTH2 |

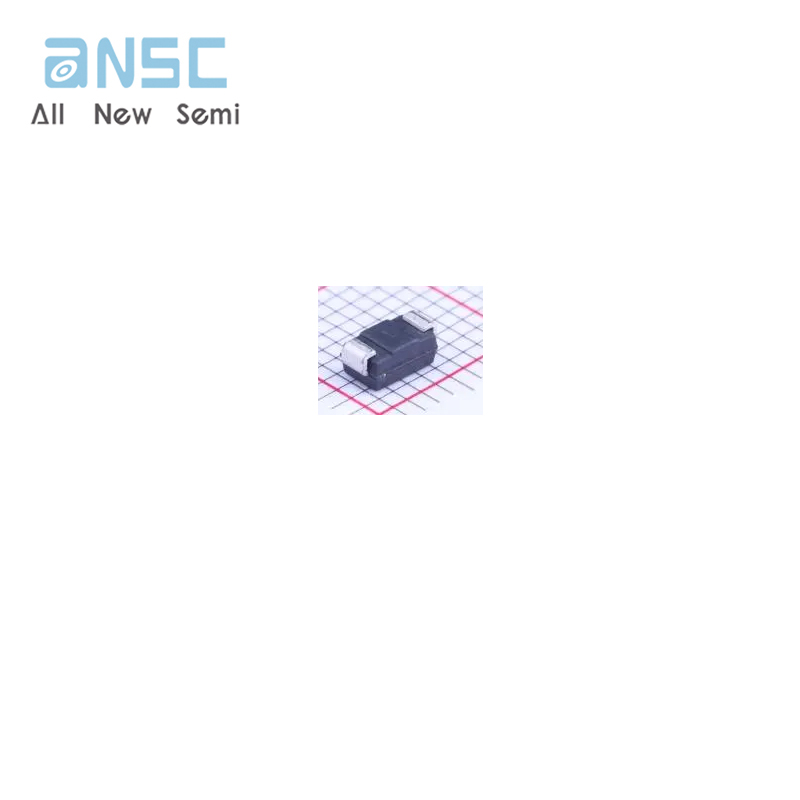

Actual image of the product
