Product Overview
The DC current gain is the ratio of the base current to the collector current βdc = Ic/Ib and the DC current gain for this device is 30 @ 250mA, 1V.Vce saturation means Ic is at its maximum value(saturated), and the vce saturation(Max) is 600mV @ 125mA, 1A.There is a setting of 60 V for maximal collector-Emitter voltage.A 60 V maximal voltage - Collector Emitter Breakdown is present in the device.
Product Features
the DC current gain for this device is 30 @ 250mA, 1V
the vce saturation(Max) is 600mV @ 125mA, 1A
Product Applications
JANTX2N3740 applications of single BJT transistors.
Inverter
Interface
Driver
Muting
Product Description
| Type | Description |
| ANSC PART# | ANSC- JANTX2N3740 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | - |
| Series | - |
| Packaging | Bulk |
| Part Status | Active |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 4 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 125mA, 1A |
| Current - Collector Cutoff (Max) | 10µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 250mA, 1V |
| Power - Max | 25 W |
| Frequency - Transition | - |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Grade | Military |
| Qualification | MIL-PRF-19500/441 |
| Mounting Type | Through Hole |
| Package / Case | TO-213AA, TO-66-2 |
| Base Product Number | 2N3740 |

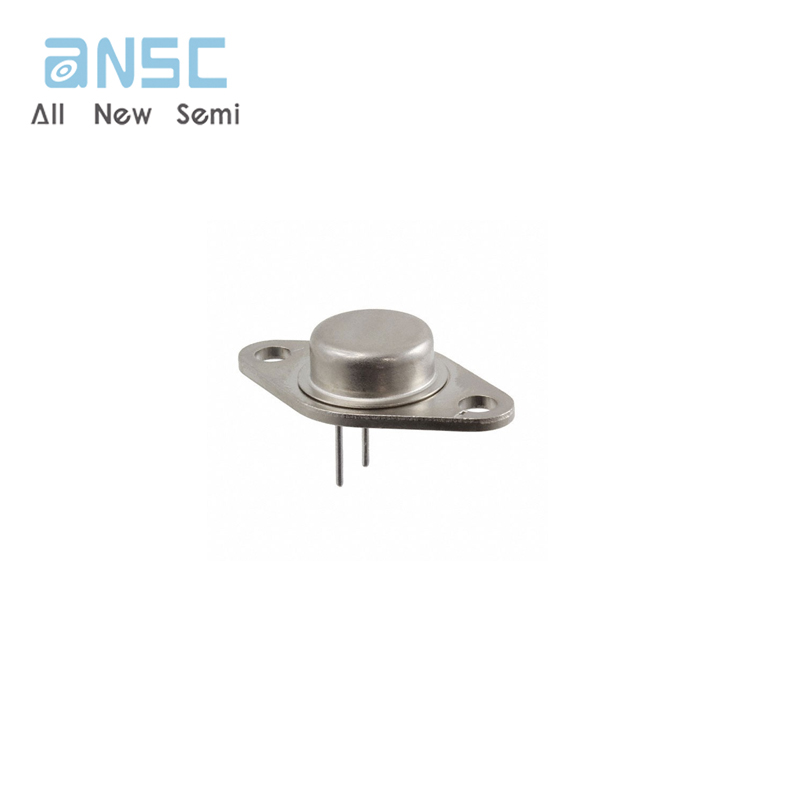

Actual image of the product
