Description
The MBRS1100T3G is a Schottky rectifier diode, designed for surface-mount applications. This diode features a single element configuration with a tin-plated contact and a halogen-free, lead-free package. It is rated for an average rectified current of 1A and a forward voltage of 750mV at 1A.
Product Features
Schottky Diode Type: The MBRS1100T3G is a Schottky diode, known for its fast recovery time and low forward voltage drop.
High Current Rating: The diode is designed to handle high currents up to 1A.
Low Reverse Leakage Current: The reverse leakage current is only 500μA at 100V.
High Surge Current: The diode can withstand surge currents up to 50A.
Wide Operating Temperature Range: The diode operates from -65°C to 175°C, making it suitable for a wide range of applications.
Product Applications
Primary Applications: The MBRS1100T3G is suitable for power applications such as power supplies, motor drives, and DC-DC converters.
Secondary Applications: It can also be used in other applications such as audio equipment, telecommunications, and medical devices.
Product Description
| Type | Description |
| ANSC PART# | ANSC- MBRS1100T3G |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 750 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 500 µA @ 100 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Base Product Number | MBRS1100 |

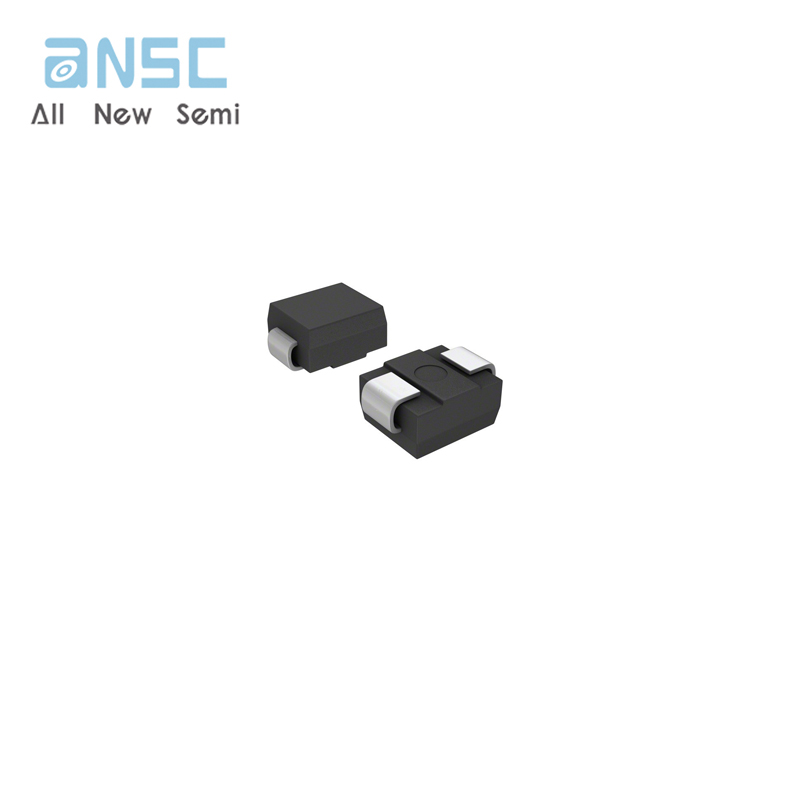

Actual image of the product
