Product Description
The MMBF170-7-F is a high-reliability, surface-mount N-channel enhancement-mode MOSFET. This device is designed for switching applications and features a high level of reliability, making it suitable for use in a wide range of industries.
Product Features
· High reliability for reliable operation in harsh environments
· N-channel enhancement-mode MOSFET with a high level of current handling (500mA)
· Low Rds(on) of 5Ω at 200mA and 10V
· Operating temperature range of -55°C to 150°C
· RoHS3 compliant and lead-free
· Available in a compact TO-236-3, SC-59, and SOT-23-3 package
Product Applications
· Primary applications: Switching and power control in consumer electronics, industrial control systems, and automotive systems
· Secondary applications: Power supplies, motor control, and audio amplifiers
Product Description
Type | Description |
|---|---|
ANSC PART# | ANSC - MMBF170-7-F |
Category | Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs |
Mfr | - |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
Part Status | Active |
FET Type | N-Channel |
Technology | MOSFET (Metal Oxide) |
Drain to Source Voltage (Vdss) | 60 V |
Current - Continuous Drain (Id) @ 25°C | 500mA (Ta) |
Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
Rds On (Max) @ Id, Vgs | 5Ohm @ 200mA, 10V |
Vgs(th) (Max) @ Id | 3V @ 250µA |
Vgs (Max) | ±20V |
Input Capacitance (Ciss) (Max) @ Vds | 40 pF @ 10 V |
FET Feature | - |
Power Dissipation (Max) | 300mW (Ta) |
Operating Temperature | -55°C ~ 150°C (TJ) |
Mounting Type | Surface Mount |
Supplier Device Package | SOT-23-3 |
Package / Case | TO-236-3, SC-59, SOT-23-3 |
Base Product Number | MMBF170 |
Actual image of the product

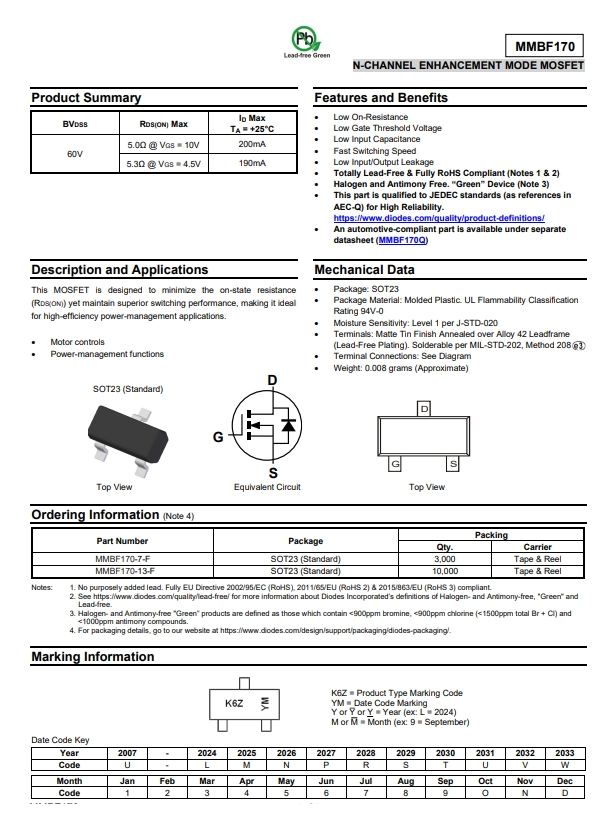

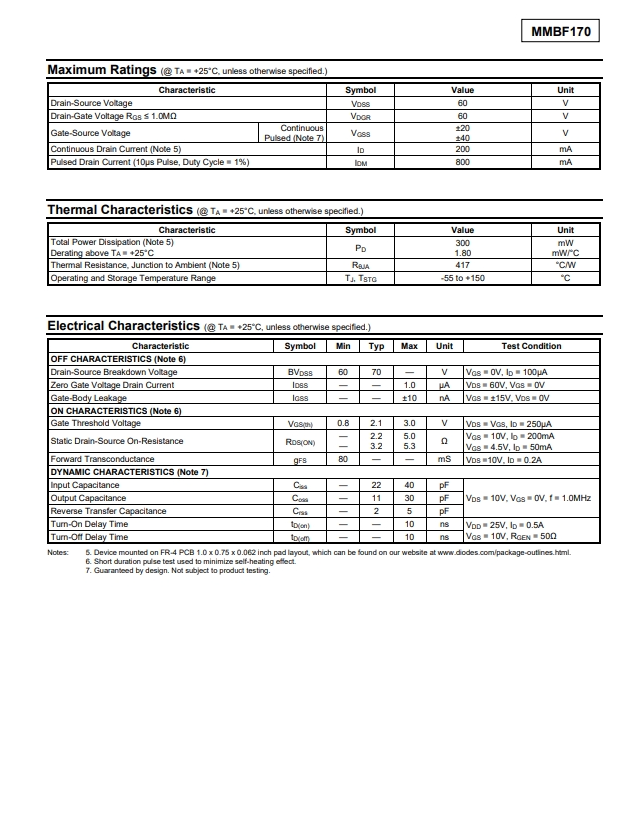

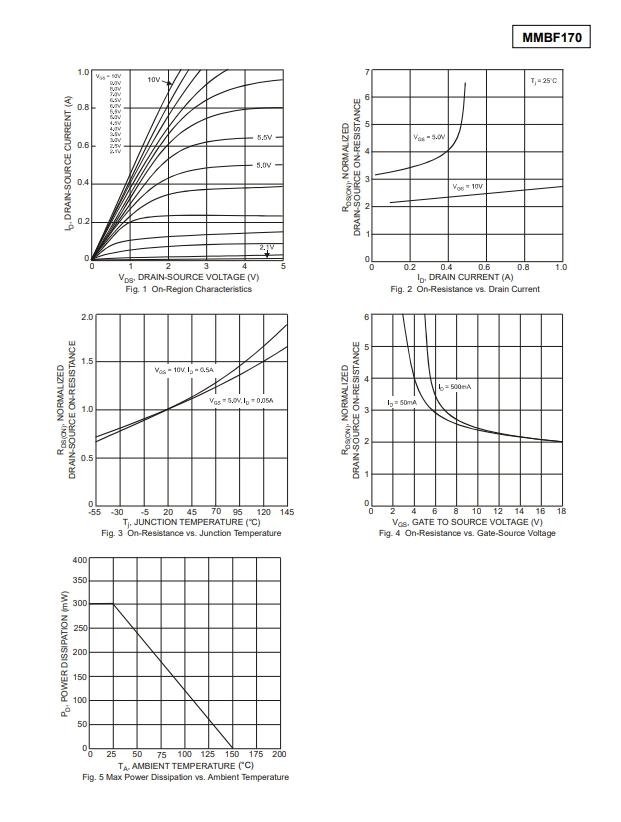

Product datasheet
For more information, please download
