Product Description
The NTD20P06LT4G is a P-Channel Enhancement Mode MOSFET , designed for surface mount applications. This MOSFET features a high voltage rating of -60V and a low Rds(on) of 150mΩ, making it suitable for a wide range of switching applications.
Product Features
· High voltage rating of -60V
· Low Rds(on) of 150mΩ
· High current rating of 15.5A
· Operating temperature range of -55°C to 175°C
· RoHS3 compliant and lead-free
· Surface mount package with a compact footprint
Product Applications
· Primary applications:
· Switching power supplies
· Motor control systems
· Audio amplifiers
· Secondary applications:
· LED lighting systems
· Power conversion systems
· Automotive electronics
Product Description
Type | Description |
|---|---|
ANSC PART# | ANSC - NTD20P06LT4G |
Category | Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs |
Mfr | - |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
FET Type | P-Channel |
Technology | MOSFET (Metal Oxide) |
Drain to Source Voltage (Vdss) | 60 V |
Current - Continuous Drain (Id) @ 25°C | 15.5A (Ta) |
Drive Voltage (Max Rds On, Min Rds On) | 5V |
Rds On (Max) @ Id, Vgs | 150mOhm @ 7.5A, 5V |
Vgs(th) (Max) @ Id | 2V @ 250µA |
Gate Charge (Qg) (Max) @ Vgs | 26 nC @ 5 V |
Vgs (Max) | ±20V |
Input Capacitance (Ciss) (Max) @ Vds | 1190 pF @ 25 V |
FET Feature | - |
Power Dissipation (Max) | 65W (Tc) |
Operating Temperature | -55°C ~ 175°C (TJ) |
Mounting Type | Surface Mount |
Supplier Device Package | DPAK |
Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
Base Product Number | NTD20 |

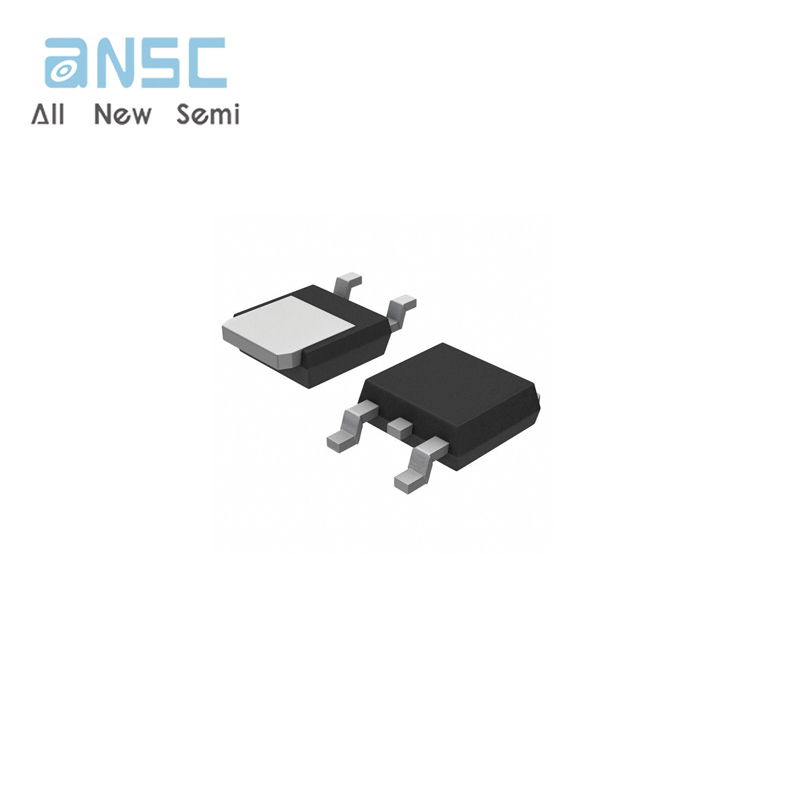

Actual image of the product
