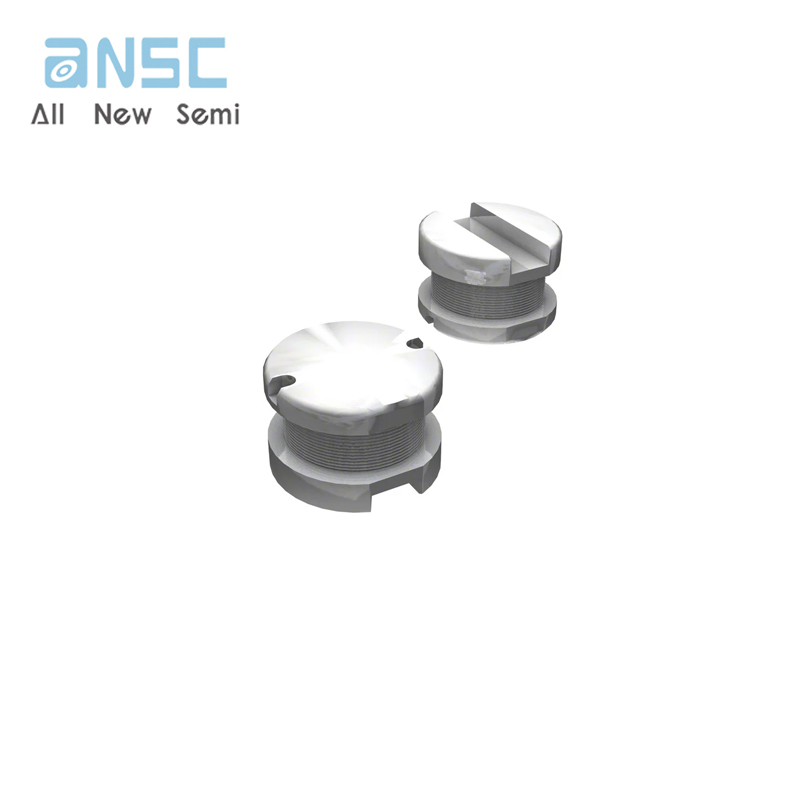

Product Description: SDR0805-330KL Fixed Inductor

The SDR0805-330KL is a high-performance, fixed inductor . It belongs to the SDR0805 series and is constructed using a ferrite core. This compact, surface-mountable inductor is ideal for various electronic applications requiring efficient energy storage and filtering. With its cylindrical package and dual-ended terminals, it offers excellent thermal and electrical performance.

Product Features

· Inductance: 33 μH

· Inductance Tolerance: ±10%

· Coil Resistance: 140 mOhm

· DC Current Rating: Up to 1.2 A

· Operating Temperature Range: -40°C to 125°C

· Mounting Type: Surface Mount (SMD/SMT)

· Terminal Finish: Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

· Frequency-Self-Resonant: 10 MHz

· Q Factor: 15 at 2.52 MHz

· RoHS Compliance: Compliant with ROHS3 standards

Product Applications

Primary Applications:

Power supply filtering and regulation

Audio and video signal filtering

High-frequency applications such as RF circuits

Secondary Applications:

Motor control circuits

Switch-mode power supplies

Medical device electronics
