Product Description
The SMLVT3V3 is a unidirectional TVS (Transient Voltage Suppressor) diode designed to provide reliable overvoltage protection for electronic circuits. This component is part of the SMLV series, known for its high-performance and reliability. The SMLVT3V3 is a surface-mount device (SMD) packaged in a DO-214AA (SMB) case, making it ideal for modern PCB designs.
Product Features
· Breakdown voltage of 4.1V, ensuring reliable protection against voltage surges
· High peak pulse current of 200A (8/20μs) and peak pulse power of 600W
· Operating temperature range of -25°C to 175°C (TJ)
· Low leakage current of 200μA
· RoHS3 compliant and lead-free
· UL recognized for its high-quality and reliability
Product Applications
· General-purpose overvoltage protection in electronic circuits
· Power line protection in industrial and commercial applications
· Surge protection in automotive and aerospace systems
Product Description
Type | Description |
ANSC PART# | ANSC - SMLVT3V3 |
Category | Circuit Protection Transient Voltage Suppressors (TVS) TVS Diodes |
Mfr | - |
Series | SMLV, TRANSIL™ |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Type | Zener |
Unidirectional Channels | 1 |
Voltage - Reverse Standoff (Typ) | 3.3V |
Voltage - Breakdown (Min) | 4.1V |
Voltage - Clamping (Max) @ Ipp | 10.3V |
Current - Peak Pulse (10/1000µs) | 200A (8/20µs) |
Power - Peak Pulse | 600W |
Power Line Protection | No |
Applications | General Purpose |
Capacitance @ Frequency | 5200pF @ 1MHz |
Operating Temperature | -25°C ~ 175°C (TJ) |
Mounting Type | Surface Mount |
Package / Case | DO-214AA, SMB |
Supplier Device Package | SMB |
Base Product Number | SMLVT3V3 |

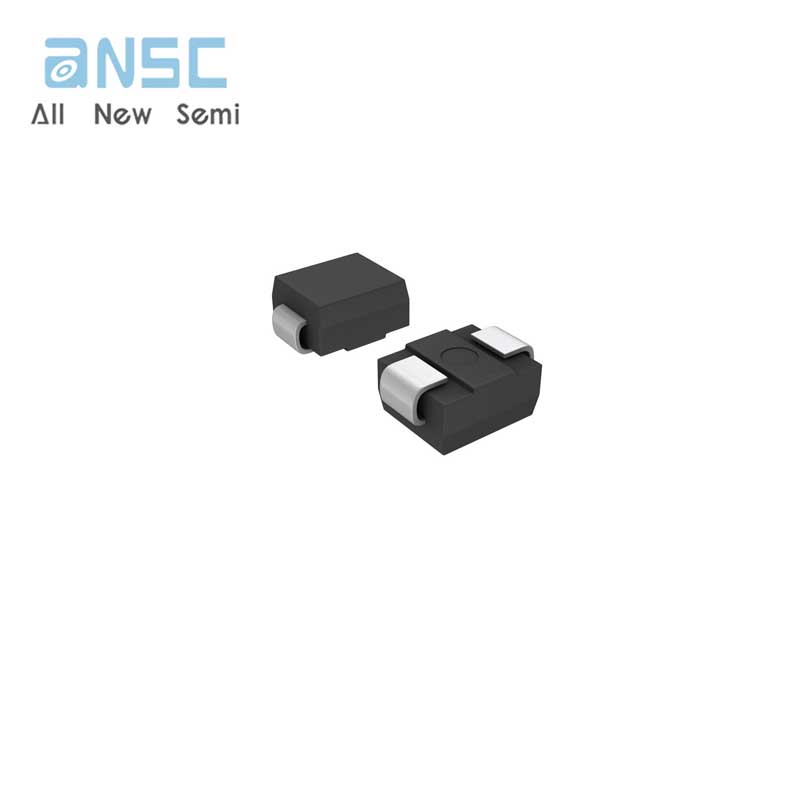

Actual image of the product
