Description
The TPD2E007DCKR is a surface-mount, unidirectional TVS (Transient Voltage Suppressor) diode , designed for general-purpose applications. This device is part of the TPD2E007 family and features a breakdown voltage of 14V, making it suitable for a wide range of electronic systems.
Product Features
Unidirectional TVS diode with a breakdown voltage of 14V
Low capacitance of 15pF
Gold-plated contacts for improved reliability
Compact package with a height of 1.1mm and a length of 2mm
Lead-free and RoHS3 compliant
Operating temperature range of -40°C to 85°C
Peak pulse current of 4.5A and peak pulse power of 210mW
Low leakage current of 50nA
Product Applications
General-purpose applications requiring ESD protection
Automotive electronics
Industrial control systems
Medical devices
Consumer electronics
Product Description
| Type | Description |
| ANSC PART# | ANSC- TPD2E007DCKR |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Type | Zener |
| Bidirectional Channels | 2 |
| Voltage - Reverse Standoff (Typ) | 13V (Max) |
| Voltage - Breakdown (Min) | 14V |
| Voltage - Clamping (Max) @ Ipp | - |
| Current - Peak Pulse (10/1000µs) | - |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SC-70-3 |
| Base Product Number | TPD2E007 |

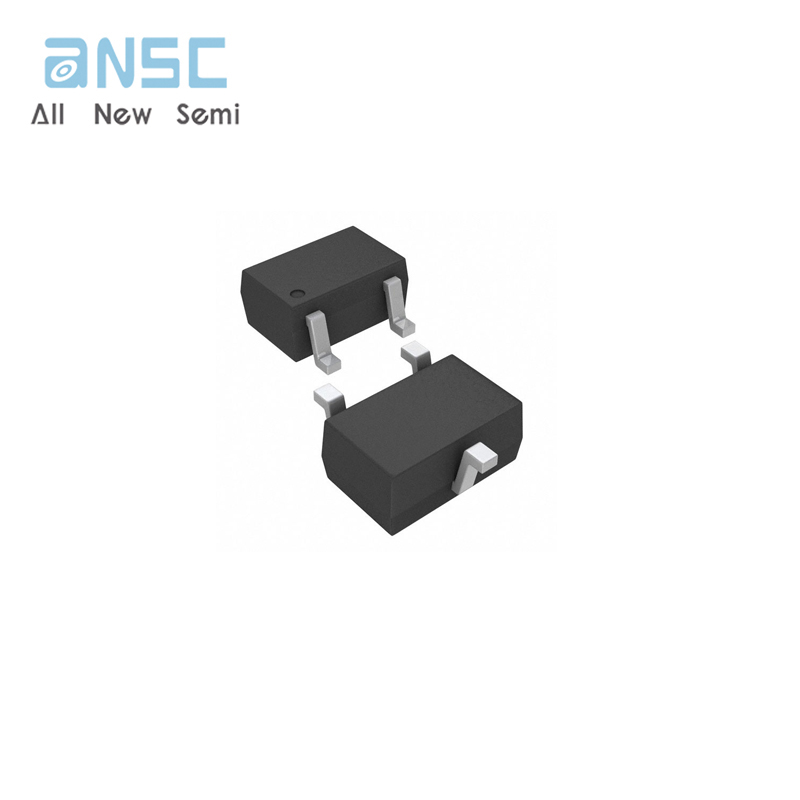

Actual image of the product
