Product Overview
There is a ripple current of 710mA set on the capacitor.As a result of the loss of useful energy in a simple circuit with a resistor and an ideal (perfect) capacitor, equivalent series resistance (ESR) is known as internal resistance.A capacitor's dissipation factor determines how much power is lost when AC is applied through it, and its dissipation factor is 6 %.
Product Features
710mA is the ripple current of the capacitor
the dissipation factor is 6 %
Product Applications
TR3D226M025C0300 applications of tantalum capacitors.
· Computer
· General purpose
· General low power DC/DC and LDO
· Automotive ECU
· ABS
· Airbag systems
· Avionics,
· Industrial control units
· Military / aerospace
· General purpose
Product Description
Type | Description |
ANSC PART# | ANSC - TR3D226M025C0300 |
Category | Capacitors Tantalum Capacitors |
Mfr | - |
Series | TANTAMOUNT™, TR3 |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Capacitance | 22 µF |
Tolerance | ±20% |
Voltage - Rated | 25 V |
Type | Molded |
ESR (Equivalent Series Resistance) | 300mOhm @ 100kHz |
Operating Temperature | -55°C ~ 125°C |
Lifetime @ Temp. | - |
Mounting Type | Surface Mount |
Package / Case | 2917 (7343 Metric) |
Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
Height - Seated (Max) | 0.122" (3.10mm) |
Lead Spacing | - |
Manufacturer Size Code | D |
Ratings | - |
Features | General Purpose |
Failure Rate | - |

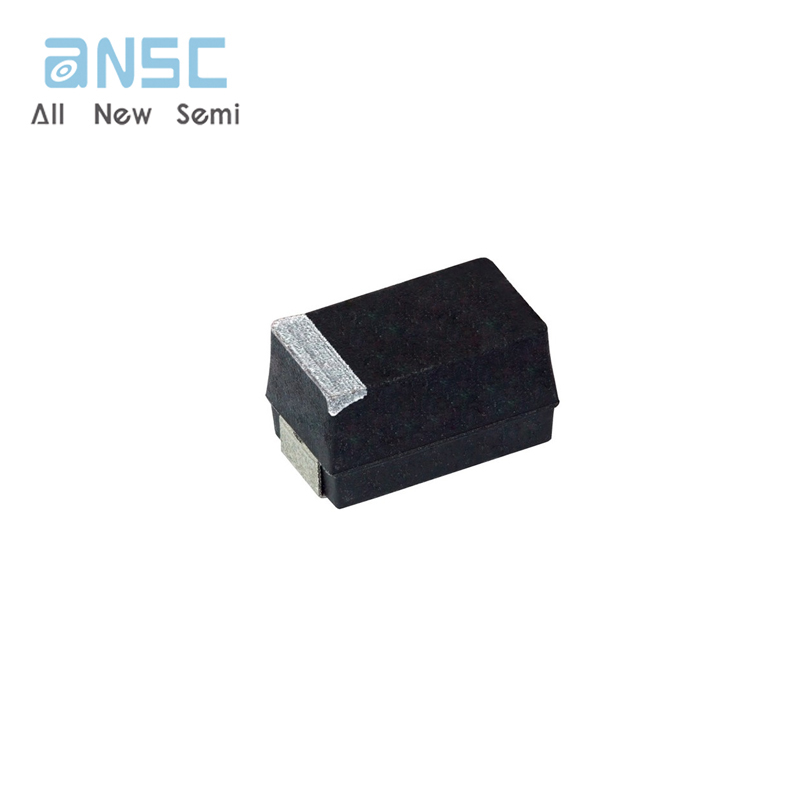

Actual image of the product
