Product Overview
Op amps with either input grounded have a fixed input capacitance parameter, CI, and this device has a 2000 pF @ 20 V maximal input capacitance.To operate this transistor, you will need a 40 V drain to source voltage (Vdss).
Product Features
a 40 V drain to source voltage (Vdss)
Product Applications
ISC036N04NM5ATMA1 applications of single MOSFETs transistors.
Synchronous Rectification for ATX 1 Server I Telecom PSU
Motor drives and Uninterruptible Power Supplies
Micro Solar Inverter
DC/DC converters
Power Tools
Motor Drives and Uninterruptible Power Supples
Synchronous Rectification
Battery Protection Circuit
Telecom 1 Sever Power Supplies
Industrial Power Supplies
Product Description
| Type | Description |
| ANSC PART# | ANSC- ISC036N04NM5ATMA1 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | / |
| Series | OptiMOS™ 5 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 21A (Ta), 98A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 7V, 10V |
| Rds On (Max) @ Id, Vgs | 3.6mOhm @ 49A, 10V |
| Vgs(th) (Max) @ Id | 3.4V @ 23µA |
| Gate Charge (Qg) (Max) @ Vgs | 28 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2000 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 3W (Ta), 63W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TDSON-8 FL |
| Package / Case | 8-PowerTDFN |
| Base Product Number | ISC036N |

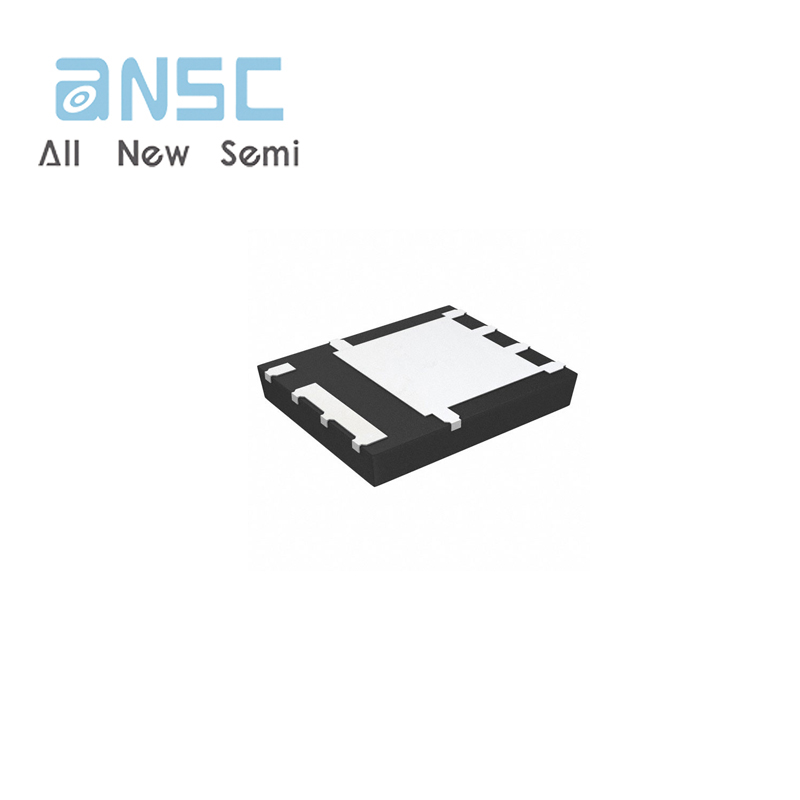

Actual image of the product
