Product Overview
An embedded ac to dc converter is included in TO-261-4, TO-261AA package.Tape & Reel (TR) case is available for the ac dc converter.Surface Mount mounts this AC/DC converter.The ac dc converter needs to be operated at -40°C~150°C TJ °C in order to perform.The AC DC converter utilizes a type SWITCHING REGULATOR analog IC.There is 100kHz switching frequency.Supply voltage (Vcc/Vdd) does not need to exceed 8.5V~10V .As a result, it has a total of 4 terminations.In this ac/dc converter, there are 4 pins.There are 4 pins in total.The ac dc converters are suitable for mounting by Surface Mount .If you select the NCP1012 family, you will be able to search similar acdc converters.550mA is set as the output current.
Product Features
Packaged with TO-261-4, TO-261AA
Switching Frequency at 100kHz
With 4 pins
Output Current at 550mA
Product Applications

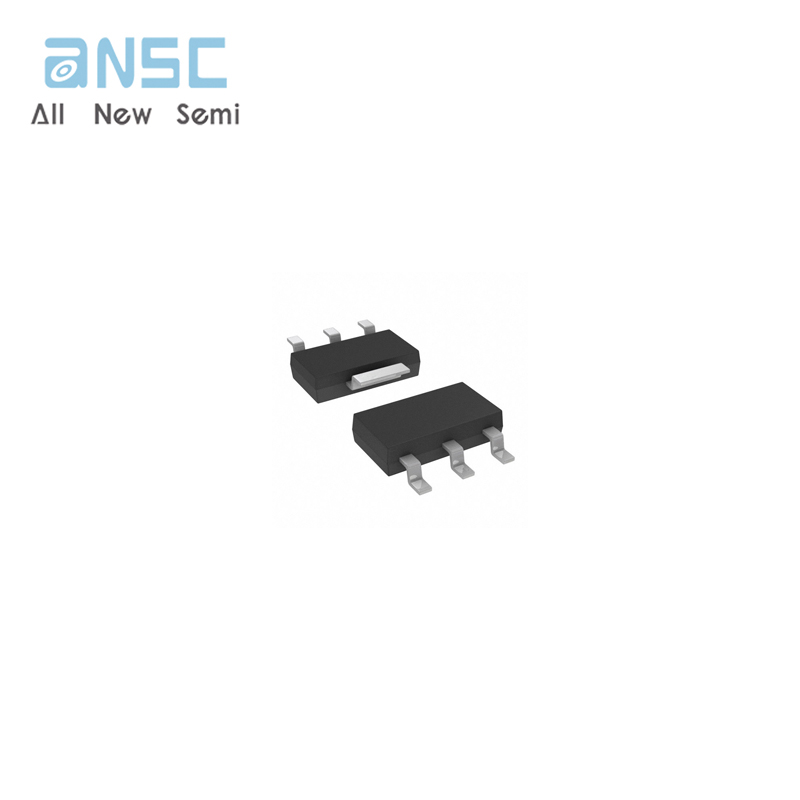

NCP1012ST100T3G AC DC Converters applications.
· Linear Adapter Replacements
· Chargers for cell/cordless phones
· PDAs
· MP3
· Portable audio
· Adapters
· Networking
· Battery Chargers
· Power Adaptors
· Standby Power Supplies
Product Description
| Type | Description |
| ANSC PART# | ANSC- NCP1012ST100T3G |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| AC DC Converters, Offline Switches | |
| Manufacturer | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Obsolete |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 10V |
| Duty Cycle | 67% |
| Frequency - Switching | 100kHz |
| Power (Watts) | 19 W |
| Fault Protection | Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 (TO-261) |
| Mounting Type | Surface Mount |
| Base Product Number | NCP1012 |
