Product Descriptions
The SP6200 and SP6201 are CMOS Low Dropout (LDO) regulators designed to meet a broad range of applications that require accuracy, speed and ease of use.
These LDOs offer extremely low quiescent current which only increases slightly under load, thus providing advantages in ground current performance over bipolar LDOs. The LDOs handle an extremely wide load range and guarantee stability with a 1μF ceramic output capacitor. They have excellent low frequency Power Supply Rejection Ratio (PSRR), not found in other CMOS LDOs and thus offer exceptional Line Regulation. High frequency PSRR is better than 40dB up to 400kHz. Load Regulation is excellent and temperature stability is comparable to bipolar LDOs. An enable feature is provided on all versions.
Both LDOs are available in fixed & adjustable output voltage versions and come in an industry standard 5-pin SOT-23 and small 2X3mm 8-pin DFN packages. A VOUT good indicator is provided on all fixed output versions.
Product Features
• 100mA/200mA Output Current
− SP6200: 100mA – SP6201: 200mA
− Low Dropout Voltage: 160mV @ 100mA
• 2.5V to 6.0V Input Voltage
− Fixed and Adjustable Output Voltage
− 2 PERCENT Output Voltage Accuracy
• Ultra Low Ground Current:
− 200μA @ 200mA & 28μA @ 100μA Load
• Tight Load and Line Regulation
• 78dB PSRR @ 1KHz
• RESET/Power Good Output
• Logic-Controlled Electronic Enable
• Unconditionally Stable with 1μF Ceramic Capacitor
• Current Limit and Thermal Protection
• RoHS Compliant “Green”/Halogen Free 5-Pin SOT23 and 8-Pin DFN Packages
Product Applications
• Battery-Powered Systems
• Medical Equipments
• MP3/CD Players
• Digital Cameras
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SP6201EM5-L-2-5/TR |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Current - Output | 200mA |
| PSRR | 78dB ~ 40dB (100Hz ~ 400Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | SP6201 |

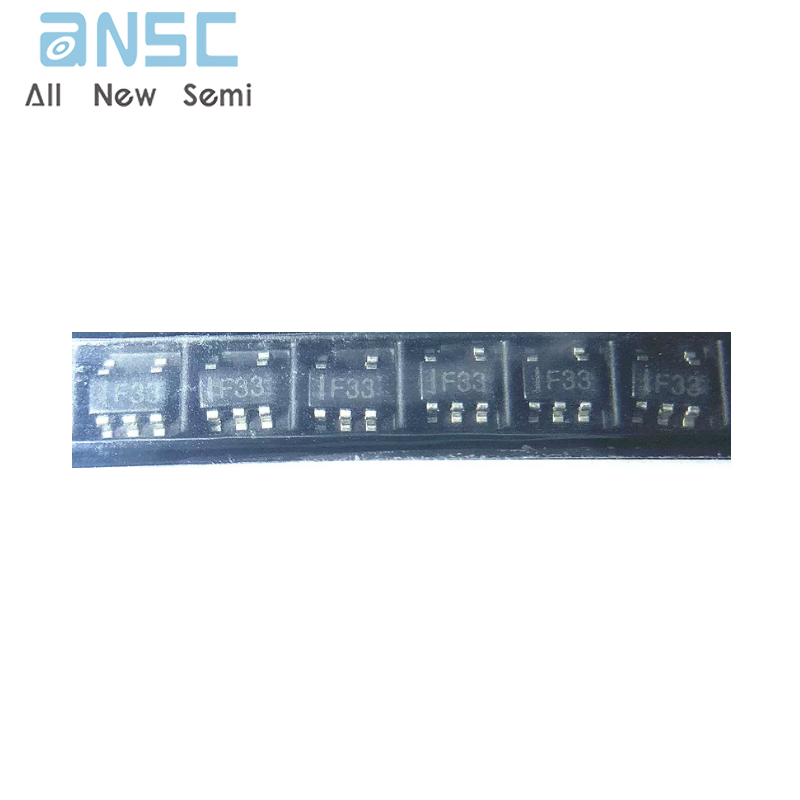

Product Photos
For more product information, please download the PDF
