Product Descriptions

The GS2960 is a multi-rate SDI Receiver which includes complete SMPTE processing, as per SMPTE 425M, 292 and SMPTE 259M-C. The SMPTE processing features can be bypassed to support signals with other coding schemes.

The device features an integrated Reclocker with an internal VCO and a wide Input Jitter Tolerance (IJT) of 0.7UI.

A serial digital loop through output is provided, which can be configured to output either reclocked or non-reclocked serial digital data. The Serial Digital Output can be connected to an external Cable Driver.

The device operates in one of four basic modes: SMPTE mode, DVB-ASI mode, Data-Through mode or Standby mode.

Product Features

• Operation at 2.97Gb/s, 2.97/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s

• Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C and DVB-ASI

• Integrated Reclocker

• Integrated low phase noise VCO

• Serial digital reclocked, or non-reclocked loop-through output

• Ancillary data extraction

• Optional conversion from SMPTE 425M Level B to Level A for 1080p 50/60 4:2:2 10-bit inputs

• Parallel data bus selectable as either 20-bit or 10-bit

• Comprehensive error detection and correction features

• Output H, V, F or CEA 861 Timing Signals

• 1.2V digital core power supply, 1.2V and 3.3V analog power supplies, and selectable 1.8V or 3.3V I/O power supply

• GSPI Host Interface

• -20ºC to +85ºC operating temperature range

• Low power operation (typically 350 mW)

• Small 11mm x 11mm 100-ball BGA package

• Pb-free and RoHS compliant

Product Specification

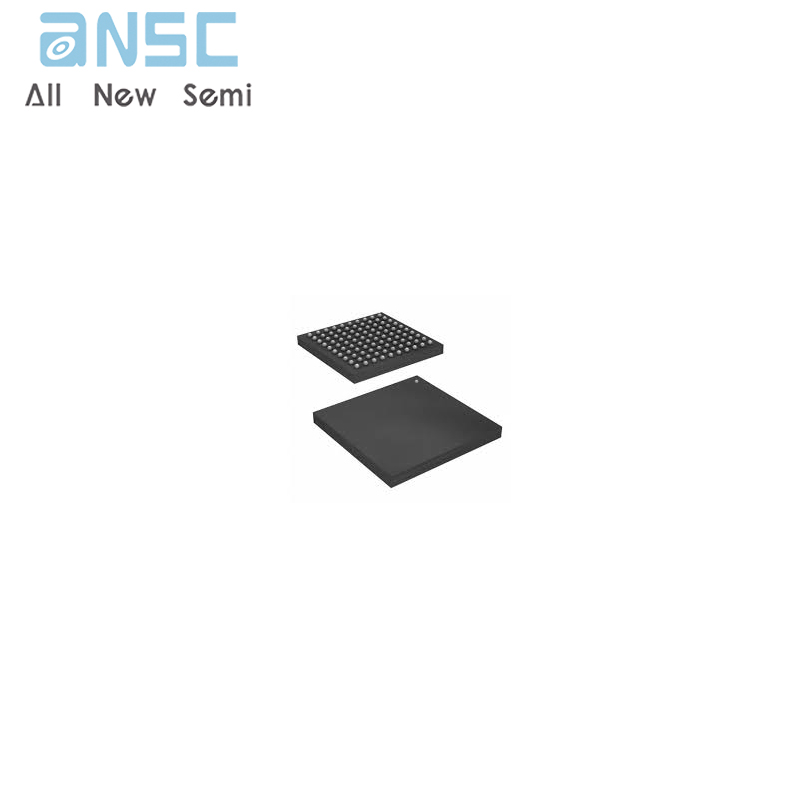

Product Photos

For more product information, please download the PDF
