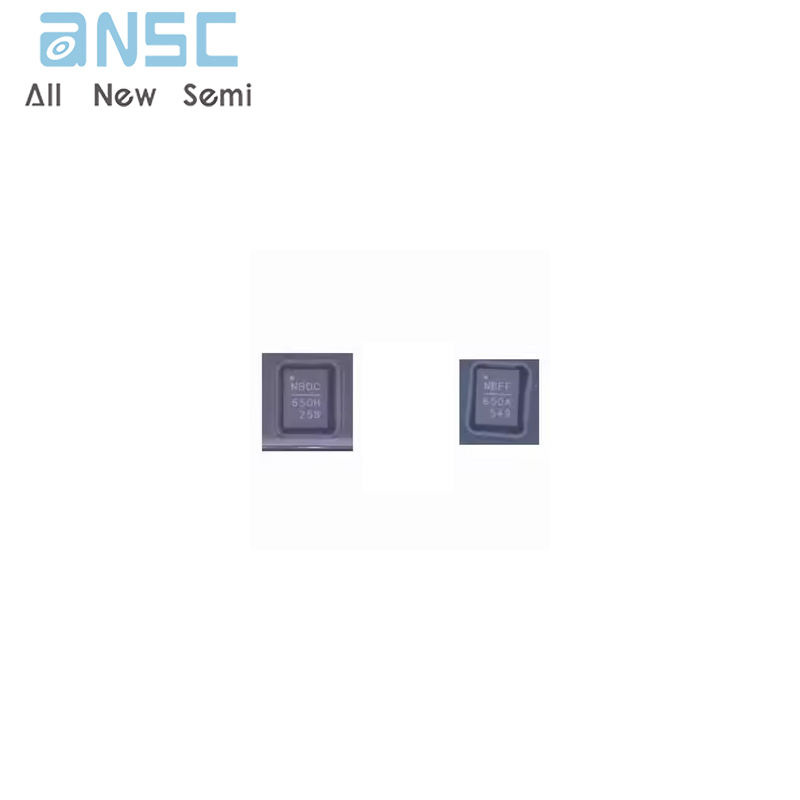

Product Photos
The NB650A is fully-integrated, high-frequency, synchronous, rectified, step-down, switch-mode converters with dynamic-output–voltage control. It offers a very compact solution to achieve 6A of continuous output current over a wide input supply range, and has excellent load and line regulation. The NB650A operates at high efficiency over a wide output-current–load range.
Constant-On-Time control mode provides fast transient response and eases loop stabilization.
2-bit VID inputs support changing the output voltage on-the-fly.
Full protection features include short-circuit protection, over-current protection, over-voltage protection, under-voltage protection, and thermal shut down.
The NB650A requires a minimal number of readily-available standard external components, and is available in a space-saving 3mm×4mm QFN17 package.
Product Features
• Wide 4.5V-to-28V Operating Input Range
• 6A Output Current
• Internal 50mΩ High-Side, 18mΩ Low-Side Power MOSFETs
• Proprietary Switching Loss Reduction Technique
• 1 percent Reference Voltage
• Programmable Soft-Start Time
• 2-bit VID Input
• Soft Shutdown
• Frequency Programmable from 150kHz to 1MHz
• SCP, OCP, OVP, UVP, and Thermal Shutdown
• Optional OCP Protection: Latch-Off Mode
• Output Adjustable from 0.6V to 13V
• Available in QFN17 (3mm×4mm) Package
Product Applications
• Notebook Systems and I/O Power
• Networking Systems
• Digital Set Top Boxes
• Flat-Panel Televisions and Monitors
• Distributed Power Systems
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-NB650AGL-Z |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | - |
| Packaging | Cut Tape (CT) |
| Part Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 22.5V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 13V |
| Current - Output | 6A |
| Frequency - Switching | 150kHz ~ 1MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 17-VFQFN Exposed Pad |
| Supplier Device Package | 17-QFN (3x4) |
| Base Product Number | NB650 |
