Product Descriptions

The MC14024B is a 7−stage ripple counter with short propagation delays and high maximum clock rates. The Reset input has standard noise immunity, however the Clock input has increased noise immunity due to Hysteresis. The output of each counter stage is buffered.

Product Features

• Diode Protection on All Inputs

• Output Transitions Occur on the Falling Edge of the Clock Pulse

• Supply Voltage Range = 3.0 Vdc to 18 Vdc

• Capable of Driving Two Low−power TTL Loads or One Low−power Schottky TTL Load Over the Rated Temperature Range

• Pin−for−Pin Replacement for CD4024B

• Pb−Free Packages are Available

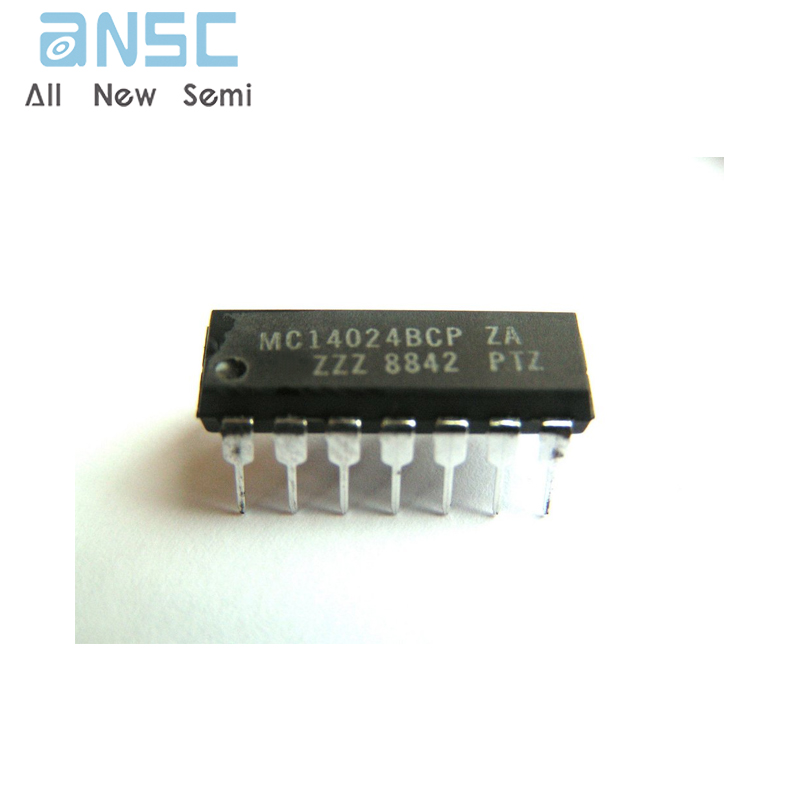

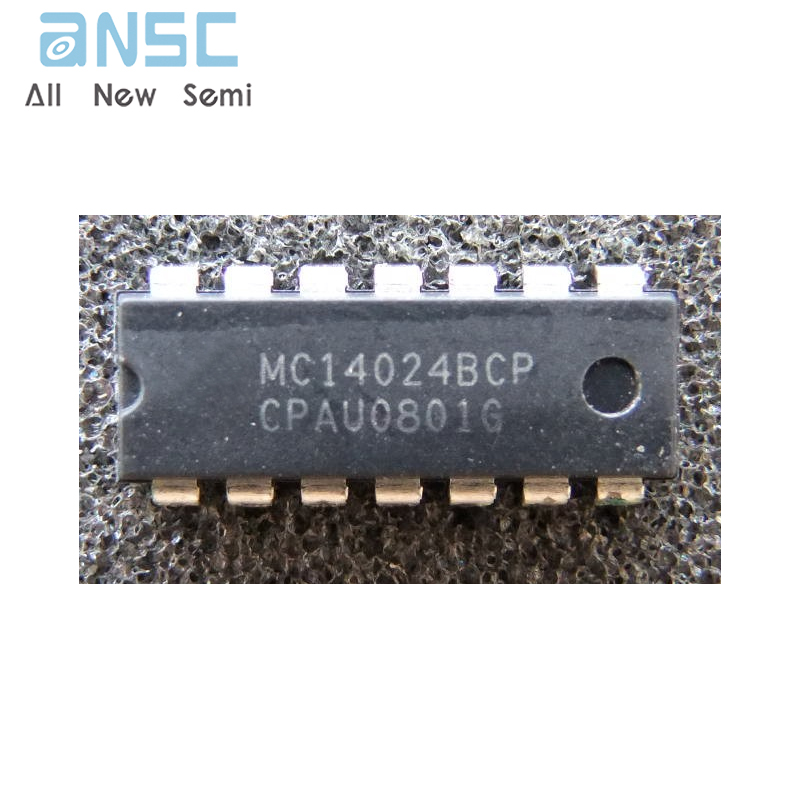

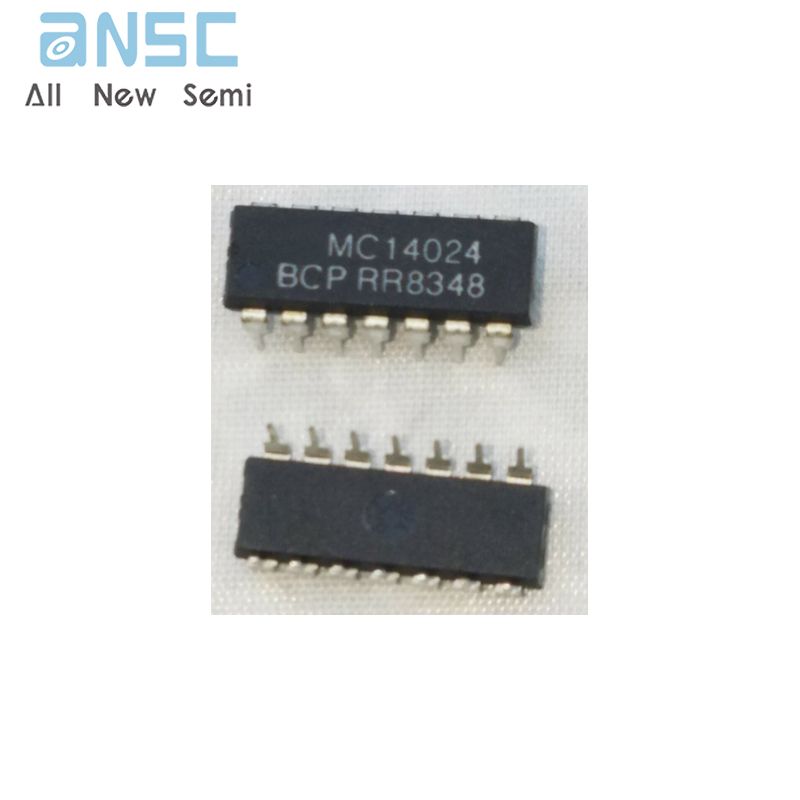

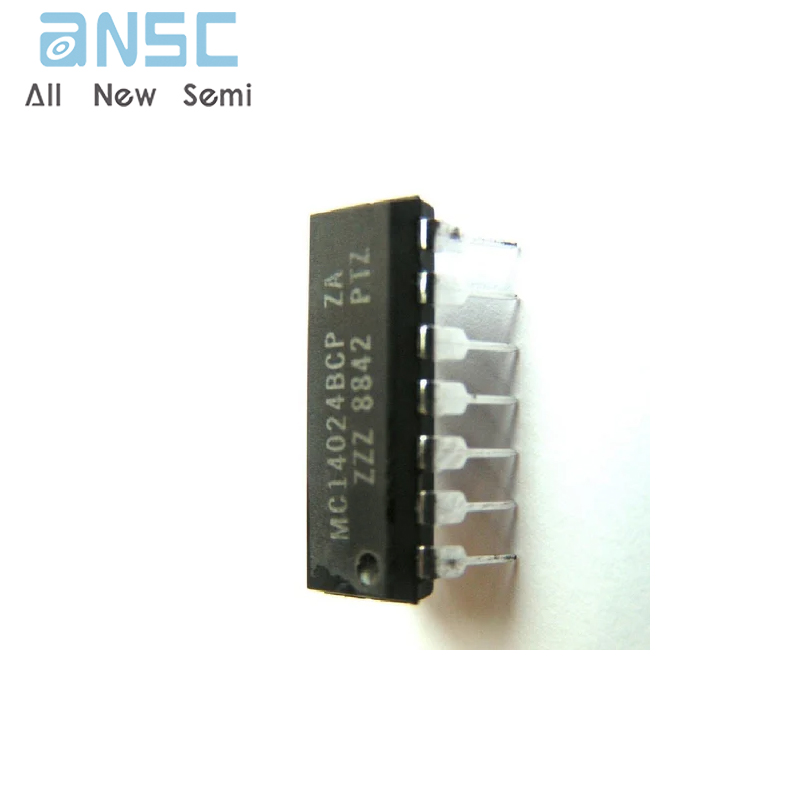

Product Photos

For more product information, please download the PDF
