Product Descriptions

The MC14527B BCD rate multiplier (DRM) provides an output pulse rate based upon the BCD input number. For example, if 6 is the BCD input

number, there will be six output pulses for every ten input pulses. This part may be used for arithmetic operations including multiplication and division. Typical applications include digital filters, motor speed control and frequency synthesizers.

Product Features

• Supply Voltage Range = 3.0 Vdc to 18 Vdc

• Output Clocked on the Negative Going Edge of Clock

• Strobe for Inhibiting or Enabling Outputs

• Enable and Cascade Inputs for Cascade Operation of Two or More DRMs

• “9” Output for the Parallel Enable Configuration and DRMs in Cascade

• Complementary Outputs

• Clear and Set to Nine Inputs

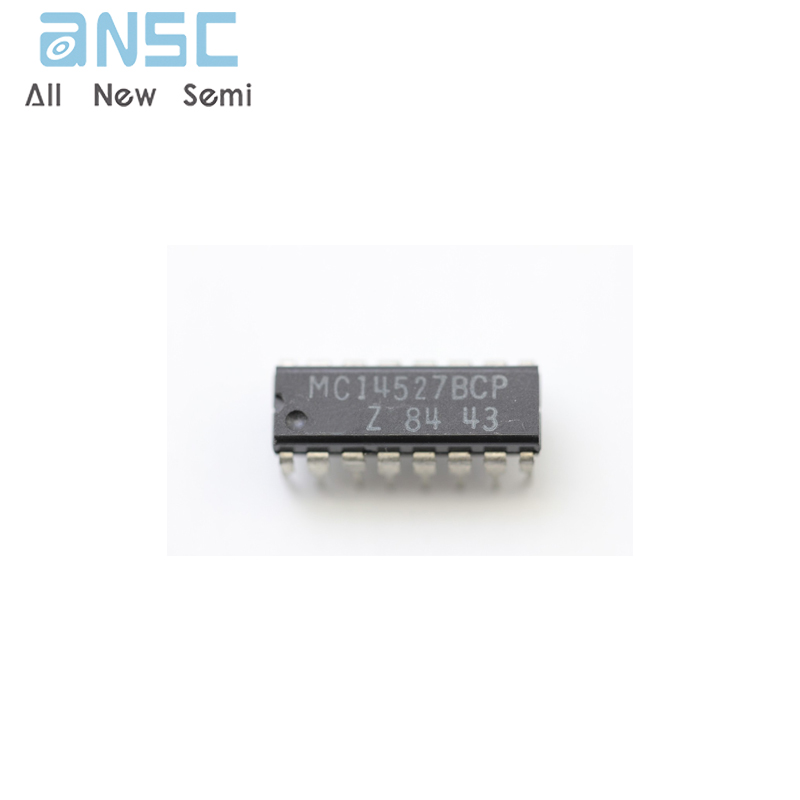

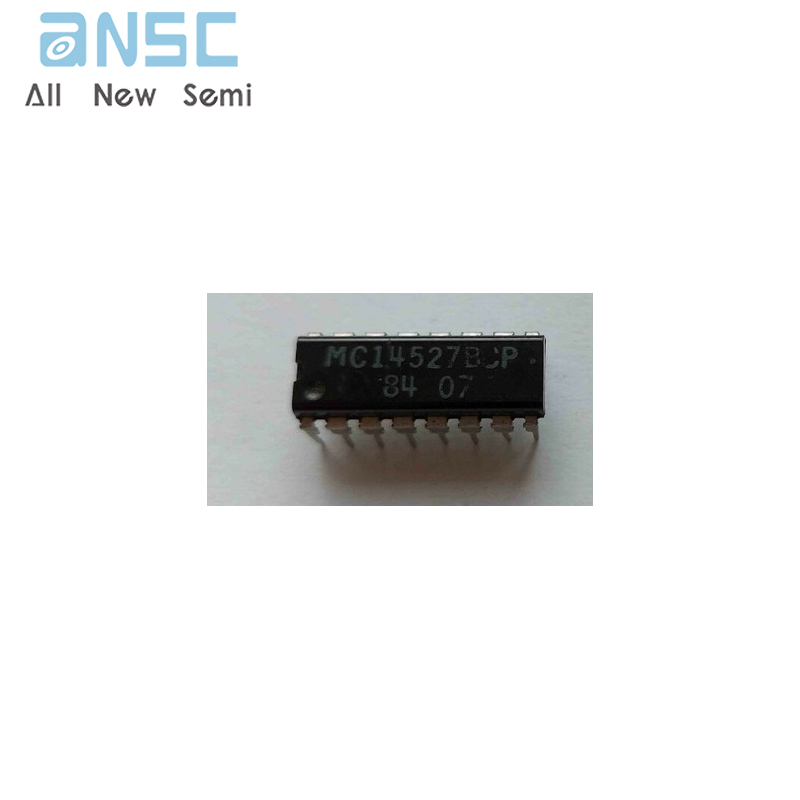

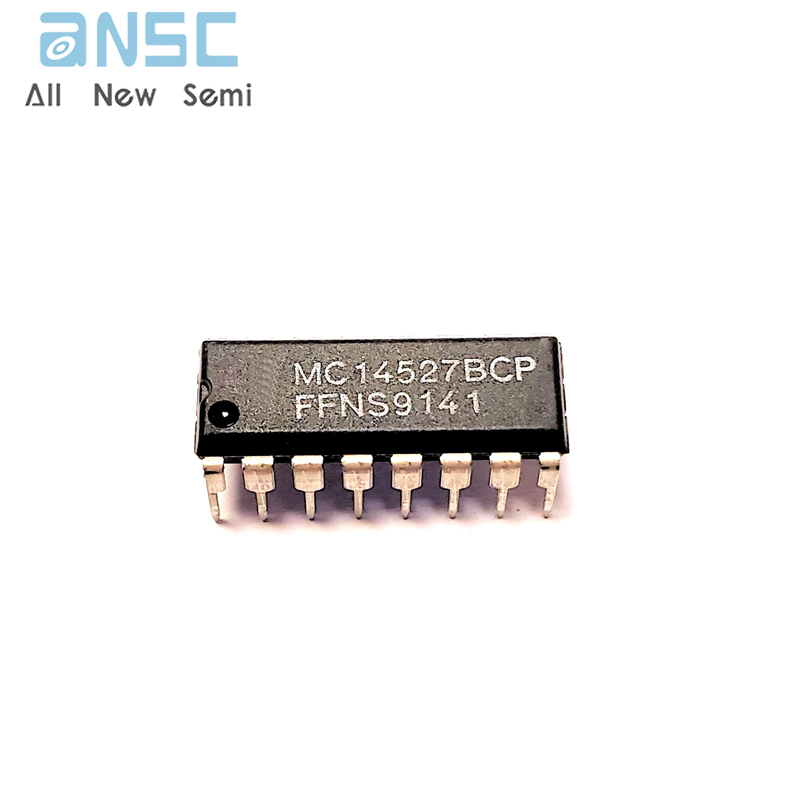

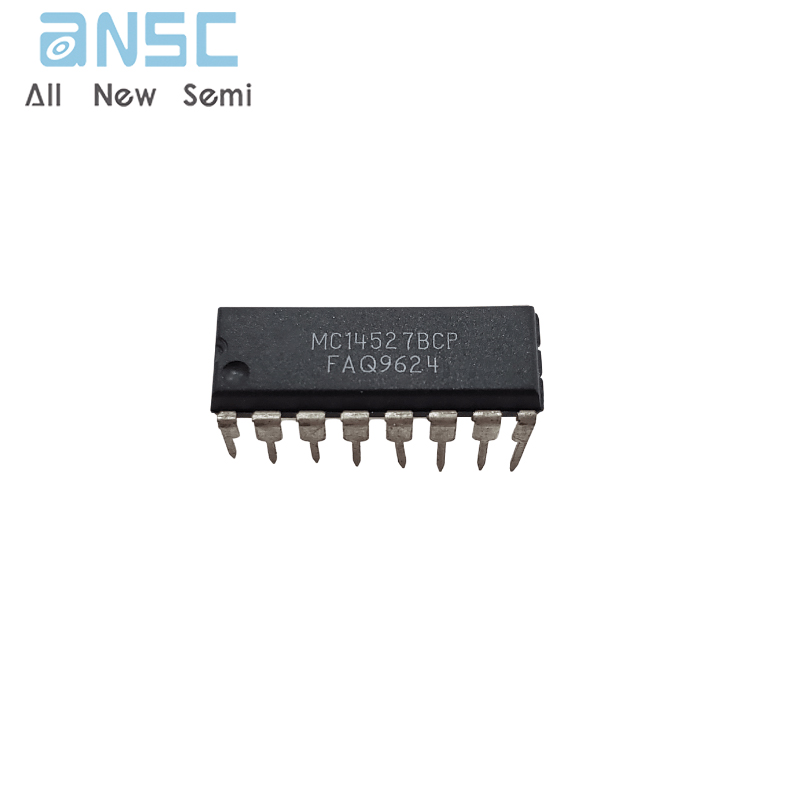

Product Photos

For more product information, please download the PDF
