Product Descriptions

The ZN429 is a monolithic 8-bit D-A converter containing an R-2R ladder network of diffused resistors with precision bipolar switches.

Product Features

■ Linearity Error ±1/2 LSB

■ Single +5V Supply

■ Low Power Consumption 25mW Typical

■ Settling Time 1 Microsecond Typical

■ TTL and 5V CMOS Compatible

■ Designed for Low Cost Applications

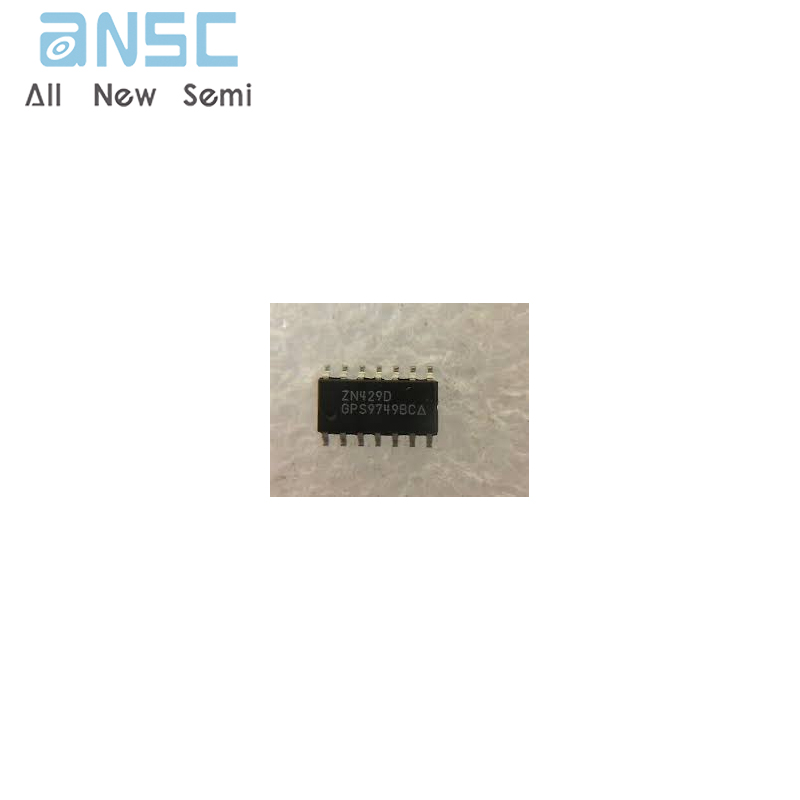

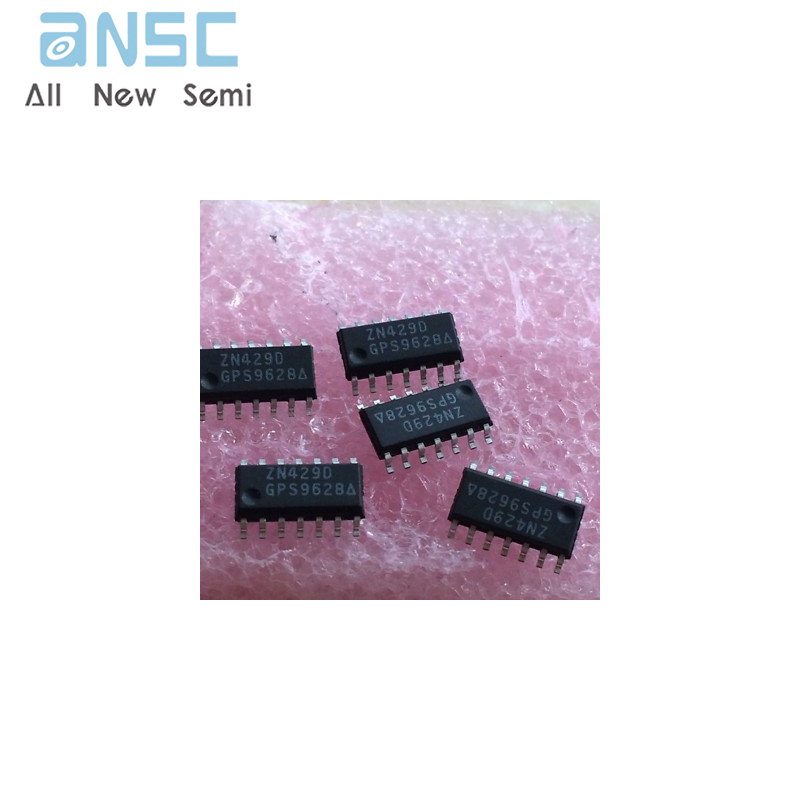

Product Photos

For more product information, please download the PDF
