Product Descriptions
The ADSP-BF531/ADSP-BF532 processors are members of the Blackfin family of products, incorporating the Analog Devices/ Intel Micro Signal Architecture (MSA). Blackfin processors combine a dual-MAC state-of-the-art signal processing engine, the advantages of a clean, orthogonal RISC-like microprocessor instruction set, and single instruction, multiple data (SIMD) multimedia capabilities into a single instruction set architecture.
Product Features
Up to 400 MHz high performance Blackfin processor
Two 16-bit MACs, two 40-bit ALUs, four 8-bit video ALUs,40-bit shifter
RISC-like register and instruction model for ease of programming and compiler-friendly support
Advanced debug, trace, and performance monitoring
0.8 V to 1.2 V core VDD with on-chip voltage regulation
1.8 V, 2.5 V, and 3.3 V compliant I/O
160-ball mini-BGA, 169-ball lead free PBGA, and 176-lead LQFP packages
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ADSP-BF531SBSTZ400 |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| DSP (Digital Signal Processors) | |
| Manufacturer | - |
| Series | Blackfin® |
| Packaging | Tray |
| Part Status | Active |
| Type | Fixed Point |
| Interface | SPI, SSP, UART |
| Clock Rate | 400MHz |
| Non-Volatile Memory | ROM (1kB) |
| On-Chip RAM | 52kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.20V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 176-LQFP |
| Supplier Device Package | 176-LQFP (24x24) |
| Base Product Number | ADSP-BF531 |

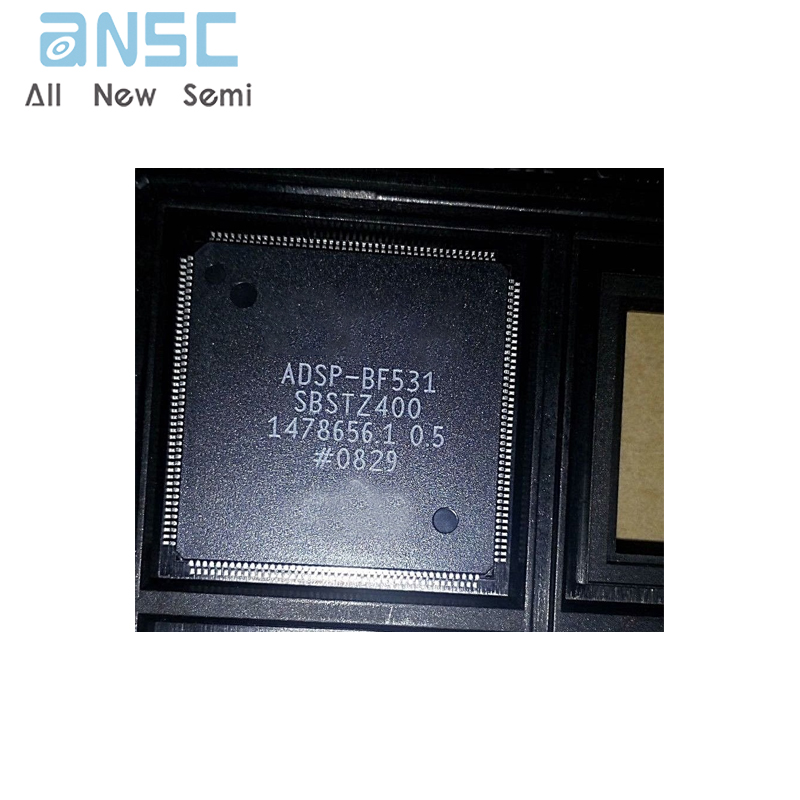

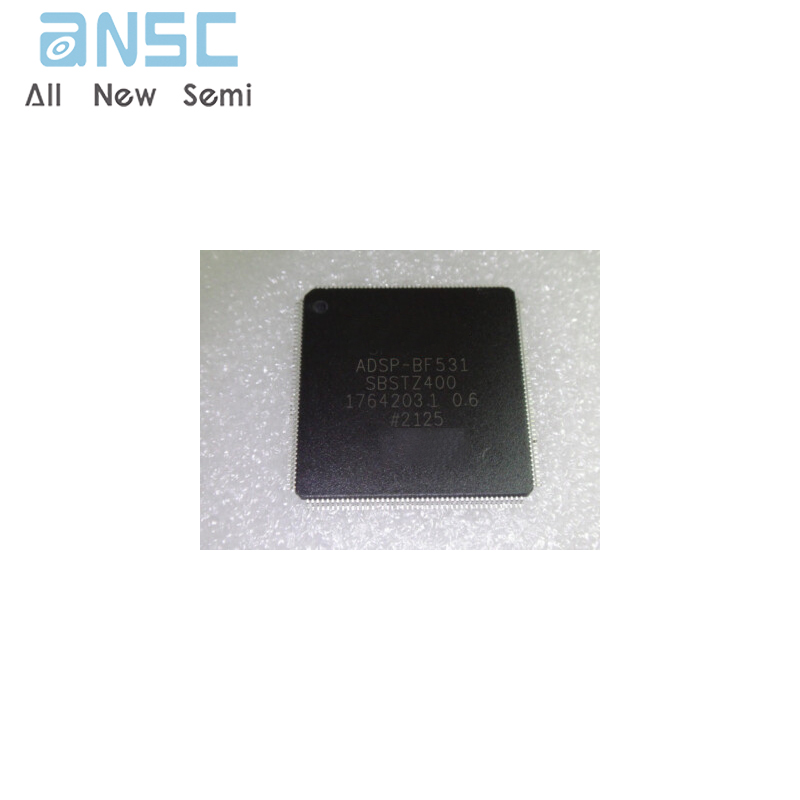

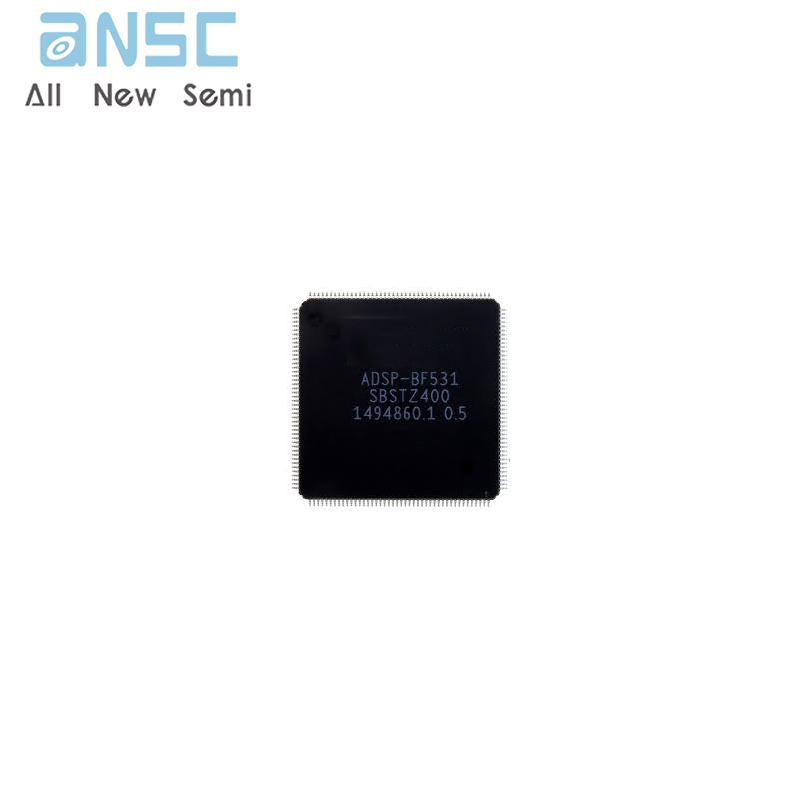

Product Photos
