Product Details
APT13005DI-G1 Overview
In this device, the DC current gain is 8 @ 2A 5V, which is the ratio between the base current and the collector current.Single BJT transistor means that Ic is at Single BJT transistors maximum value (saturated), so the vce saturation(Max) is equal to 900mV @ 1A, 4A.With the emitter base voltage set at 9V, an efficient operation can be achieved.Single BJT transistor contains a transSingle BJT transistorion frequency of 4MHz.Single BJT transistor is possible for the collector current to fall as low as 4A volts at Single BJT transistors maximum.
APT13005DI-G1 Features
the DC current gain for this device is 8 @ 2A 5V
the vce saturation(Max) is 900mV @ 1A, 4A
the emitter base voltage is kept at 9V
a transition frequency of 4MHz
APT13005DI-G1 Applications
There are a lot of Diodes Incorporated
APT13005DI-G1 applications of single BJT transistors.
-
Inverter
-
Interface
-
Driver
-
Muting
Product Description
| Type# | Description |
| ANSC PART# | ANSC -APT13005DI-G1 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | - |
| Series | - |
| Packaging | Bulk |
| Part Status | Obsolete |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 4 A |
| Voltage - Collector Emitter Breakdown (Max) | 450 V |
| Vce Saturation (Max) @ Ib, Ic | 900mV @ 1A, 4A |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 8 @ 2A, 5V |
| Power - Max | 25 W |
| Frequency - Transition | 4MHz |
| Operating Temperature |
-65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-251-3 Short Leads, IPAK, TO-251AA |
| Supplier Device Package | TO-251 |
| Base Product Number | APT13005 |

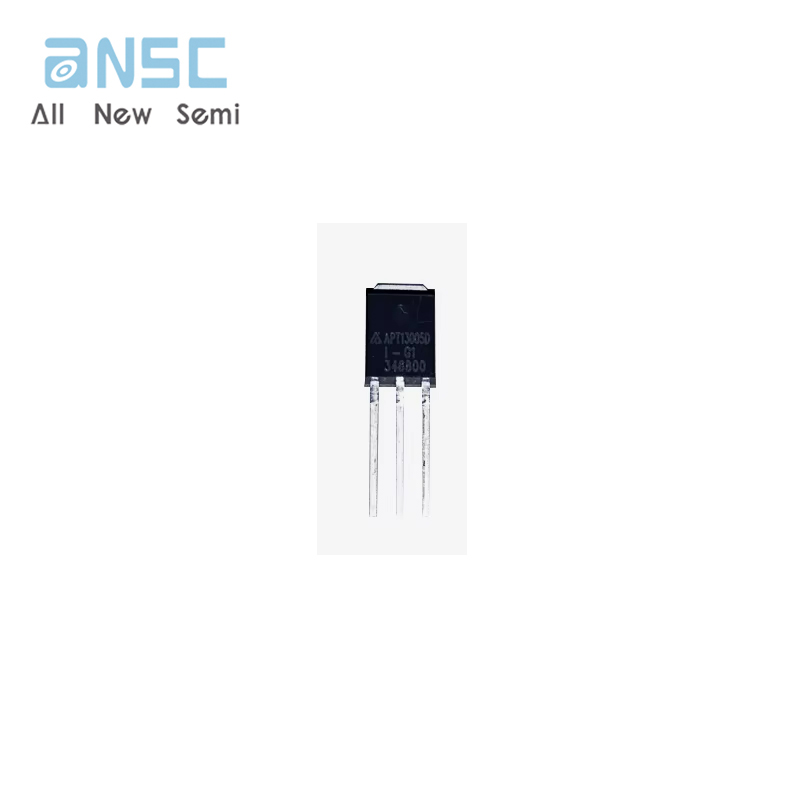

Product Photos
Payment&Transportation
Official Certificate&Certificate

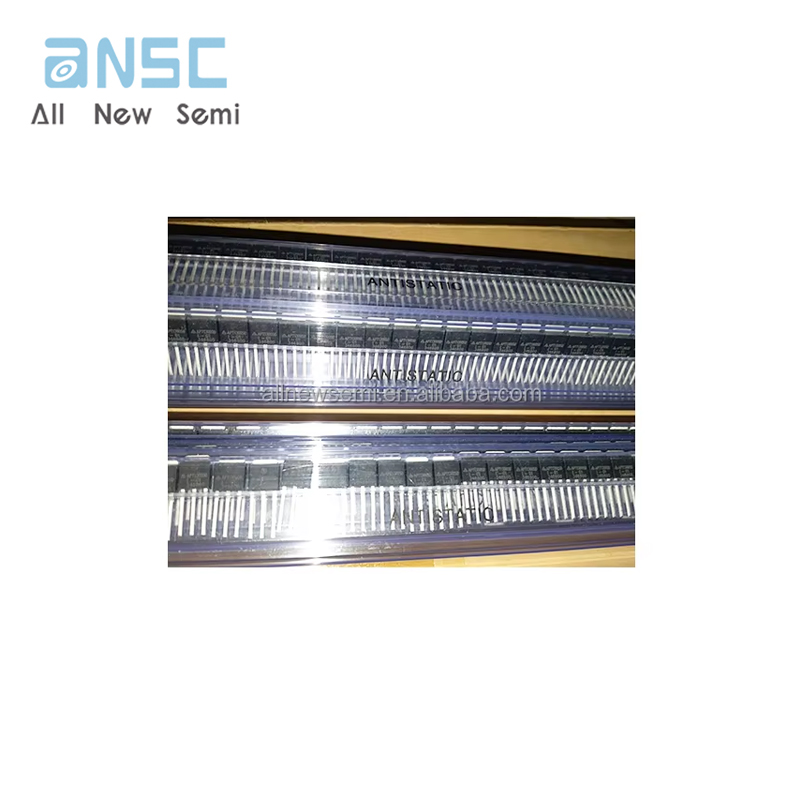

Standard packaging
