Product Description:
The AQ4020-01FTG-C is a surface-mount, bidirectional TVS (Transient Voltage Suppressor) diode. designed for automotive and industrial applications. This device features low capacitance, making it suitable for high-frequency applications such as CAN, Ethernet, and USB. The AQ4020-01FTG-C is part of the SPA series, which meets the AEC-Q101 standard for automotive electronics.
Features:
-
Low Capacitance: The AQ4020-01FTG-C has a capacitance of 2.5pF at 1MHz, making it ideal for high-frequency applications.
-
Bidirectional Protection: The device provides protection against both positive and negative voltage transients.
-
High Power Handling: The AQ4020-01FTG-C can handle peak pulse power of up to 735W.
-
Wide Operating Temperature Range: The device operates from -40°C to 150°C, making it suitable for a wide range of applications.
-
RoHS Compliance: The AQ4020-01FTG-C is compliant with RoHS3 standards, ensuring environmental sustainability.
Applications:
-
Primary Applications: Automotive, CAN, Ethernet, and USB applications where high-frequency and high-power protection is required.
-
Secondary Applications: Other industrial applications where low capacitance and high-power handling are necessary.
-
Product Description
| Type# | Description |
| PART# | AQ4020-01FTG-C |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Original |
| Series |
AQ4020, SPA® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 3.5V |
| Voltage - Clamping (Max) @ Ipp | 24.5V (Typ) |
|
Current - Peak Pulse (10/1000µs) |
30A (8/20µs) |
| Power - Peak Pulse | 735W |
| Power Line Protection | No |
| Applications | CAN, Ethernet, USB |
| Capacitance @ Frequency | 2.5pF @ 1MHz |
| Operating Temperature |
-40°C ~ 150°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Base Product Number | AQ4020 |

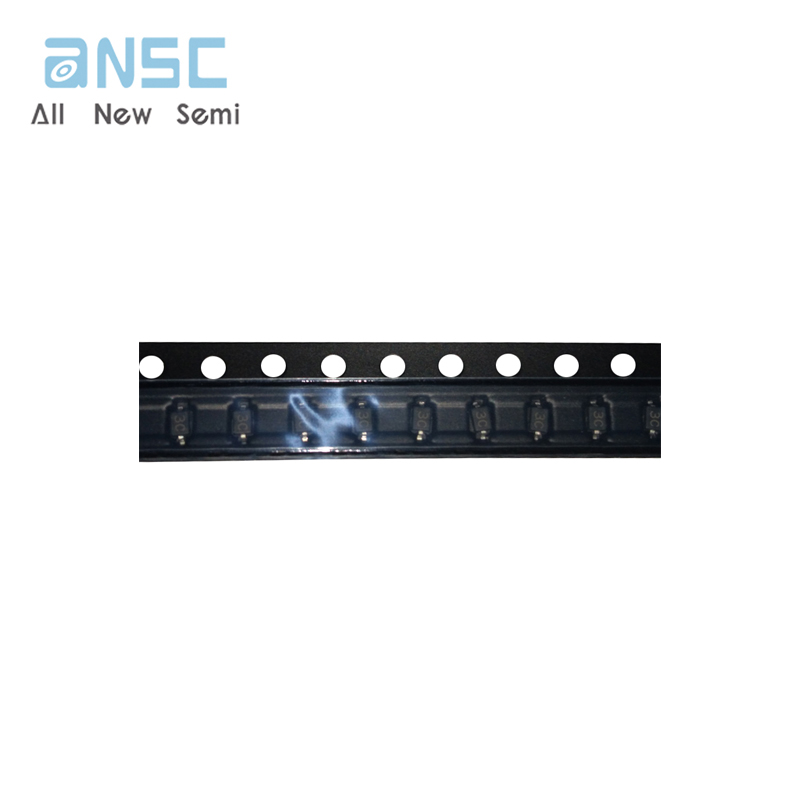

Actual image of the product
