Product Details
Features
• Voltage rating of 100V to 630V with capacitance range up to 15μF.
• High capacitance has been achieved through precision technologies that enable the use
of multiple thinner ceramic dielectric layers.
• Low residual inductance assures superior frequency characteristics.
• Excellent DC Bias properties.
• A lineup with wide-ranging rated voltages that enables selections that are suitable for needs.
Applications
• Snubber in power supply
• Electric flash circuits in digital still camera
• Power factor improvement
• Input-output filter in power supply
• Driver circuit in plasma display
• Noise bypass
Product Description
|
Type |
Description |
|---|---|
| PART# | C5750X7T2E225M250KA |
|
Category |
Capacitors Ceramic Capacitors |
|
Mfr |
/ |
|
Series |
C |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Not For New Designs |
|
Capacitance |
2.2 µF |
|
Tolerance |
±20% |
|
Voltage - Rated |
250V |
|
Temperature Coefficient |
X7T |
|
Operating Temperature |
-55°C ~ 125°C |
|
Features |
- |
|
Ratings |
- |
|
Applications |
General Purpose |
|
Failure Rate |
- |
|
Mounting Type |
Surface Mount, MLCC |
|
Package / Case |
2220 (5750 Metric) |
|
Size / Dimension |
0.224" L x 0.197" W (5.70mm x 5.00mm) |
|
Height - Seated (Max) |
- |
|
Thickness (Max) |
0.110" (2.80mm) |
|
Lead Spacing |
- |
|
Lead Style |
- |

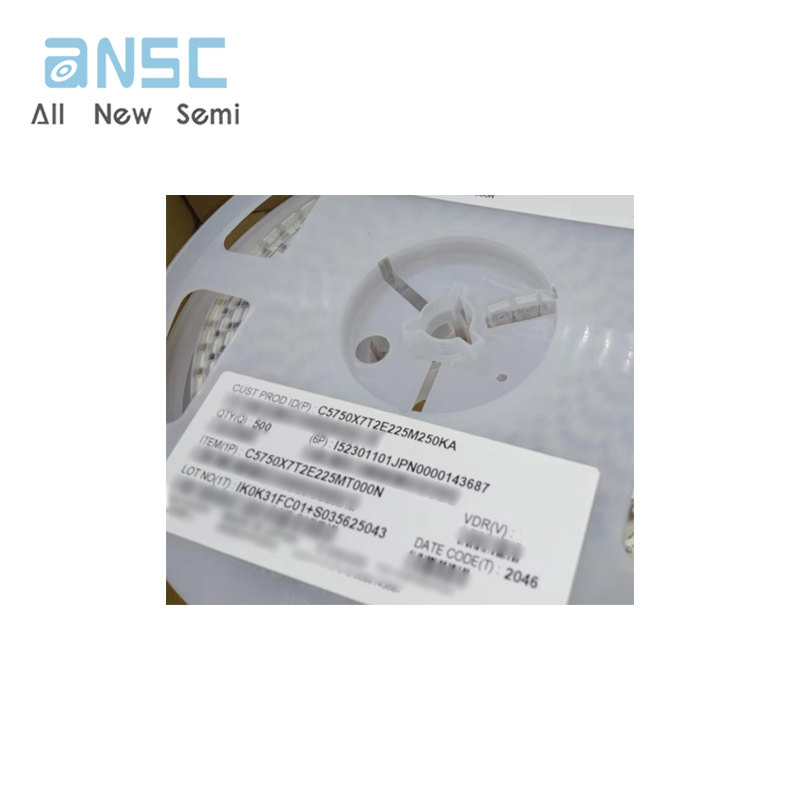

Actual image of the product
