Product Features
Large bright, uniform light-emitting areas
Choice of colors
Categorized for light output
Yellow and green categorized for dominant wavelength
Excellent ON-OFF contrast
X-Y stackable
Flush mountable
Can be used with panel and legend mounts
Light-emitting surface suitable for legend attachment
per Application Note 1012
HLCP-x100 series designed for low current operation
Bicolor devices available
Product Applications
Business machine message annunciators
Telecommunications indicators
Front panel process status indicators
PC board identifiers
Bar graphs
Product Description
TYPE | DESCRIPTION |
|---|---|
ANSC PART# | ANSC - HLMP-2350 |
Category | Optoelectronics Circuit Board Indicators, Arrays, Light Bars, Bar Graphs |
Manufacturer | Original |
Series | HLMP-2350 |
Packaging | Tube |
Part Status | Active |
Color | Red |
Wavelength - Peak | 634nm |
Configuration | Bar - Single, SIP |
Current | 30mA |
Millicandela Rating | 45mcd |
Viewing Angle | - |
Lens Type | - |
Lens Style | Rectangle with Flat Top |
Lens Size | 19.05mm x 3.81mm |
Voltage Rating | 2V |
Mounting Type | Through Hole |
Base Product Number | HLMP-2350 |

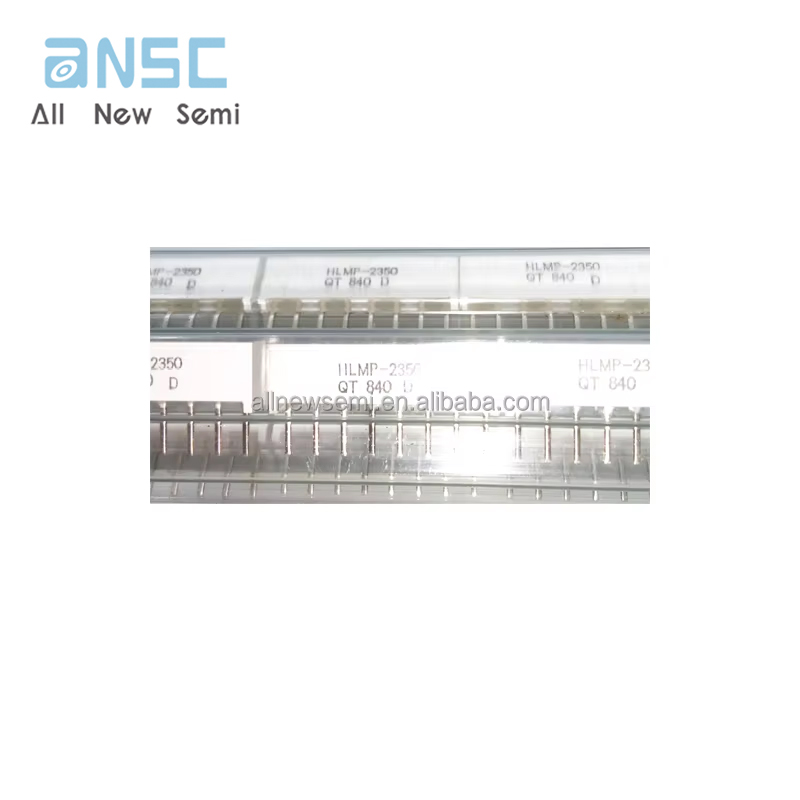

Actual image of the product

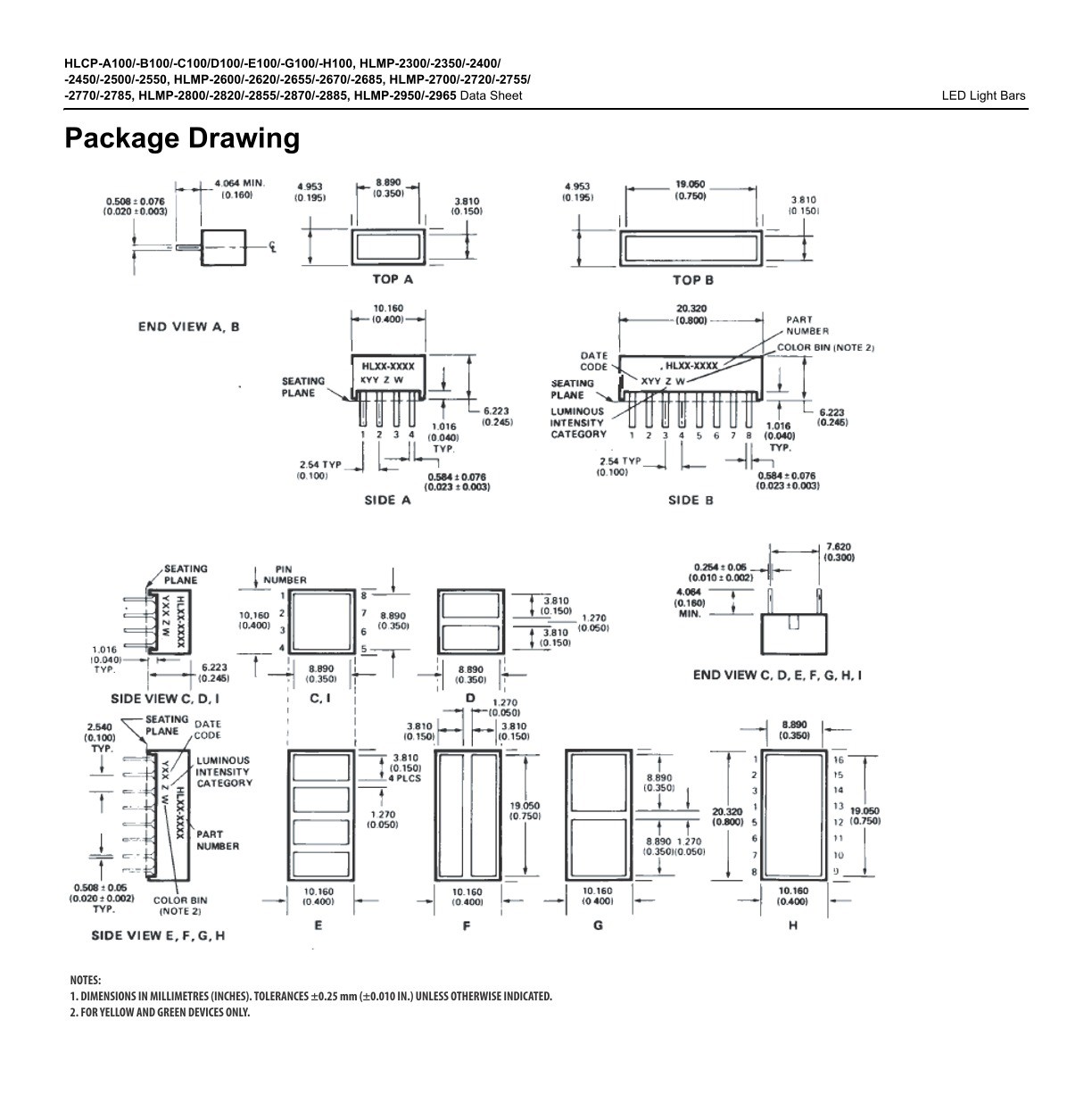

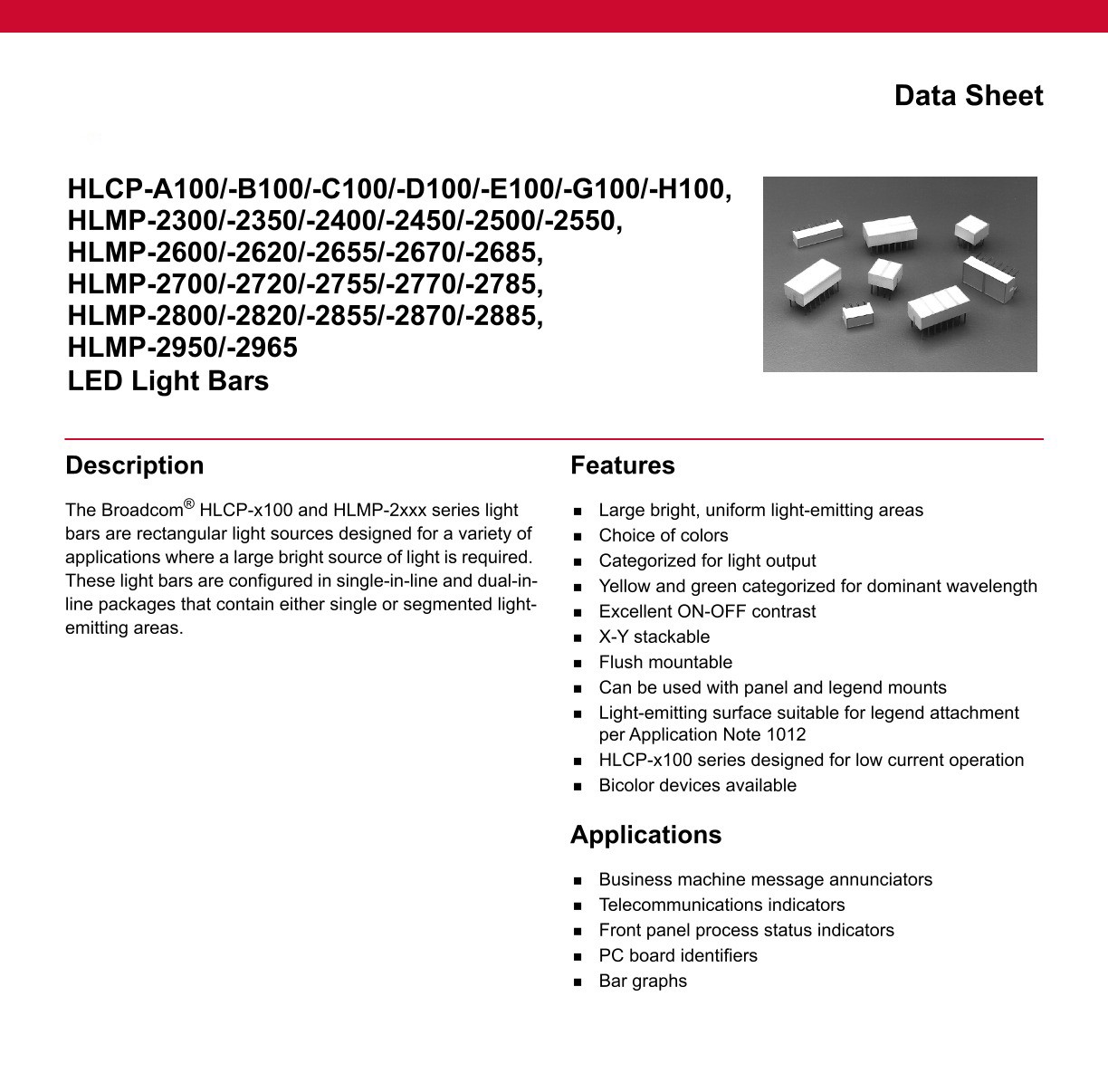

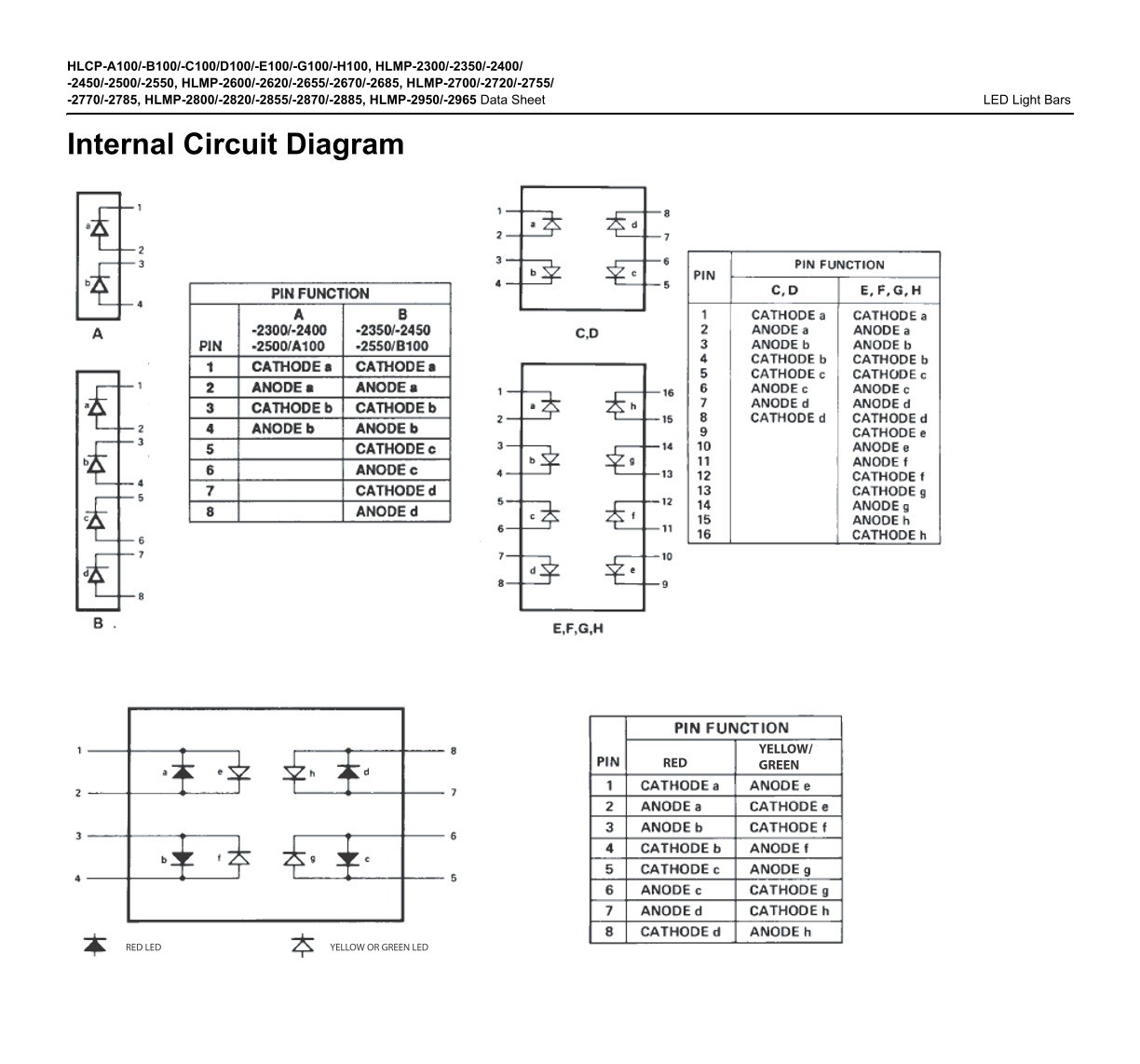

Product datasheet
For more information, please download
