Product Details
| Description Fifth Generation HEXFET® Power MOSFETs from International Rectifier utilize advanced processing techniques to achieve the lowest possible on resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient device for use in a wide variety of applications. ● Logic-Level Gate Drive ● Surface Mount (IRLR024N) ● Straight Lead (IRLU024N) ● Advanced Process Technology ● Fast Switching ● Fully Avalanche Rated |
Product Description
| Type | Description |
| ANSC PART# | ANSC - IRLU024N |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Original |
| Series | HEXFET® |
| Packaging | Tube |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 55 V |
| Current - Continuous Drain (Id) @ 25°C | 17A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 15 nC @ 5 V |
| Vgs (Max) | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 480 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 45W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Supplier Device Package | IPAK |
| Package / Case | TO-251-3 Short Leads, IPAK, TO-251AA |

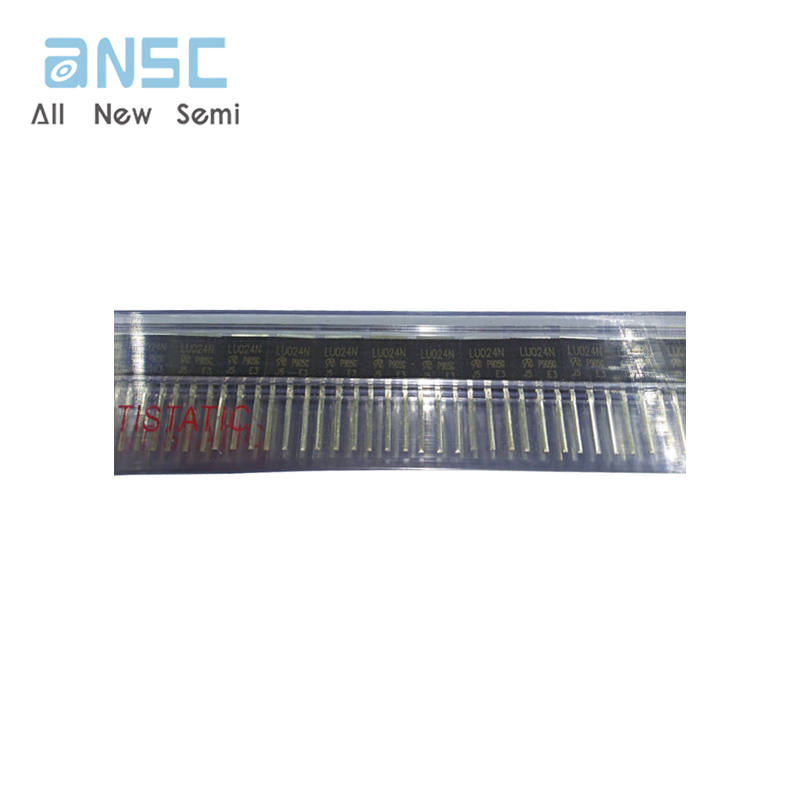

Actual image of the product

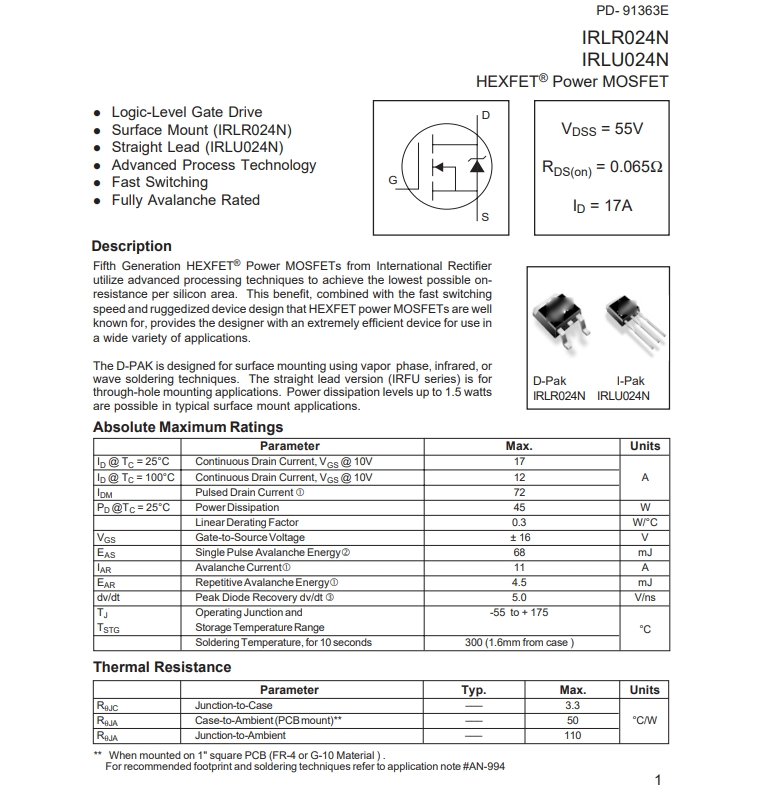

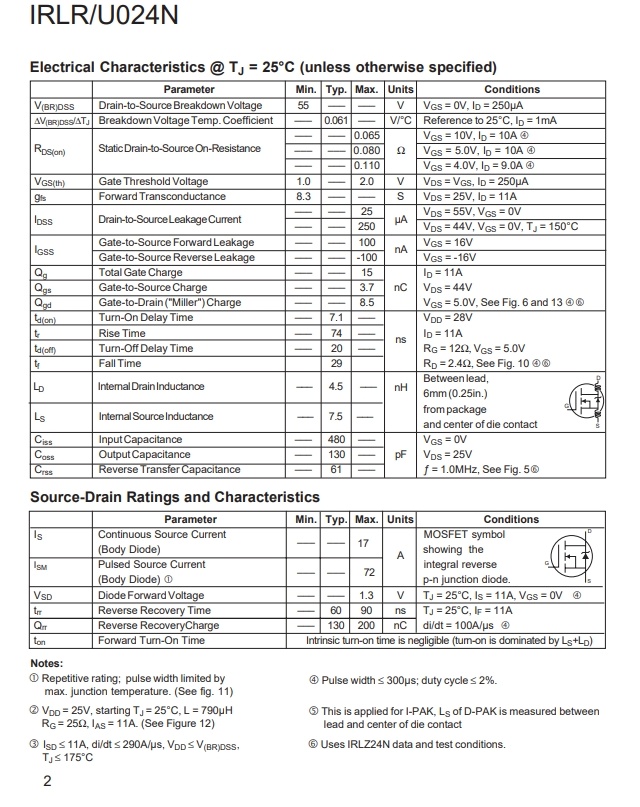

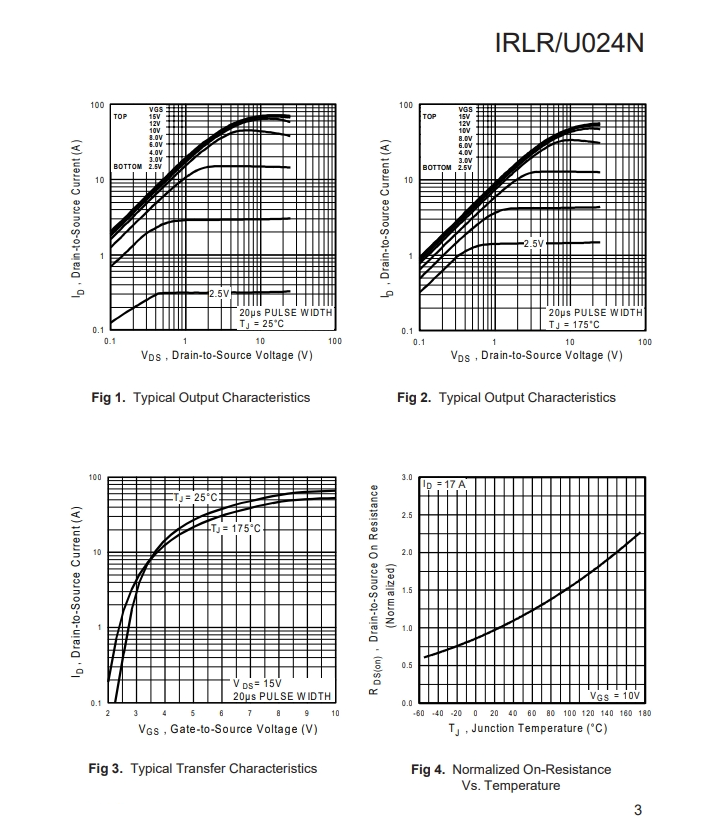

Product datasheet
For more information, please download
