Product Details
|
Description and Applications The MA4E1340 series is a silicon medium barrier schottky diode suitable for use in mixer, detector and limiter circuits. These diodes are also suitable for usage in anti-parallel, shunt power surge protection circuits for 50 Ω and 75 Ω systems. Features • RF & Microwave Medium Barrier Silicon 70 V Schottky Diode • Available as Single Diode, Series Pair or Unconnected Pair Configurations. • Low Profile Surface Mount Plastic Package • Lead Free (RoHS Compliant) Equivalents Available With 260 Deg. C Reflow Capability |
Product Description
| Type | Description |
| ANSC PART# | ANSC - MA4E1340A1-1141T |
| Category | Discrete Semiconductor Products |
| Diodes | |
| RF Diodes | |
| Manufacturer | Original |
| Series | MA4E1340 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Diode Type | Schottky - Single |
| Voltage - Peak Reverse (Max) | 70V |
| Current - Max | 200 mA |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
| Resistance @ If, F | - |
| Power Dissipation (Max) | 250 mW |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Base Product Number | MA4E1340 |

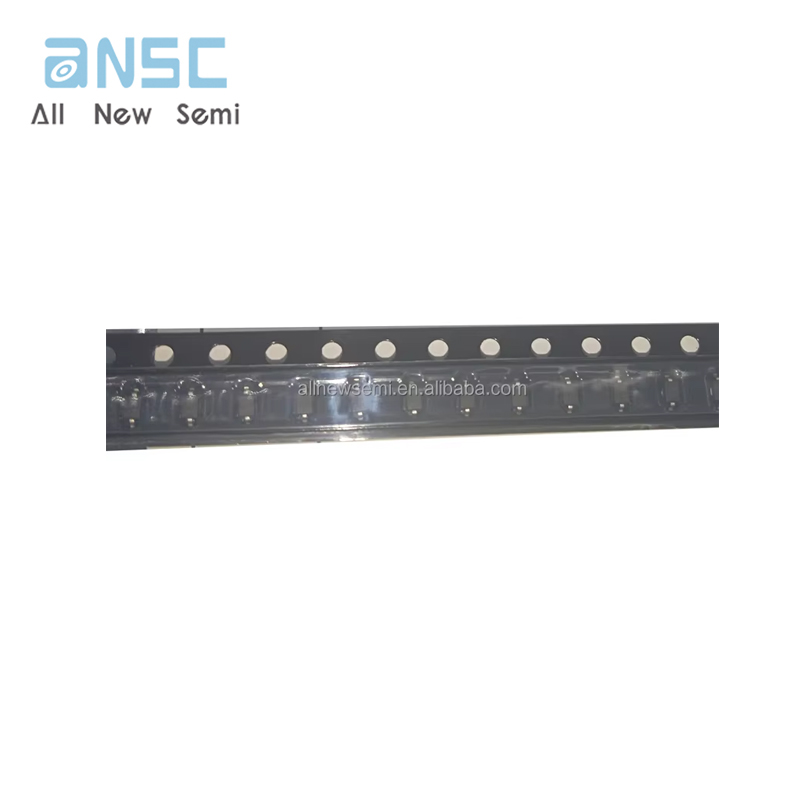

Product Photos

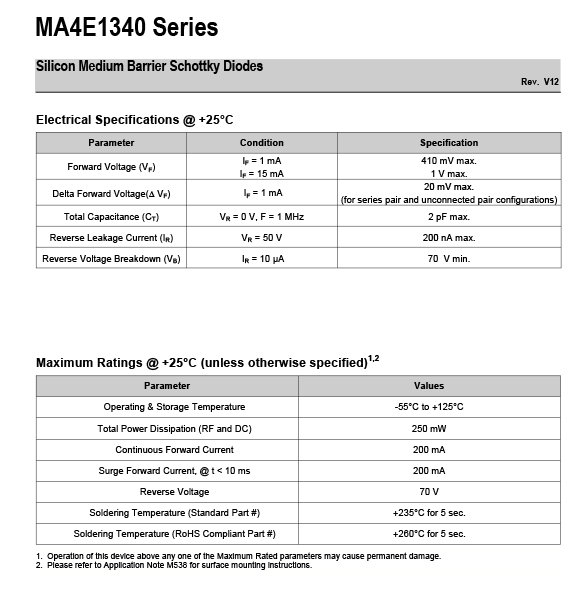

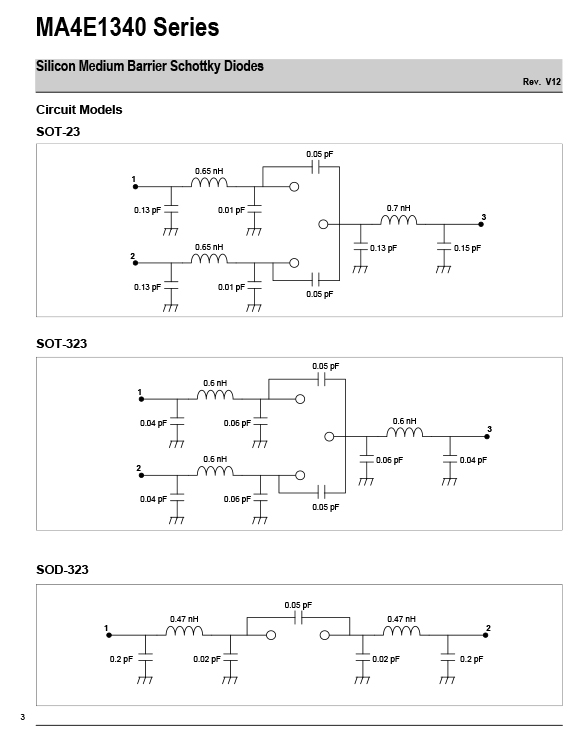

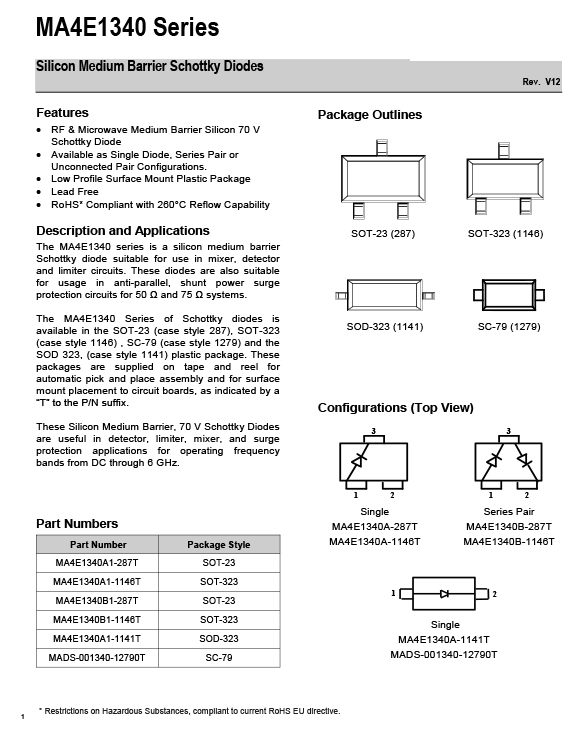

Product datasheet
For more information, please download
